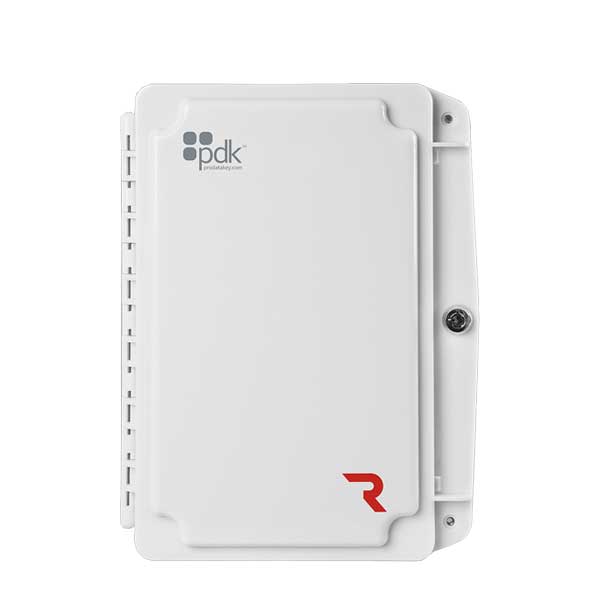

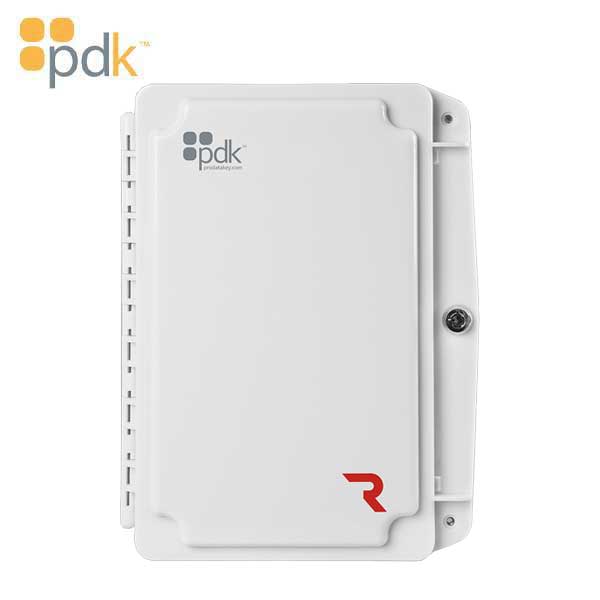

PDK - RED Gate - High-Security Outdoor Controller (Ethernet)
PDK-GCE
Keep Gates and Garages Secure.
Built with ethernet connectivity, self-discovery, sampling IP configuration and functionality. Equipped with OSDP, an onboard power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health. Additional plug-and-play power options are available by simply purchasing a Red PoE++ Module Kit.
Model PN: RGE - High-Security Outdoor Controller (Ethernet)
RED Gate Features
Advanced Security ProdataKey RedTM products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
Power Monitoring Equipped with an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
Plug n’ Play Connectivity All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.
Self Discoverable The Red Gate will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
Eliminate Trenching Protecting access to gates and exposed areas has never been easier or more cost-effective. Because of our WiMACTM wireless capabilities, the gate io eliminates the substantial expenses associated with trenching.
System Scalability Whether you need two doors or a thousand, the PDK Red Gate Controller gives you the flexibility to add more doors anytime, anywhere, on any device.
IMPORTANT: A PDK - Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.
Specifications:
| Connections: | Removable Screw-down Terminals Built-in Power Supply Industrial-grade 2A Form-C Relays (2) Reader Input (2) Input A (2) Input B (2) |
| Communication Options: | Ethernet |
| Environmental: | Temperature: -20° ~ +60° F /-4° ~ +140° F Humidity: 0 - 95% relative humidity non-condensing |
| Enclosure: | Dimensions (W x H x D 7” x 9.25” x 2.25” Polycarbonate lockable security enclosure NEMA 4X UL-rated enclosure |
| Power: | 12V-24V DC Input Powers readers and other door hardware directly from the bus. Recommended 12v 1.2Ah backup battery (sold separately). |
| Manufacturer’s Limited Warranty | One to five-year warranty against defects in materials and workmanship. |
Package Contents -
- (1) RED Gate Controller (Ethernet)
- (1) Battery Leads
- (4) Jumpers
- (4) Enclosure Screws
- (2) Diodes
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
