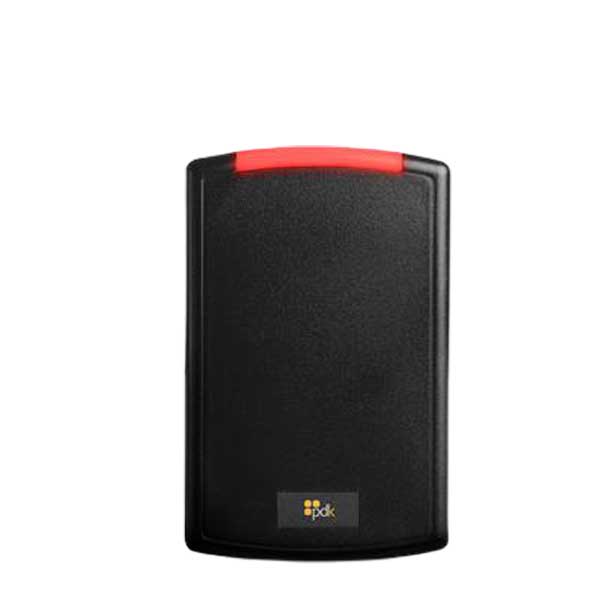

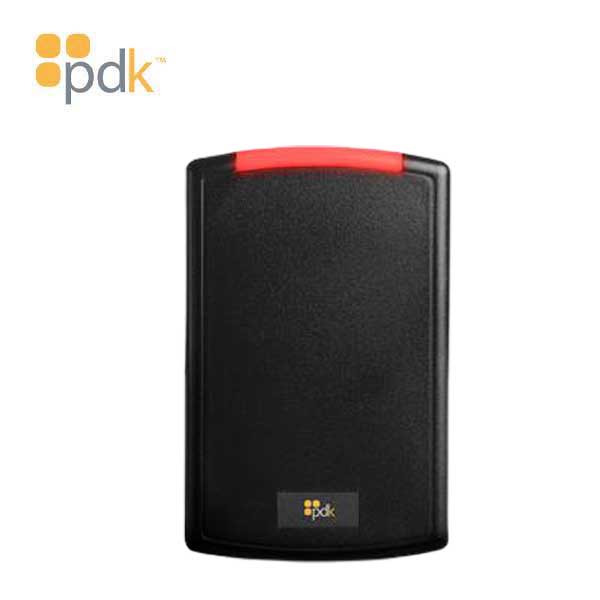

PDK - RED High Security Single Gang Reader - Desfire EV2 - 16V DC (13.56 MHz)
PDK - RED High Security Single Gang Reader - Desfire EV2 - 16V DC (13.56 MHz)
PDK - RED High Security Single Gang Reader - Desfire EV2 - 16V DC (13.56 MHz)
PDK - RED High Security Single Gang Reader - Desfire EV2 - 16V DC (13.56 MHz)
PDK - RED High Security Single Gang Reader - Desfire EV2 - 16V DC (13.56 MHz)

PDK - RED High Security Single Gang Reader - Desfire EV2 - 16V DC (13.56 MHz)

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

Availability: Available
  • Product SKU: PDK-RED-RG
  • NSID: 24304
  • PDK-RED-RG

    ProdataKey’s Red™ Readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red Readers are now one of the most secure and versatile readers on the market today, handing every application, from your daily install to the most secure implementation.

    Model PN: RG - RED High-Security Single Gang Reader


    • OSDP secure connectivity
    • High-Security Smart Credentials
    • Mobile ready options
    • DesFire EV22 encrypted technologies



Specifications:

Read Range
125 kHz up to 4”
Output
OSDP and Wiegand protocol
Encryption MIFARE® DESFire® EV2
Dimensions 3.37” x 2.13” x 0.03”
Cable Distance Wiegand 500’ (22AWG)
Frequency 13.56 MHz
Temperature -31o ~ +150o F or -35o ~ +66oC
Humidity 0 - 95% non-condensing
Protection Rating IP55
Power 5 - 16V DC (Linear power supply recommended)
Enclosure
3.25” x 5.1” x 0.71”




This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
