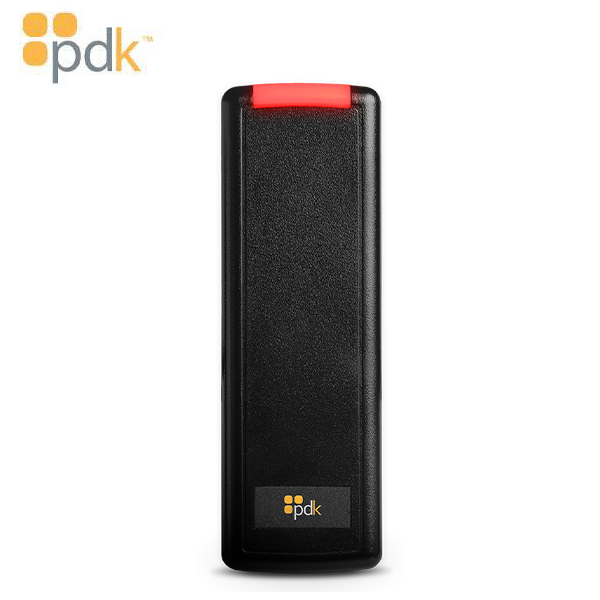

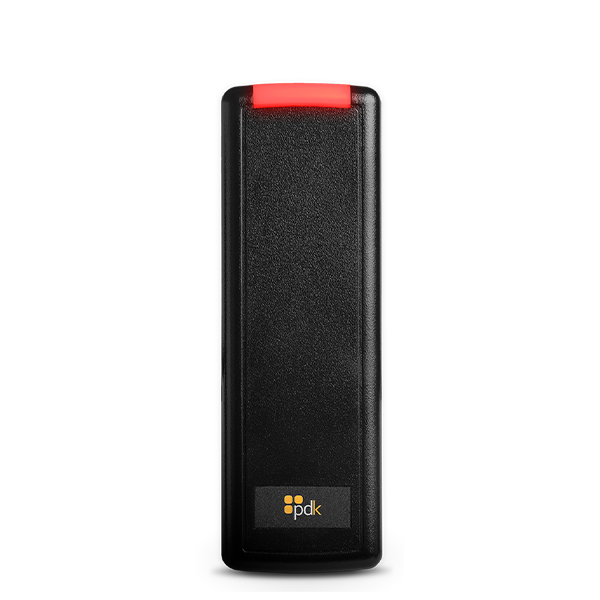

PDK - RMB - High Security Reader - Mullion Reader - IP 55 Protection Rating - Optional RF Technologies - Optional Styles
Available to Order
SKU:
PDK-RMB
NSID:
26337
26341
26339
26338
26342
26340
PDK-RMXXXX
ProdataKey’s Red Readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red Readers are now one of the most secure and versatile readers on the market today, handling every application, from your daily install to the most secure implementation.
More Information Below
- Available in different styles and RF technologies
Specifications
| RF Technologies | High-Security (13.56 MHz) or High security + Proximity + Mobile |

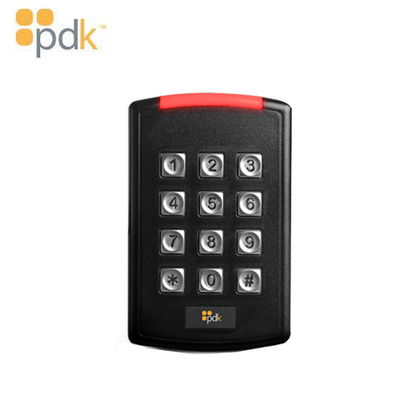

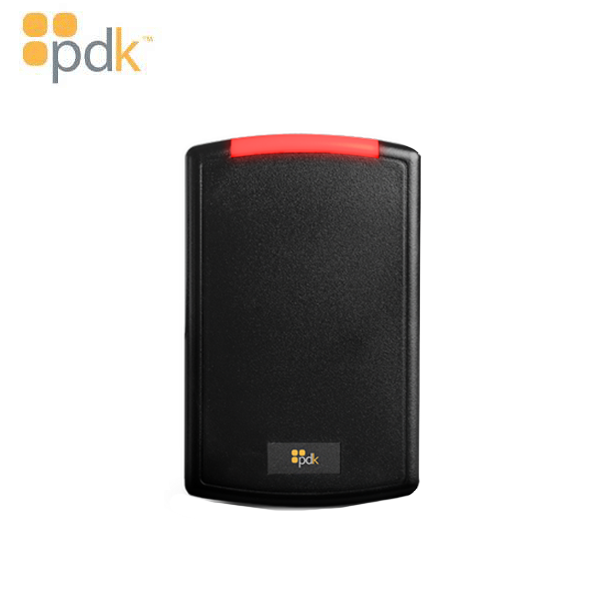

| Styles | Mullion, Single Gang, Keypad |
| Read Range | 125 kHz up to 4” |
| Output | OSDP and Wiegand protocol |
| Encryption | MIFARE® DESFire® EV2 |
| Cable Distance | OSDP - 1000’ or Wiegand - 500’ (22AWG) |
| Temperature | -31o ~ +150o F or -35o ~ +66oC |
| Humidity | 0 - 95% non-condensing |
| Protection Rating | IP55 |
| Power | 5 - 16V DC (Linear power supply recommended) |
| Dimensions | 1.7" x 5.1" x 0.71" |
| Weight | 7 oz |
Downloads:
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
