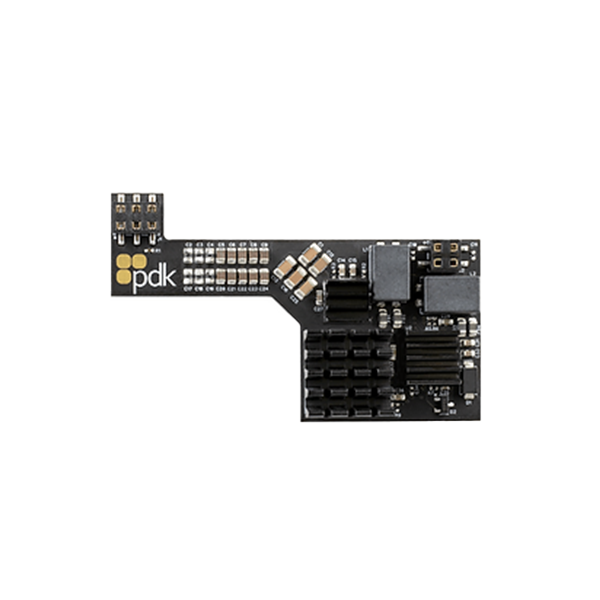

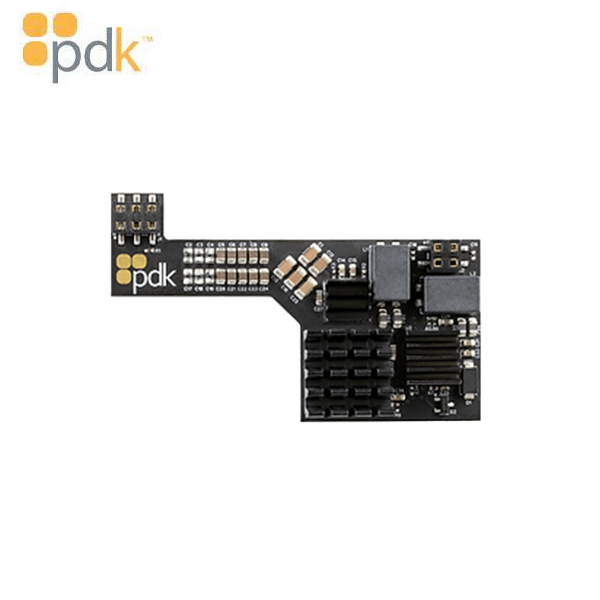

Plug-and-play connection options are available with our Red™ PoE++ Kit making installations faster and easier than ever before. Each module plugs seamlessly into the door controller and is instantly ready to go. With PoE, you automatically save on cable runs and can fully power up to 4 doors, making pdk controllers the most flexible and intuitive controllers on the market today!
More Information Below
Specifications
PoE Requirements
| Product | PoE Switch | PoE + Switch | PoE ++ Switch |
| Red 1 | 11w/0.8a | 24w/1.7a | 27w/2a |
| Red 2 | 11w/0.8a | 24w/1.7a | 27w/2a |
| Red 4 | 11w/0.8a | 24w/1.7a | 49w/3.5a |
| Aux 8 | 11w/0.8a | 24w/1.7a | 49w/3.5a |
PoE Module Specifications
| Communication | Ethernet |
| Environmental | Temperature: -4° ~ +140°F / -20° ~ +60° C Humidity: 0 - 95% relative humidity non condensing |
Downloads:
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
