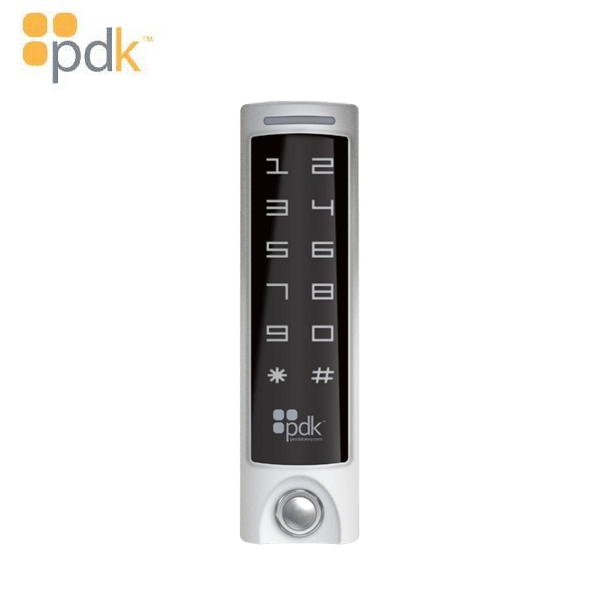

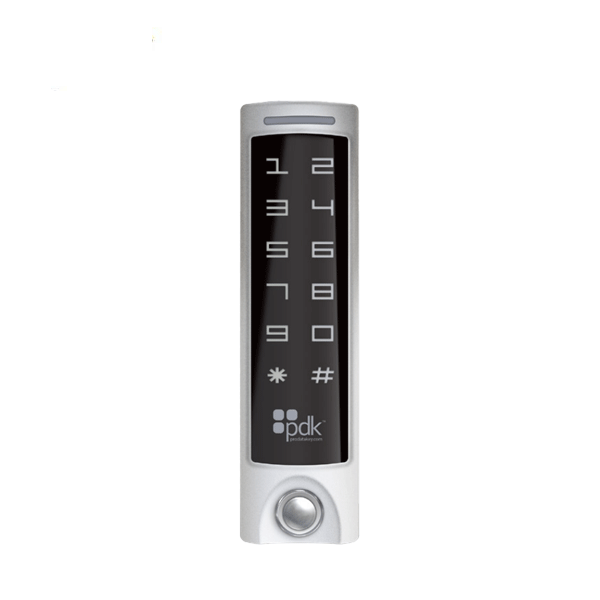

PDK - Ruggedized Reader - Cloud Network Access Control Mullion Prox & PIN Keypad Reader (125 KHz Prox)
PDK - Ruggedized Reader - Cloud Network Access Control Mullion Prox & PIN Keypad Reader (125 KHz Prox)
PDK - Ruggedized Reader - Cloud Network Access Control Mullion Prox & PIN Keypad Reader (125 KHz Prox)
PDK - Ruggedized Reader - Cloud Network Access Control Mullion Prox & PIN Keypad Reader (125 KHz Prox)
PDK - Ruggedized Reader - Cloud Network Access Control Mullion Prox & PIN Keypad Reader (125 KHz Prox)

PDK - Ruggedized Reader - Cloud Network Access Control Mullion Prox & PIN Keypad Reader (125 KHz Prox)

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

Availability: Available
  • Product SKU: PDK-RDRMR
  • NSID: 24281
  • PDK-RDRMR

    Upgrade to something sleeker and more durable with the rugged touch keypad readers. The mullion style reader is just the right width, making it ideal for door frame applications..

    Model PN: RDRMR - Cloud Network Access Control Mullion Prox & PIN Keypad Reader


Metal Reader Features

  • 125 kHz RFID Proximity
  • 26- to 37-bit Wiegand-based format
  • Output converts to Wiegand formats
  • Voltage: 12VDC at the reader from the Single io or Eight io board
  • Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
  • Aluminum alloy case, fully potted, water-resistant IP65* (IP rated as "dust tight" and protected against water projected from a nozzle.)
  • Backlight that can be set to on or off
  • FCC, RoHS, and UL Standard 294 compliant
  • 5 kHz audio doorbell buzzer

Specifications

Input: Frequency: 125 KHZ
Output: Wiegand protocol
Environmental: Temperature: -20° ~ +60° C or -4° ~ +140° F
Humidity: 0 - 95% relative humidity non-condensing
Enclosure: Mullion Dimensions (W x H x D) 1.625” x 6.25” x .75”
Metal Enclosure
Power: 5V DC from included power supply
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Single-Gang Rugged Reader (1) or Mullion Rugged Reader (1)
  • Mounting screws (4)
  • Wall anchors for mounting to drywall (4)
  • Diode (1)





This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Online Manual

PDK-RDRMR

Upgrade to something sleeker and more durable with the rugged touch keypad readers. The mullion style reader is just the right width, making it ideal for door frame applications..

Model PN: RDRMR - Cloud Network Access Control Mullion Prox & PIN Keypad Reader

Metal Reader Features

  • 125 kHz RFID Proximity
  • 26- to 37-bit Wiegand-based format
  • Output converts to Wiegand formats
  • Voltage: 12VDC at the reader from the Single io or Eight io board
  • Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
  • Aluminum alloy case, fully potted, water-resistant IP65* (IP rated as "dust tight" and protected against water projected from a nozzle.)
  • Backlight that can be set to on or off
  • FCC, RoHS, and UL Standard 294 compliant
  • 5 kHz audio doorbell buzzer

Specifications

Input: Frequency: 125 KHZ
Output: Wiegand protocol
Environmental: Temperature: -20° ~ +60° C or -4° ~ +140° F
Humidity: 0 - 95% relative humidity non-condensing
Enclosure: Mullion Dimensions (W x H x D) 1.625” x 6.25” x .75”
Metal Enclosure
Power: 5V DC from included power supply
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Single-Gang Rugged Reader (1) or Mullion Rugged Reader (1)
  • Mounting screws (4)
  • Wall anchors for mounting to drywall (4)
  • Diode (1)





This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Online Manual
