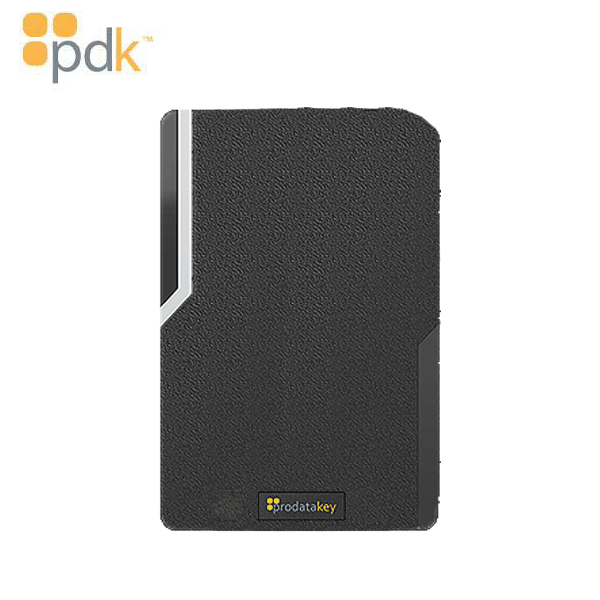

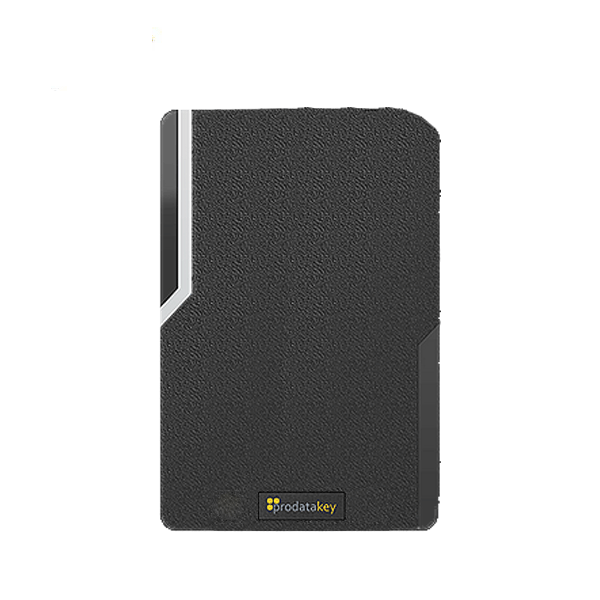

PDK - Standard Reader - Cloud Network Access Control Single-Gang Reader (125 KHz Prox)
PDK - Standard Reader - Cloud Network Access Control Single-Gang Reader (125 KHz Prox)
PDK - Standard Reader - Cloud Network Access Control Single-Gang Reader (125 KHz Prox)
PDK - Standard Reader - Cloud Network Access Control Single-Gang Reader (125 KHz Prox)
PDK - Standard Reader - Cloud Network Access Control Single-Gang Reader (125 KHz Prox)

PDK - Standard Reader - Cloud Network Access Control Single-Gang Reader (125 KHz Prox)

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

Availability: Available
  • Product SKU: PDK-RDRG
  • NSID: 24279
  • PDK-RDRG

    The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience. The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience.

    Model PN: RDRG - Cloud Network Access Control Single-Gang Reader


Metal Reader Features

  • 125 kHz RFID Proximity
  • 26- to 37-bit Wiegand-based format
  • Output converts to Wiegand formats
  • Voltage: 12VDC at the reader. A regulated power supply is recommended for best operation.
  • Electronics potted and sealed with tamper-resistant epoxy for indoor installation
  • FCC, RoHS, and UL Standard 294 compliant
  • IP65* moisture and dust protection (IP rated as "dust tight" and protected against water projected from a nozzle.)
  • 5 kHz audio buzzer

Specifications

Input: Frequency: 125 KHZ
Output: Wiegand protocol
Environmental: Temperature: -20 ~ +60 C or -4 ~ +140 F Humidity: 0 - 95% relative humidity non condensing
Enclosure: Mullion Dimensions (W x H x D) 1.875” x 4” x .875”
Single Gang Dimensions (W x H x D) 3.25” x 4.75” x .875”
Plastic Enclosure
Power: 5V DC from included power supply
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Single-Gang Style Reader (1)
  • Mounting screws (4)
  • Diode (1)





This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Online Manual

PDK-RDRG

The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience. The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience.

Model PN: RDRG - Cloud Network Access Control Single-Gang Reader

Metal Reader Features

  • 125 kHz RFID Proximity
  • 26- to 37-bit Wiegand-based format
  • Output converts to Wiegand formats
  • Voltage: 12VDC at the reader. A regulated power supply is recommended for best operation.
  • Electronics potted and sealed with tamper-resistant epoxy for indoor installation
  • FCC, RoHS, and UL Standard 294 compliant
  • IP65* moisture and dust protection (IP rated as "dust tight" and protected against water projected from a nozzle.)
  • 5 kHz audio buzzer

Specifications

Input: Frequency: 125 KHZ
Output: Wiegand protocol
Environmental: Temperature: -20 ~ +60 C or -4 ~ +140 F Humidity: 0 - 95% relative humidity non condensing
Enclosure: Mullion Dimensions (W x H x D) 1.875” x 4” x .875”
Single Gang Dimensions (W x H x D) 3.25” x 4.75” x .875”
Plastic Enclosure
Power: 5V DC from included power supply
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Single-Gang Style Reader (1)
  • Mounting screws (4)
  • Diode (1)





This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Online Manual
