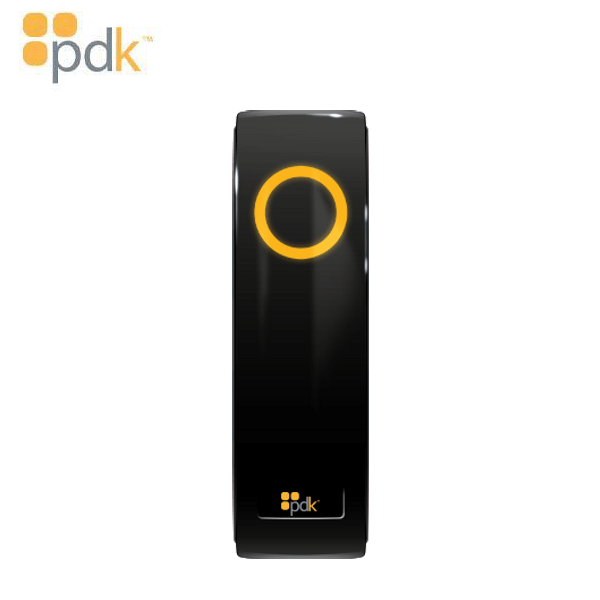

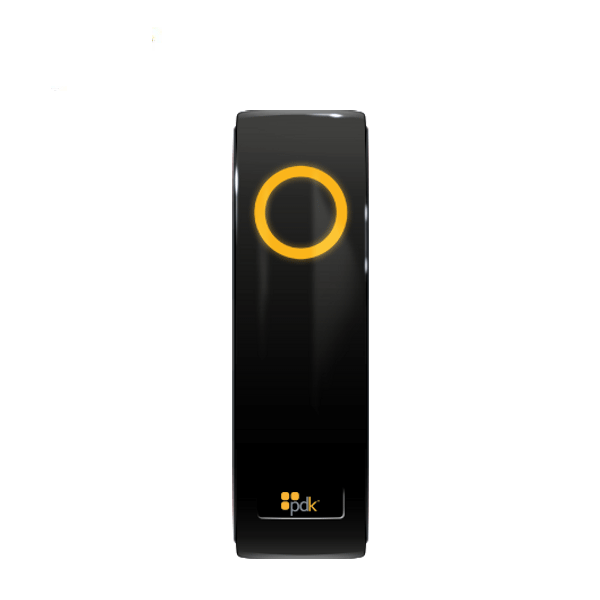

PDK - Touch IO - Cloud Network Access Control - Touch Mobile Bluetooth Credential Reader (Bluetooth / 125 KHz Prox )

In Stock
SKU: PDK-RDRBT
NSID: 24275

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

Touch io offers unparalleled convenience and security. By using a mobile device as a credential, touch io allows users to keep their phone in their pocket for hassle-free entry. Simply tap the reader, and touch io will automatically authenticate or deny access*. Unlike other Bluetooth readers, touch io uses inside-out technology to prevent accidental openings. Using advanced hardware, the reader detects which side of the door a user is standing, distinguishing between credentials inside or outside a room before granting access.

Model PN: RDRBT - Touch Mobile Bluetooth Credential Reader

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Touch IO Features

Unlimited Mobile Credentials With touch io, you can issue an unlimited number of mobile credentials per reader. There’s no need to buy redeemable scratch cards, and system owners will experience significant cost savings over traditional access control cards.

Inside-Out Technology Unlike other Bluetooth readers, touch io uses inside-out technology to prevent accidental openings. Using advanced hardware, the reader detects which side of the door a user is standing, distinguishing between credentials inside or outside of a room before granting access.

Bluetooth Low Energy (BLE) Bluetooth LE provides the secure transmission of the credential to the reader using patented technology to transmit your data when in range for access control.

Mobile Credential Management Unlike traditional prox cards, mobile credentials are nearly impossible to copy or clone, and a lot less likely to become lost or stolen. Plus, system administrators can easily add or delete employee mobile credentials in just a few clicks within pdk io.

Touch Access Keep your phone in your pocket for hassle-free entry. Simply tap or nudge the reader and touch io will automatically unlock the door using a mobile credential. No more fumbling with keys, looking for an ID badge, or struggling to get your phone out of your pocket.

Standard Prox Card Compatible Touch io leverages both 125 kHz prox cards and Bluetooth credentials, allowing for a smooth transition from legacy access control.

Specifications

Input: Badge Frequency: 125 KHz
Bluetooth Frequency: 2.4-2.486 GHz
Reader Bluetooth Range: adjustable from 30’ to 1”
Output: 26- to 37-bit Wiegand protocol
Cable: 24 AWG (maximum length 400’)
Environmental: Temperature: -40° F to 149° F (-40° C to +65° C)
Humidity: 0-95% relative humidity, non-condensing
Protection Rating: IP65
Enclosure: Dimensions: 1.7” x 6” x 1.3” (W x H x D)
Weight: 0.49 lbs / 7.8 oz / 222 g (w/backplate)
Compliance: Conforms to UL 294, FCC
Power: Voltage: +5.5 to 16 VDC at the reader. Regulated power supply and 12 VDC at the reader is recommended for best operation. Current Draw: 100mA - 200mA typical, 225mA max peak at 12 VDC low-power mode. Bright light power mode available.
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.


Package Contents -

  • Touche IO Reader (1)
  • Clear Bracket (1)
  • Patch Antenna (1)
  • Antenna Cover (1)
  • Pre-cut Foam Tape (1)
  • Bottom Mount Screws (4)
  • Walls Screws (2)
  • Wall Anchors (2)
  • Backplate (1)

This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Quick Start Guide

Online Manual
