Pemko - Assa Abloy - 171A - Saddle Threshold - 36” - Mill Aluminum Finish

Pemko - Assa Abloy - 171A - Saddle Threshold - 36” - Mill Aluminum Finish

Available to order
SKU PMK-171A-36w-A NSID 37259
$30.41$36.49On Sale You save $6.08 (17%)
Please Note: This product has a lead time

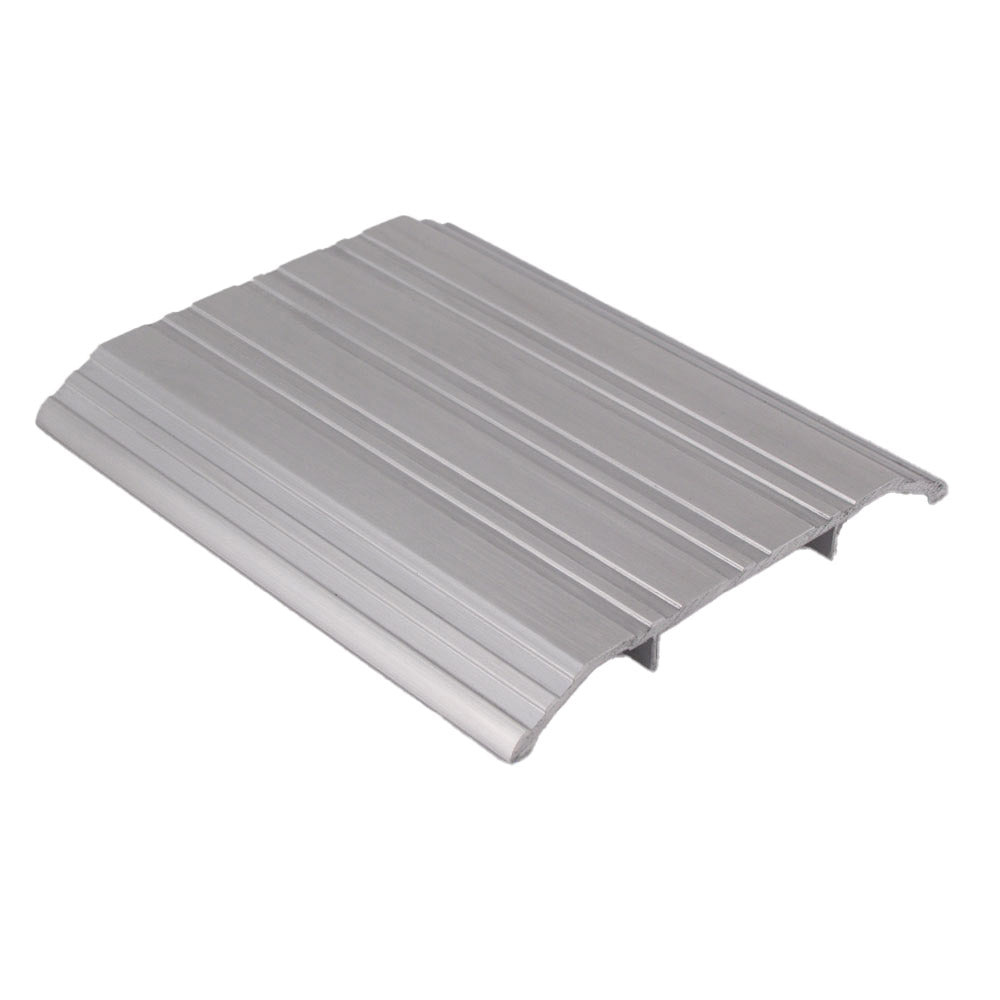

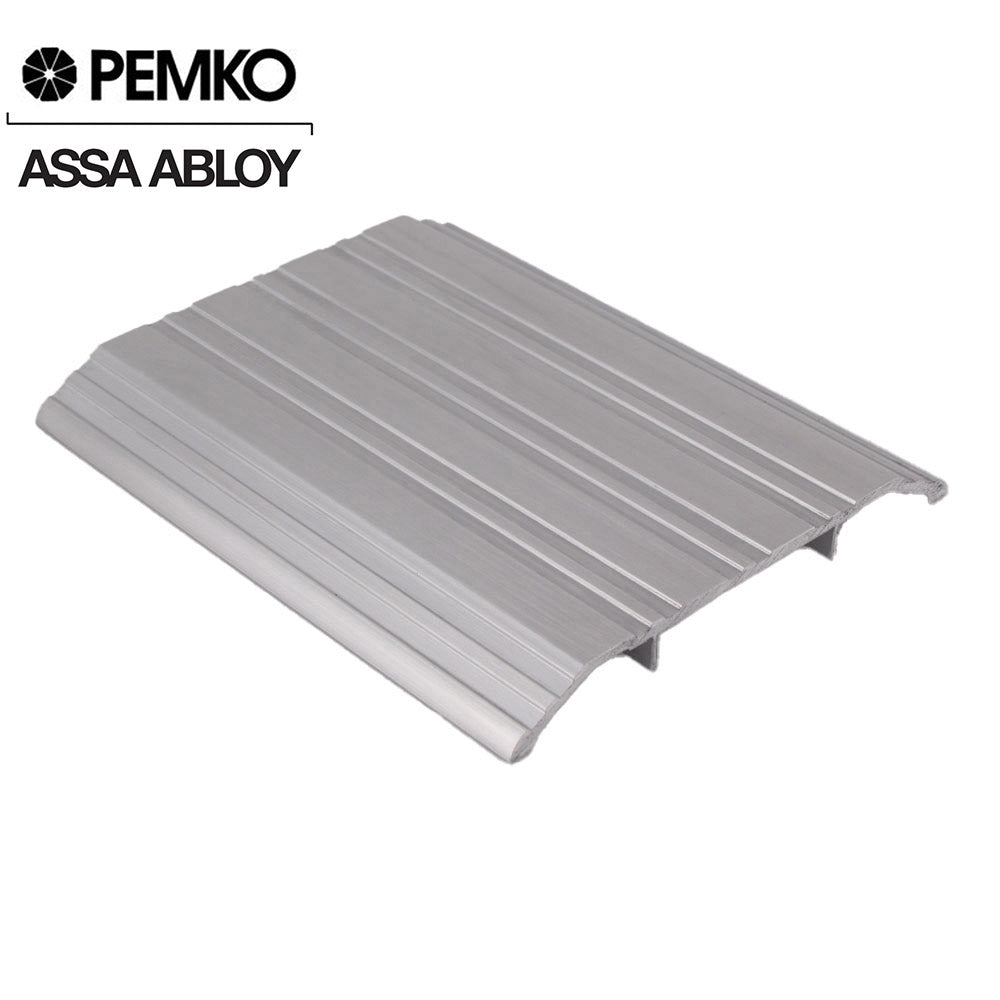

The Pemko 171A fluted saddle threshold for commercial door openings is our most popular and top-selling threshold. Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.

Features:

  • MATERIAL: 6063-T6 Aluminum Alloy and Temper Retainer
  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/2” (12.7 mm)
  • LENGTH: 36″ (914.4 mm)
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Ratings:

  • Barrier-Free (ADA) – Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 for:
    - Overall height is no greater than ½”
    - A vertical rise no more than ¼” and/or change in elevation being beveled with a slope of 1:2
    - Does not require more than 5lbs of operating force
    - Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications P-F430C for high static coefficient of friction resulting in a slip resistance surface
  • Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
  • BHMA Certified – Tested for performance with regards to the requirements in: ANSI/BHMA A156.21 Thresholds
