Details
More Details Below:
| Net Weight (pound) | 16.5 |
| Wattage | 3500w |
| AC Output Voltage | 12v / 24v / 36v / 48v / 60v / 72v / 96v / 110v |
| DC Input Voltage Range | 10-15v / 21-30v / 30v-45v / 42-60v / 50-75v / 60-90v / 75v-115v / 90-135v |
| No Load Current Draw | 1.2A |
| Efficiency | 85% -- 90% |
| AC Regulation | 3% |
| Frequency | 50Hz or 60Hz |
| Low Voltage Alarm | 9.5-10.5v / 19.5-21.5v / 29.5v-31.5v / 43-45v / 50.5-51.5v / 60.5-61.5v / 76-77v / 91-93v |
| Low Voltage Shut Down | 9-10v / 18.5-20.5v / 29-30v / 41.5-42.5v / 50-51v /60-61v / 74-76v / 90v |
| Over Load | Shut Off & Recover Manually |
| Over Voltage Shut Down | 15.5v / 30.5v / 45.5v /61.5v /75v / 90v / 115 / 135v |
| Over Voltage Protection | Shut Off Output Automatically |

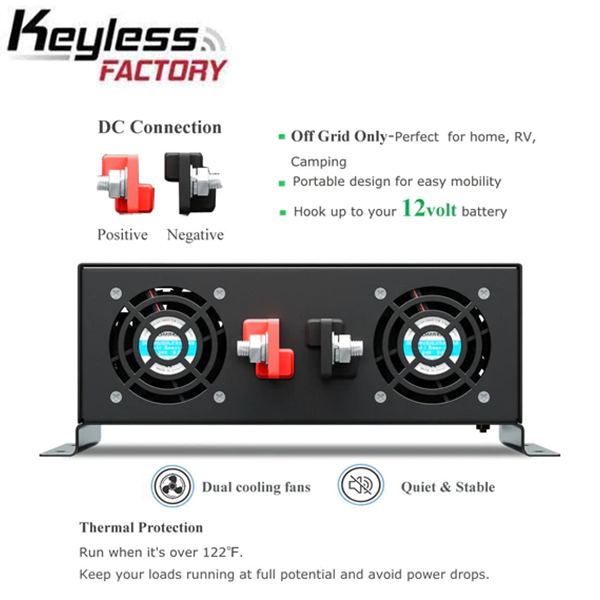

| Cooling Fans | 2 |
| Working Temperature | -10℃ TO 50℃ / -50℉ TO 122℉ |
| Storage Temperature | -30℃ TO 70℃ / -86℉ TO 158℉ |
| Working Humidity | 20% TO 90% RH Non-condensing |
| Start | Soft Start |
| Total Harmonic Distortion | THD<5% |
Sparking Input Side
