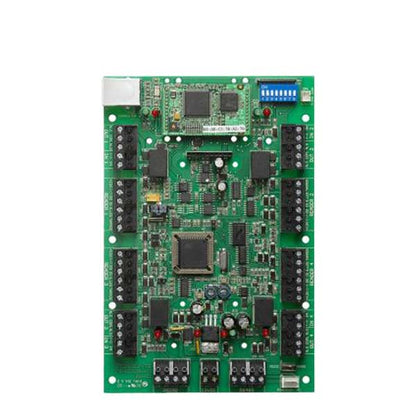

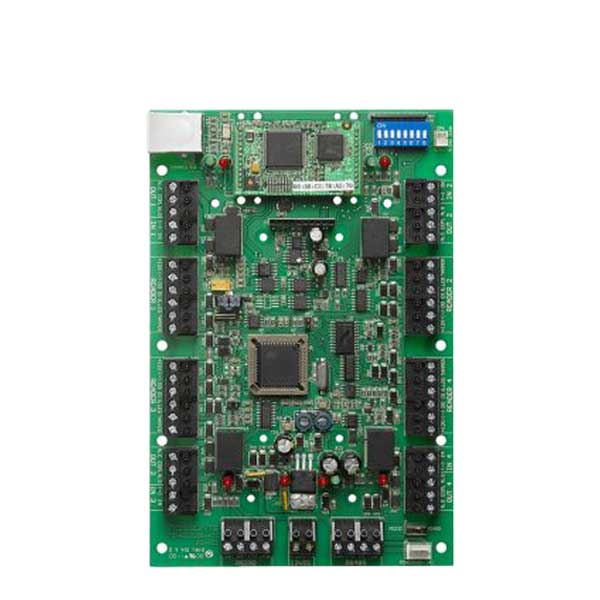

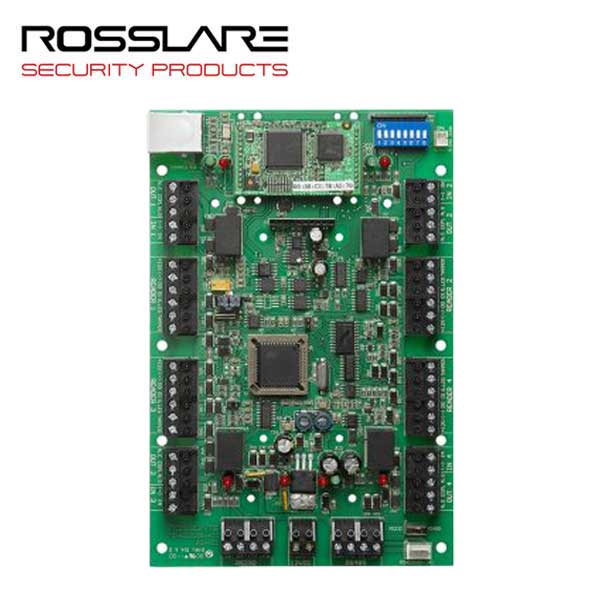

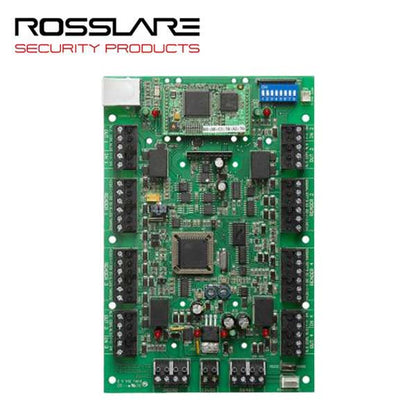

*Discontinued* Rosslare - AC425 - Expandable Networked Access Control - PCBA Only - 4 Readers - RS-485 - 30K Users - 20K Event History - 12VDC

*Discontinued* Rosslare - AC425 - Expandable Networked Access Control - PCBA Only - 4 Readers - RS-485 - 30K Users - 20K Event History - 12VDC

Discontinued
SKU ROS-AC-425-PCBA NSID 25229
$753.31$903.97On Sale You save $150.66 (17%)

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in AC425 Systems. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via Molex and Terminal Block.

Features:

  • Printed Circuit Board Assembly (PCBA) Only for AC425
  • Networked up to 1023 Panels
  • Networked up to 4092 Doors
  • Up to 30,000 users with access rights for every panel
  • Panel supports 1-door (In/Out) and 2-door (In/Out, In/In or Out/Out) configurations


View full details

Details

Specifications:

Type: Printed Circuit Board Assembly
Readers: Standard = 4 reader ports.
Output voltage: 12 VDC
Max. current: 245 mA
LED control output D0/D1, tamper input
Max Readers: With MD-D04: 8 reader ports
Inputs: 4 supervised high impedance inputs.
8 or 12 supervised inputs when using MD-D04 or
MD-IO84 expansion boards. Maximum voltage: 5 VDC
Outputs: 4 relay outputs
8 supervised outputs when using MD-D04 or MDIO84 expansion boards. 5A relay N.O. and N.C. options
Interface: RS-485
RS-485: Molex and Terminal Block
Speed Options: 9600, 19200, 57600, 115200 bps
Serial Ports: 10/100 Ethernet Port
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Event Log: 20,000 Events
Operating Voltage: 13.8 VDC 1.5 A from PS-33
Max Input Current: Standby: 80 mA. Maximum: 325 mA
Housing: Printed Circuit Board Assembly Only
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited
