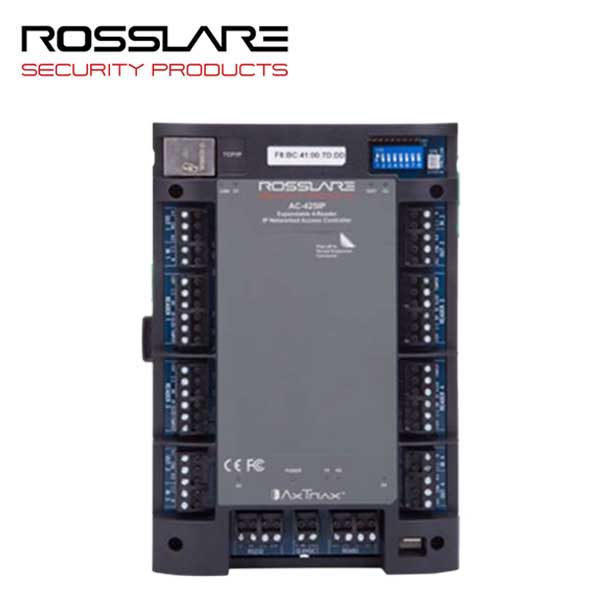

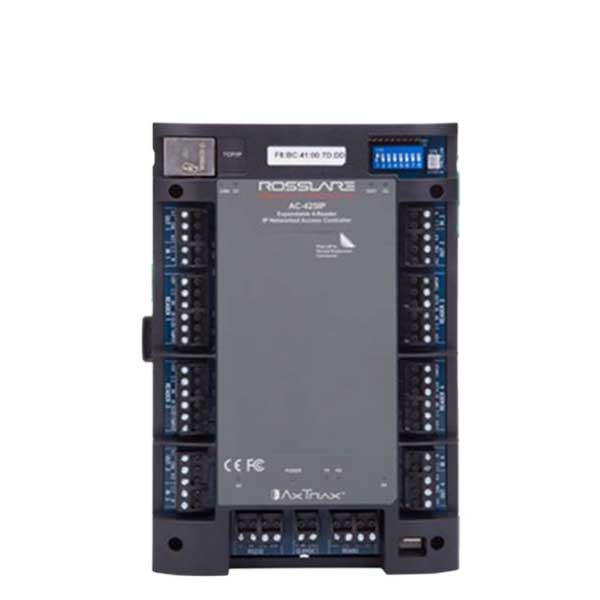

Rosslare - AC425IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC425IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC425IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC425IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC425IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Rosslare - AC425IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

$692.27 $787.99
Availability: Available
Wishlist
  • Product SKU: ROS-AC-425IP-DIN-PCBA
  • NSID: 25227
  • ROS-AC-425IP-DIN-PCBA

    Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader Expandable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

    Features:

    • DIN Housing for DIN Rail Mounting
    • Fully expandable up to 8 Readers and 12 Inputs/Outputs
    • Networked up to 1023 Panels
    • Networked up to 8184 Doors
    • Supports up to 30,000 users in off-line mode, unlimited server based capacity
    • 20,000 event history entries per computer
    • multi-user authentication for high-level security
    • supports a wide range of Wiegand and PIN formats



    $692.27
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Type: Network Control Panel
Readers: 4 reader ports, 8 reader ports when using MD-D04B Communication: Wiegand or Clock & Data
Output voltage to reader: 12 VDC
Max. current to reader: 245 mA
LED control output and Tamper Input
Inputs: 4 supervised high impedance inputs, 8 or 12 supervised inputs when using MD-D04B or MD-IO84B expansion boards
Maximum voltage: 5 VDC
Outputs: 4 Form C 5 Amp relay outputs, 8 outputs when using MD-D04B or MD-IO84B expansion boards
Interface: TCP/IP
TCP/IP: On-board RJ-45 connector
Selectable Comm. Speed: 9600, 19200, 57600, 115200 bps
Max Readers:  8
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Unauthorized & Access Groups: 30,000 Unauthorized Users
Event Log: 20,000 Events
Operating Voltage:  12 VDC, 1.5 A from a regulated power supply
Max Input Current: Standby: 120 mA, Maximum: 370 mA
Visual Indicators:
11 LEDs for outputs and communication status
Battery Standby Time: 3 hours with a 12 V, 7 Ah lead acid battery
Housing: Protective Cover & DIN Rail / Wall Mount
Dimensions: 7.6 x 5.4 x 1.5 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited



Downloads:

ROS-AC-425IP-DIN-PCBA

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader Expandable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

Features:

  • DIN Housing for DIN Rail Mounting
  • Fully expandable up to 8 Readers and 12 Inputs/Outputs
  • Networked up to 1023 Panels
  • Networked up to 8184 Doors
  • Supports up to 30,000 users in off-line mode, unlimited server based capacity
  • 20,000 event history entries per computer
  • multi-user authentication for high-level security
  • supports a wide range of Wiegand and PIN formats


Specifications:

Type: Network Control Panel
Readers: 4 reader ports, 8 reader ports when using MD-D04B Communication: Wiegand or Clock & Data
Output voltage to reader: 12 VDC
Max. current to reader: 245 mA
LED control output and Tamper Input
Inputs: 4 supervised high impedance inputs, 8 or 12 supervised inputs when using MD-D04B or MD-IO84B expansion boards
Maximum voltage: 5 VDC
Outputs: 4 Form C 5 Amp relay outputs, 8 outputs when using MD-D04B or MD-IO84B expansion boards
Interface: TCP/IP
TCP/IP: On-board RJ-45 connector
Selectable Comm. Speed: 9600, 19200, 57600, 115200 bps
Max Readers:  8
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Unauthorized & Access Groups: 30,000 Unauthorized Users
Event Log: 20,000 Events
Operating Voltage:  12 VDC, 1.5 A from a regulated power supply
Max Input Current: Standby: 120 mA, Maximum: 370 mA
Visual Indicators:
11 LEDs for outputs and communication status
Battery Standby Time: 3 hours with a 12 V, 7 Ah lead acid battery
Housing: Protective Cover & DIN Rail / Wall Mount
Dimensions: 7.6 x 5.4 x 1.5 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited
