Rosslare

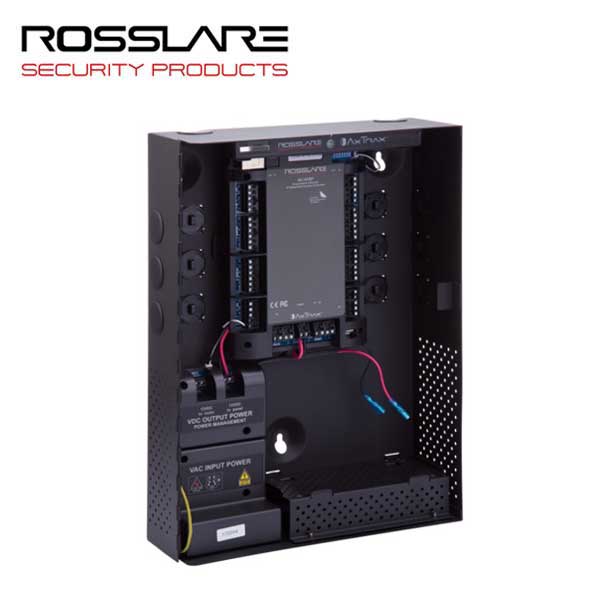

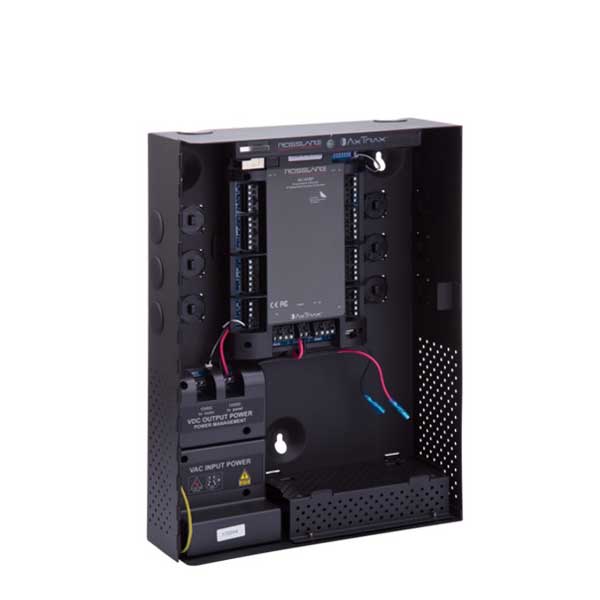

Rosslare - AC425IP - Expandable Networked Access Control Panel - Enclosed - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Rosslare - AC425IP - Expandable Networked Access Control Panel - Enclosed - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Available to order
SKU ROS-AC-425IP-BU NSID 51872
$1,193.24$1,431.89On Sale You save $238.65 (17%)
Please Note: This product has a lead time

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader expandable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

Features:

  • Mountable & lockable metal enclosure
  • Integrated with transformer, power supply/charger, sounder and control board
  • Fully expandable up to 8 Readers and 12 Inputs/Outputs
  • Switch mode power supply (SMPS) and a power management board (PM-10)
  • Networked up to 1023 Panels
  • Networked up to 8184 Doors
  • Supports up to 30,000 users in off-line mode, unlimited server based capacity
  • 20,000 event history entries per computer
  • multi-user authentication for high-level security
  • supports a wide range of Wiegand and PIN formats


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Type: Network Control Panel
Readers: 4 reader ports, 8 reader ports when using MD-D04B
Communication: Wiegand or Clock & Data
Output voltage to reader: 12 VDC
Max. current to reader: 245 mA
LED control output and Tamper Input
Power Cable Type: Type B plug power cable
Inputs: 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D04B or MD-IO84B expansion boards
Maximum voltage: 5 VDC
Outputs: 4 Form C 5 Amp relay outputs. 8 outputs when using MD-D04B or MD-IO84B expansion boards
Interface: TCP/IP
TCP/IP On-board RJ-45 connector
Selectable Comm. Speed: 9600, 19200, 57600, 115200 bps
Max Readers: 8
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Unauthorized & Access Groups: 30,000 Unauthorized Users
Event Log: 20,000 Events
Operating Voltage: 90 ~ 265 VAC, 50 ~ 60 Hz from mains power
SMPS Max Input Current: 1.5 A
SMPS Output Power: 15 VDC, 4 A (60 Watts) to the power management board
PM-10 Input Power: 15 VDC, 4 A to the power management board
PM-10 Output Power: Two PTC fused outputs, each provides 13.8 VDC, 2 A. One output for controller and readers, One output for locks
Battery Charger: 13.8 VDC, 300 mA for 12 VDC, 7 Ah Lead Acid Battery
Housing: ME-1015 Power Management Enclosure
Dimensions: 14.4 x 10.4 x 3.8 in
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited

Downloads:
