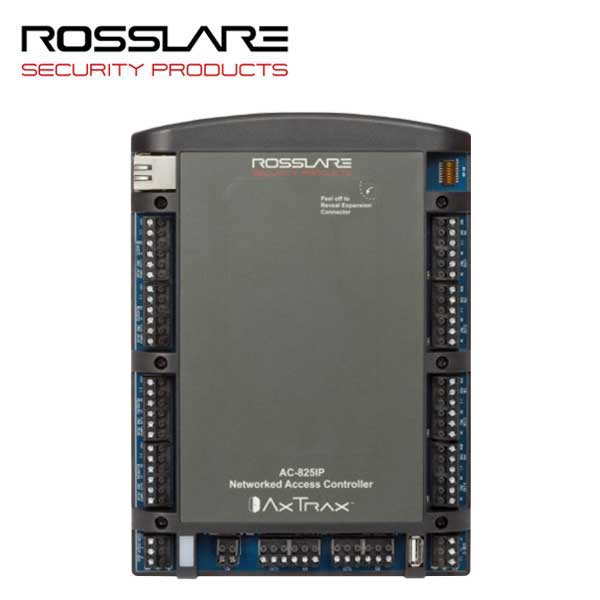

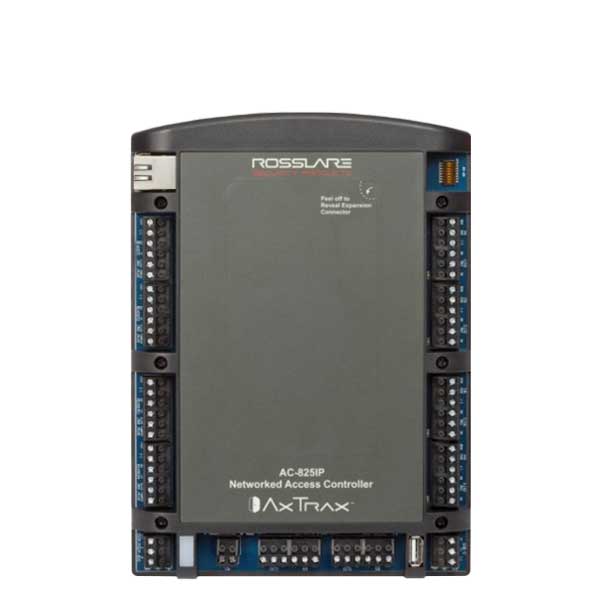

Rosslare - AC825IP - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - TCP/IP - 60K Users - 500K Event History - 12VDC
- Product SKU: ROS-AC-825IP-PCBA
- NSID: 25230
-
ROS-AC-825IP-PCBA
Networked Control Panels are Rosslare's most advanced and secure access solutions. Each AC-825IP access control unit (ACU) supports up to 4 doors with 4-Wiegand readers (In/Out), each door with 2 supervised inputs and 1 relay output. The board includes four additional auxiliary inputs and two auxiliary outputs Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.
Features:
- DIN Housing for DIN Rail Mounting
- Scalable and flexible, can fit a wide variety of applications
- Supports up to 60,000 users in off-line mode, unlimited server based capacity
- 500,000 event history entries per computer
- Onboard TCP / IP networking with AES 128-Bit data encryption to an AxTraxNG Server
- Bi-directional communication for enhanced data transmission speed and reliability
- One onboard expansion slot and supports up to 12 additional expansion boards via RSDP
- supports a wide range of Wiegand and PIN formats
- DIN Housing for DIN Rail Mounting
Specifications:
| Type: | Network Control Panel |
| Readers: | 4 at 12VDC 245 mA max current Open collector, Active low LED Output TTL input 5VDC Tamper input |
| Inputs: | 12 inputs at 5 VDC maximum voltage |
| Outputs: | 6 Outputs at 5 Amps with N.O., N.C., and COM contacts FormC Relays |
| Interface: | TCP/IP |
| Ethernet port: | On-board RJ-45 connector |
| Expandable: | The number of supported doors, inputs, and outputs can be increased by using the onboard 10-pin X-bus expansion slot |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | Up to 60,000 users |
| Event Log: | Up to 500,000 entries |
| Operating Voltage: | 12 - 16 VDC |
| Max Input Current: | Standby: 130 mA, 12 VDC, Maximum: 375 mA |
| Tamper Input (from enclosure) | 4-pin tamper connector |
| Visual Indicators: |
Six LED's, active when an output relay is energized |
| Housing: | Protective Cover & DIN Rail / Wall Mount |
| Dimensions: | 8.8 x 6.5 x 1.5 in. |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b. UL 294 Listed |
| Warranty: | 2-Year Limited |
Downloads:
