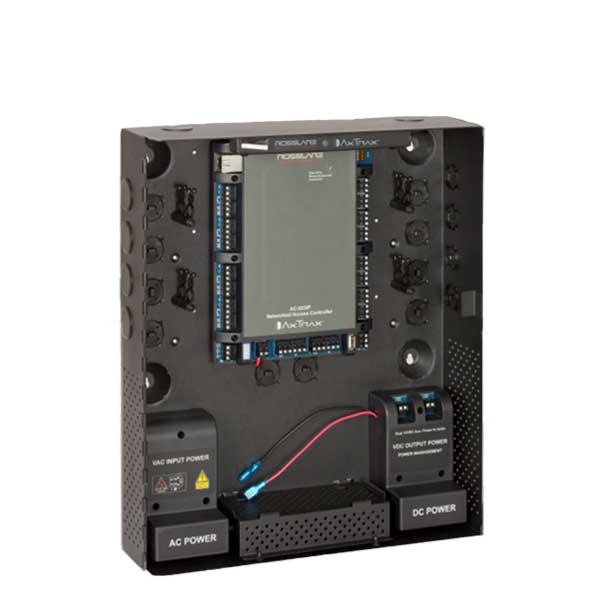

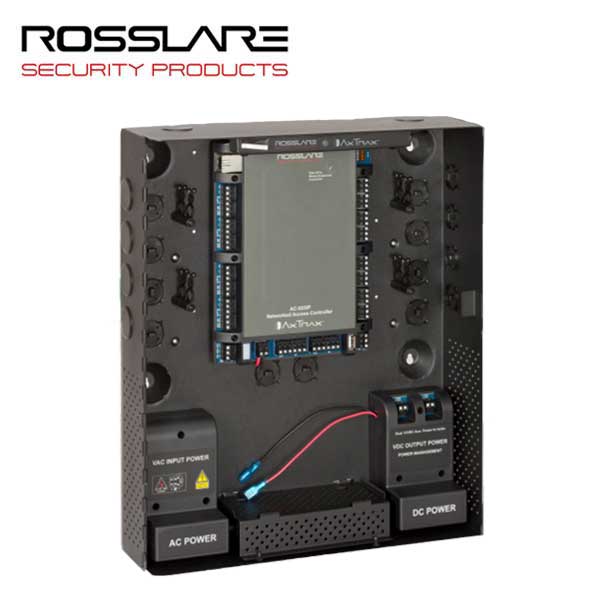

Rosslare - AC825IP - Expandable Networked Access Control Panel - Enclosed - 6 Readers - TCP/IP - 100K Users - 500K Event History - 12VDC
Rosslare - AC825IP - Expandable Networked Access Control Panel - Enclosed - 6 Readers - TCP/IP - 100K Users - 500K Event History - 12VDC
$1,280.25$1,536.30On Sale
You save $256.05 (17%)
Please Note:
This product has a lead time
Quantity
Couldn't load pickup availability
The AC-825IP is a 6-door (4 Wiegand format & 2 OSDP readers) networked access controller suitable for a medium-scale to high-scale security system. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users. Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs.
Features:
- Mountable & lockable metal enclosure
- Integrated with illumination bar, tamper sensing, power status LED, lockable C14 power plug.
- Scalable and flexible, can fit a wide variety of applications
- Supports up to 100,000 users in off-line mode, unlimited server based capacity
- 500,000 event history entries per computer
- Onboard TCP/IP networking with AES 128-Bit data encryption to an AxTraxNG Server
- Bi-directional communication for enhanced data transmission speed and reliability
- One onboard expansion slot and supports up to 12 additional expansion boards via RSDP (R/S/D/P-805)
- supports a wide range of Wiegand and PIN formats
View full details
Details
Specifications:
| Type: | Network Control Panel |
| Readers: | Readers (Wiegand Format) 4, (OSDP Format) 2 |
| Max Readers: | 56 |
| Power Cable Type: | Type B plug power cable |
| Relays 5A, Form-C: | 6 |
| Inputs: | 12 supervised high impedance inputs. Max voltage: 5 VDC |
| Outputs: | 6 supervised-high impedence inputs. 5 A DC, 150 W maximum. 12 VDC, 1.2 A typical (1.5 A max.) |
| Fuse: | 250 V, 2.5 A |
| Interface: | TCP/IP, OSDP, Wiegand, RSDP |
| TCP/IP | On-board RJ-45 connector |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 100,000 active credentials (Card & PIN) |
| Event Log: | 500,000 Events |
| Operating Voltage: | 15 VDC, 2 A, regulated power management board |
| SMPS Max Input Current: | Input: 100 to 240 VAC, 1.6 A, 50–60 Hz, switch mode power management board, C13 power cord |
| SMPS Output Power: | 12 VDC, 4 A |
| Battery Charger: | 12 V sealed lead acid (SLA) up to 7 Ah, IEC62133 |
| Housing: | ME-1515 Power Management Enclosure |
| Dimensions: | 13.6 x 15.9 x 4.0 in. |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b. UL 294 |
| Warranty: | 2-Year Limited |
