Rosslare - AX-NG-L1 - Access Control Management Software - For Networked Controllers - Level 1 - 65-256 Panels
- Product SKU: ROS-AX-NG-L1
- NSID: 25263
-
ROS-AX-NG-L1

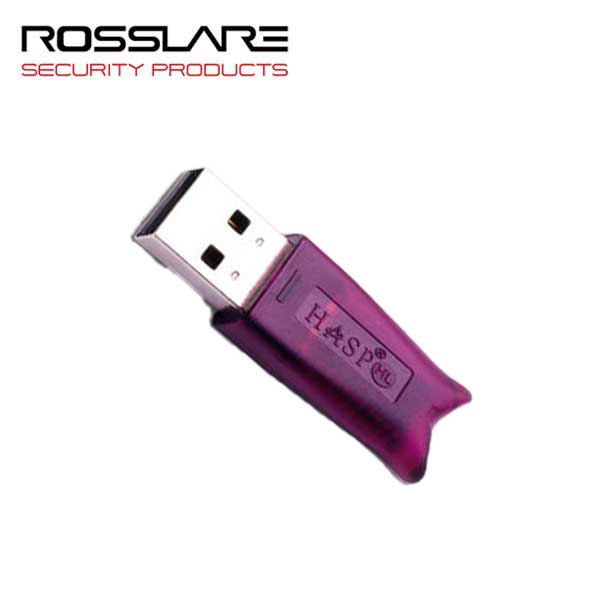

Rosslare’s AxTraxNG™ version V27.7.x.x is a complete client-server software management system enabling management of modular networked access control panels. User-friendly scalable management software for real-time monitoring, configuration and reporting for up to 256 Panels with HASP key. SQL database for intensive operation. Advanced event-response logic. Supports AC-215, AC-215IP, AC-225, AC-225IP, AC-425, AC-425IP and AC-525 controllers with their optional expansions and mixed installations. Supports PSTN modem, Serial RS485 and TCP/IP configurations for panels.*Expanded Management Control Software, only required on systems with more than 64 Panels.
Features:- Multi-factor credential support for Card / PIN / UHF / FP Template / Face Template / LPR / and Mobile Credentials
- Fully integrated with Rosslare Bio8000 and Bio9000 series fingerprint and face recognition terminals
- Integrates with security and user management solutions such as VMS and NVR
- Password-controlled for high level of security
- Advanced Access Group assignment and complete Access Monitoring capability
- Manages user data, photo and information fields, access rights, alarms, strike time, and door mode all from one central location
- Car parking management
- Produces reports from acquired data such as usage reports, attendance records, visitors and roll calls. Reports can be customized and filtered
- One server can operate many clients, with different interface languages for each client
- License plate recognition allows vehicle recognition, monitoring and managing with LPR cameras
- Mustering capabilities with monitoring of onsite personnel
Specifications:
| Operating system: | Windows 7, Windows 8, Windows 10, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Minimum PC requirements: | Intel i5 2.4GHz or higher, 4 GB RAM, 500 GB HDD, LAN port for TCP/IP |
| DB version: | Microsoft SQL Server 2012 Express, password protected. Supports up to Microsoft SQL Server 2017. |
| DB Backup: | Backup now option or clear all now option Complete DB export configuration or by event (selectable backup and restore) Auto file naming for backups Automatic backups |
| User capacity: | AC-215: 5,000 AC-215B/IPB, AC-225B/IPB, AC-425B/IPB: 30,000 AC-825IP: 100,000 Up to 16 credentials per user and user credential double authentication by reader and time zone |
| Networks: | 1024 controllers: up to 10,000 readers |
| Supported Access Control Panel Models : | AC-215/215IP, AC-215-B /215IP-B, AC-215-DIN, AC-225/225IP, AC-225-B / 225IP-B, AC225-DIN, AC-425/425IP, AC-425-B / 425IP-B, AC-425-DIN, AC-825IP, AC-825IP with R/S/D/P-805 |
| Panel Networks Communication Interface: |
Serial (RS-232/485), TCP-IP |
| Communication Speed : | 9600, 19200, 57600 and 115200 bps |
| Time zones: | Up to 256 time zones that can be assigned to Access/Reports/Update |
| Holidays: | Up to 64 holiday dates, synchronizes with MS Outlook |
| Supports multiple reader modes: | PIN only, PIN and card, PIN or card, card only, Desktop |
| Alarm handler: | Advanced event color coding of Tamper/Forced/Antipassback/Input Alarm events with confirmation status/ email notifications |
| User dual authentication: | The reader grants access only for two credentials per user per access |
Downloads:
