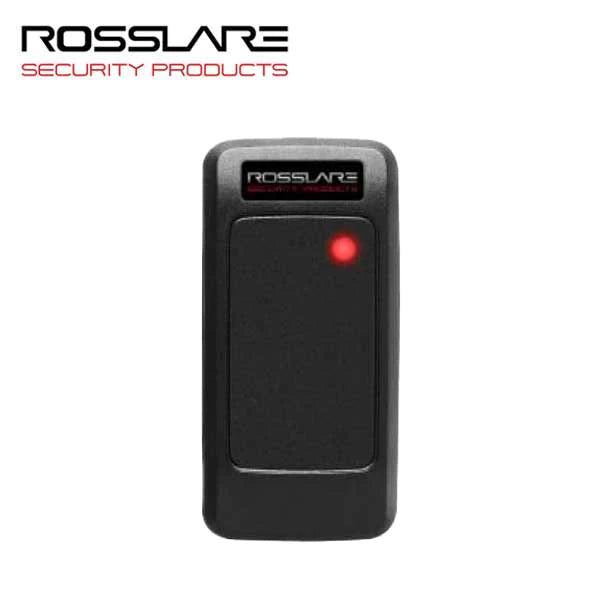

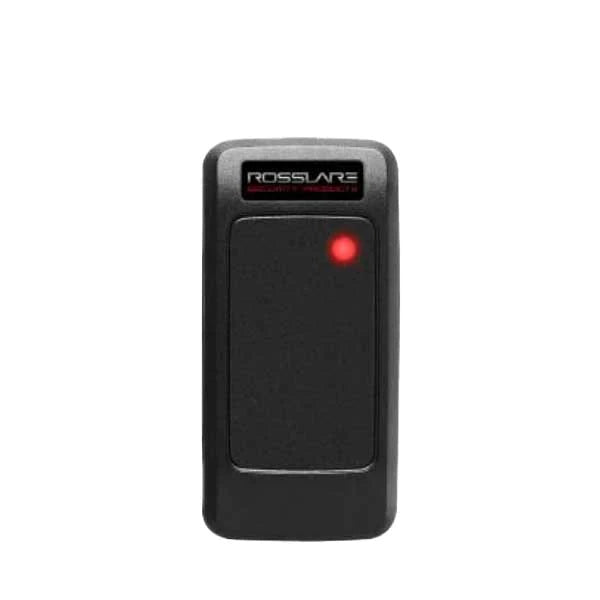

Rosslare - AY-K12C - Mullion Wiegand Proximity Reader - 125 kHz - Indoor / Outdoor

In Stock
SKU: ROS-AY-K12C
NSID: 25318

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$65.18
$75.80
$65.18

Rosslare's AY-x12C is a series of powerful RFID proximity card readers of EM 4102 125-kHz cards and tags. The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water-resistant casing, the AY-x12C are equally suited for indoor and outdoor use.

  • Selectable output formats: Wiegand 26-Bit,
    RS-232, or Clock & Data
  • Excellent RFID card read range: 8 cm (3.2 in.) to
    10 cm (3.9 in.)
  • Wide range operating voltage: 5 to 16 VDC
  • 45 cm (18 in.) pigtail cable
  • Internal sounder with external control option
  • Tri-color LED with external control inputs
  • External reader hold control
  • Optical wall tamper detection
  • Water-resistant with epoxy potting (IP65),
    suitable for indoor and outdoor applications
  • Made of tough polycarbonate UV-resistant
    plastic
  • Comes with mounting template for easier
    installation
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Operating Voltage 5–16 VDC
Current Draw - Standby 60mA@12VDC
Current Draw - Active 120mA@12VDC (max.)
Outputs - Wiegand EM - 26 bits
Card type 125kHz EM
Card read range 0~8 cm
IP Rating IP65
Enclosure material Polycarbonate Enclosure
Operating temperature -25°~145° F (-31°~63° C)
Operating humidity 10~95% non-condensing
Dimensions 80 x 40 x 12.8mm", (3.2 x 1.6 x 0.5in.)"
Weight 2.5-oz (70.5g)
