*Discontinued* Rosslare - AY-L25 - Contactless Smart Card Reader - Outdoor - 13.56 MHz - 5-16 VDC - IP65

*Discontinued* Rosslare - AY-L25 - Contactless Smart Card Reader - Outdoor - 13.56 MHz - 5-16 VDC - IP65

Discontinued
SKU ROS-AY-L25 NSID 42156
$92.02$110.42On Sale You save $18.40 (17%)

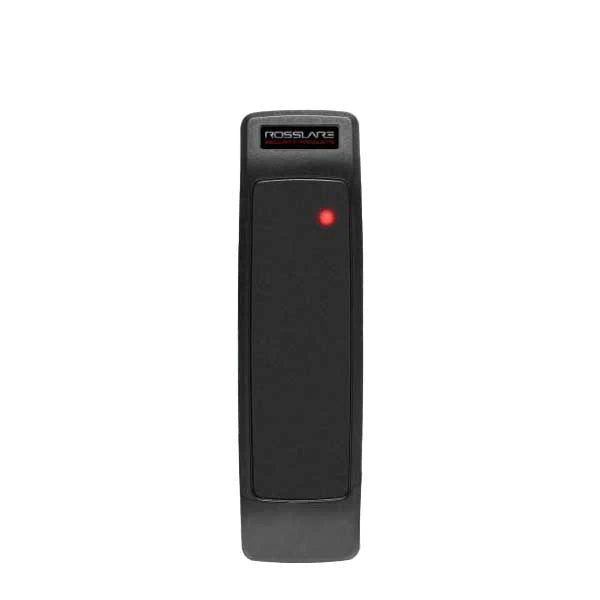

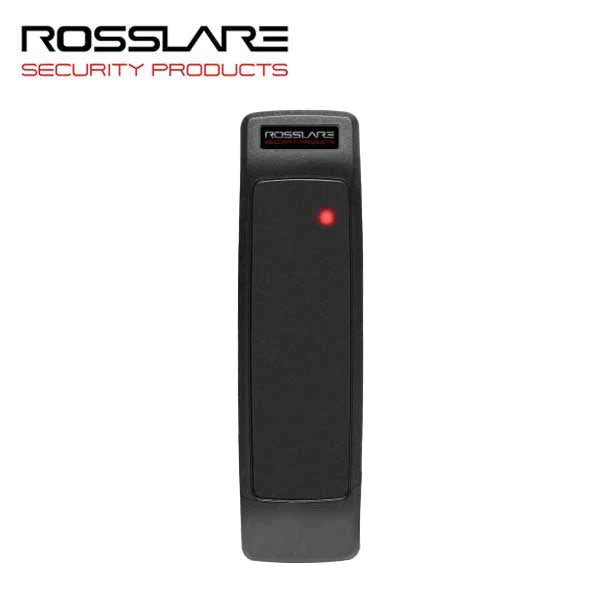

The advanced AY-L25 is a contactless MIFARE Classic EV1 reader supporting ISO14443A 13.56 MHz standard, capable of reading card serial number and sending it to a control panel using either Wiegand or Clock & Data formats. The adaptable AY-25 is the answer for organizations seeking a uniform reader compatible with various international locations and mounting standards. Made of tough polycarbonate UV plastic and completely waterproof, the durable readers can withstand harsh weather conditions as well as tamper attempts.

Features

  • Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol
  • Read range between of 6 to 7 cm (2.4 to 2.8 in.)
  • Programmable output formats including standard Wiegand 26-Bit
  • Selectable LED control and buzzer control functions
  • Made of tough Polycarbonate plastic for improved performance in all weather conditions
View full details

Details

Specifications:

Operating Voltage Range: 5 to 16 VDC
Input Current: Standby: 35 mA , Max: 55 mA
Read Range: 70 mm
Inputs Programmable LED and buzzer control inputs, N.O, Dry Contact
Output format: Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data
Tamper Output: Open collector, active low, max. sink current 16 mA
Proximity Card Reader

Compatible Cards: MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal.
Dimensions: 5.7 x 1.7 x 0.8 in.
Product Warranty: 5-Year Limited Product Warranty
Device Certifications: IP65
