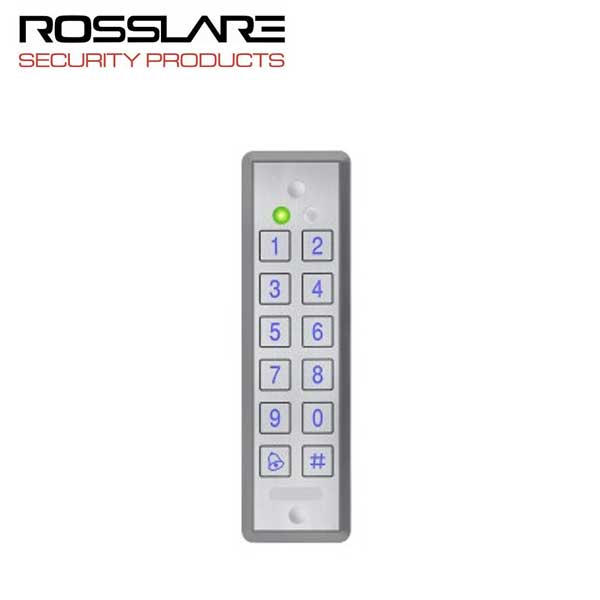

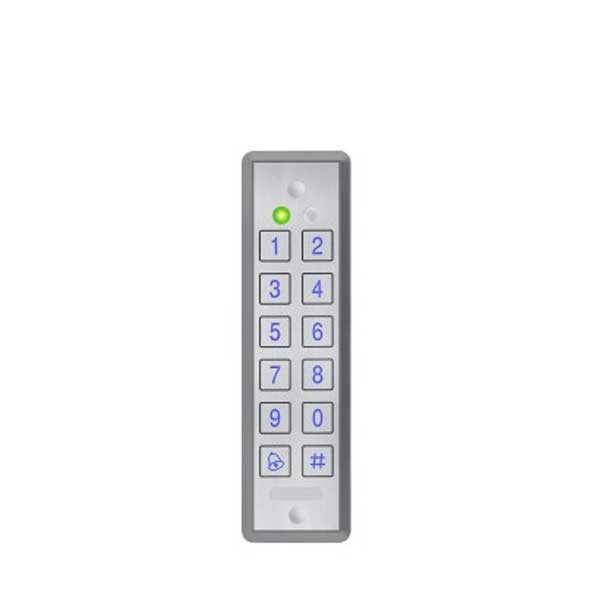

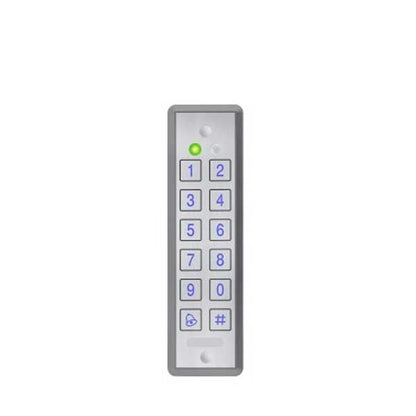

Rosslare - AYCE60N - Ultra Slim Piezo Mullion GoProx & Pin Reader - Convertible
Available to Order
SKU:
ROS-AYC-E60N
NSID:
25276
- $218.19
-
$219.42 - $218.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 60 Series is part of Rosslare’s goPROX product series supporting both Rosslare Proximity and Genuine HID Technology Prox. The reader output is Wiegand and Clock & Data. Keypad units are backlit. The operating voltage is 5-16 VDC. It is rated IP68. The unit can convert to a 500-user secured standalone controller when used with a PS-x25x series power supply.
Features:
- Ulta slim flush mount design
- Built-in piezoelectric keyoad for PIN code entry
- Programmable Patented blue backlit keypad
- Reads all HID Prox credentials (125 kHz FSK) using Genuine HID Technology
| Operating Voltage Range |
5–16 VDC |
| Input Current | 110 mA |
| Input Current Max | 130 mA |
| Keypad Transmit Format |
Programmable PIN code formats |
| PIN Code Formats |
8 selectable formats, from 1- to 8-digit PIN codes |
| Proximity Card Compatibility | Rosslare PROX/HID Prox cards |
| Operating Temperature | -22°F to 150°F (-30°C to 65°C) |
| Dimensions | 6.10 x 3 x 0.827 in. (155 x 1.73 x 0.35 mm) |
