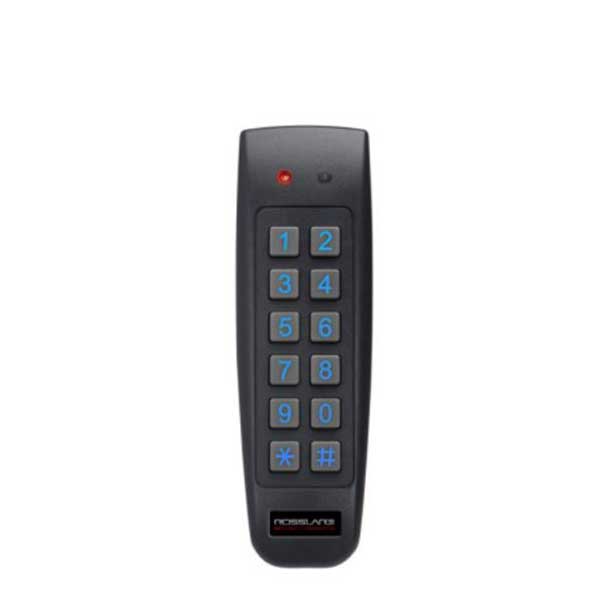

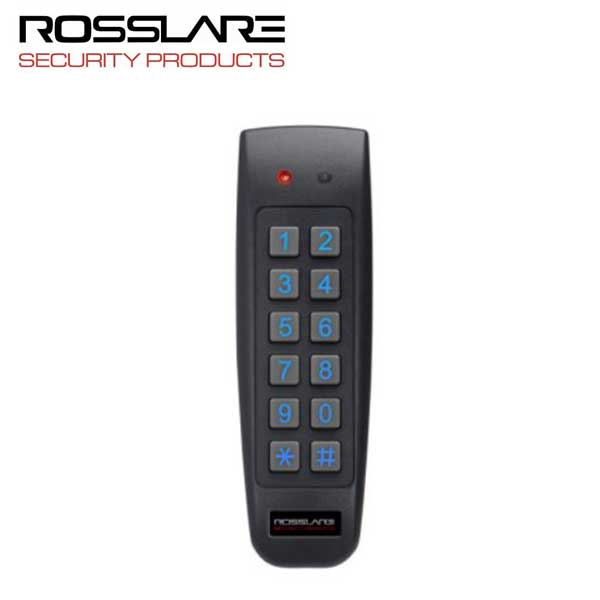

Rosslare - AYCG60 - Mullion Go Prox & PIN Convertible Reader - Controller
- Product SKU: ROS-AYC-G60
- NSID: 25284
-
ROS-AYC-G60
The ROS-AYC-G60 can read all HID Prox Cards/Tags (125 kHz FSK) using Genuine HID
Technology™ and outputs HID Prox card data in Wiegand according to the number of bits of data stored on the card. The units also read Rosslare PROX – EM Proximity Cards (125 kHz – EM) and can output EM card data as Wiegand 26-Bit, Clock
& Data, and Wiegand + PIN. As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits.Features:
- Advanced, secure, multi-application functionality for intelligent installations
- Smooth, attractive design, with all-weather indoor and outdoor operation
- 2 tri-colored LEDs and an integral sounder for programming and operation
- Unique backlit piezoelectric keys
- User-friendly menu based on keypad, LED, and sounder indicators
- Back and cover optical tamper detection and output
- Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology™ formats, Wiegand 26-Bit, Clock & Data)
- Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
- Advanced, secure, multi-application functionality for intelligent installations
| Operating Voltage Range |
5–16 VDC |
| Input Current | 100 mA |
| Input Current Max | 140 mA |
| LED Control Input |
Dry Contact N.O. |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
Downloads:
ROS-AYC-G60
The ROS-AYC-G60 can read all HID Prox Cards/Tags (125 kHz FSK) using Genuine HID
Technology™ and outputs HID Prox card data in Wiegand according to the number of bits of data stored on the card. The units also read Rosslare PROX – EM Proximity Cards (125 kHz – EM) and can output EM card data as Wiegand 26-Bit, Clock
& Data, and Wiegand + PIN. As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits.
Features:
- Advanced, secure, multi-application functionality for intelligent installations
- Smooth, attractive design, with all-weather indoor and outdoor operation
- 2 tri-colored LEDs and an integral sounder for programming and operation
- Unique backlit piezoelectric keys
- User-friendly menu based on keypad, LED, and sounder indicators
- Back and cover optical tamper detection and output
- Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology™ formats, Wiegand 26-Bit, Clock & Data)
- Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
| Operating Voltage Range |
5–16 VDC |
| Input Current | 100 mA |
| Input Current Max | 140 mA |
| LED Control Input |
Dry Contact N.O. |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
