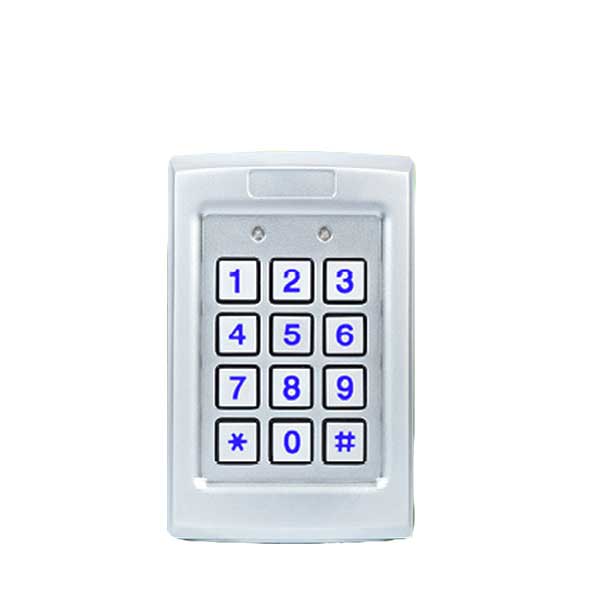

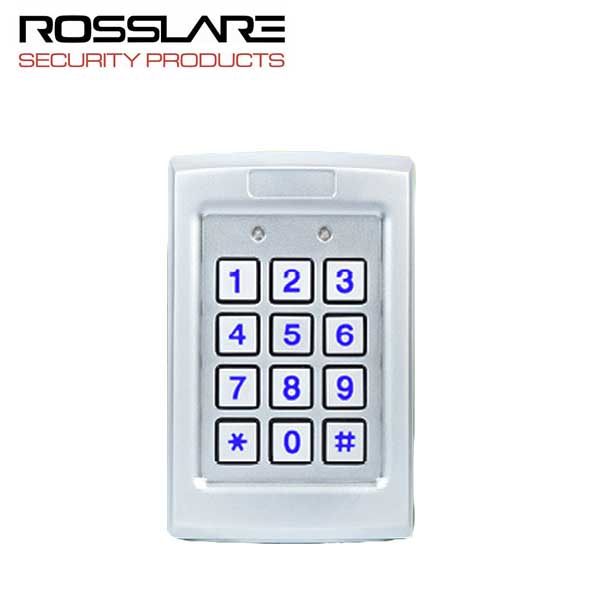

Rosslare - AYCQ54B - Convertible Anti Vandal Backlit PIN Reader

Available to Order
SKU: ROS-AYC-Q54B
NSID: 25287

Please Note: This product has a lead time

$152.20
$153.06
$152.20

The AYC-Q54B offers programmable PIN transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its extremely-strong metallic housing and waterproof enclosure for maximum durability. The backlit keypad, with its auto-dimming options,
is clearly visible day or night, making these units ideal for residential and commercial applications

Features:

  • Supports 4- to 8-digit PIN credentials
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, highly-visible blue backlit keypad
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User friendly menu, based on keypad, LED and sounder indicators
  • Back and cover optical tamper detection and output
  • Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Operating Voltage Range
5–16 VDC
Input Current 65 mA
Input Current Max 110 mA
Read Range 9 cm (3.5 in.)
Keypad 3x4 keys for local programming and 4- to 8-digit PIN codes entry
Control Input
Dry Contact N.O.
Operating Temperature -35°C to 66°C (-31°F to 151°F)
Dimensions 120 x 76 x 21 mm (4.72 x 3 x 0.83 in.)
