*Discontinued* Rosslare - T65N - Piezoelectric Proximity & PIN Reader - Convertible - 125kHz EM RFID - 5-16VDC - IP68 - Natural

*Discontinued* Rosslare - T65N - Piezoelectric Proximity & PIN Reader - Convertible - 125kHz EM RFID - 5-16VDC - IP68 - Natural

Discontinued
SKU ROS-AYC-T65N NSID 25293
$233.15$279.78On Sale You save $46.63 (17%)

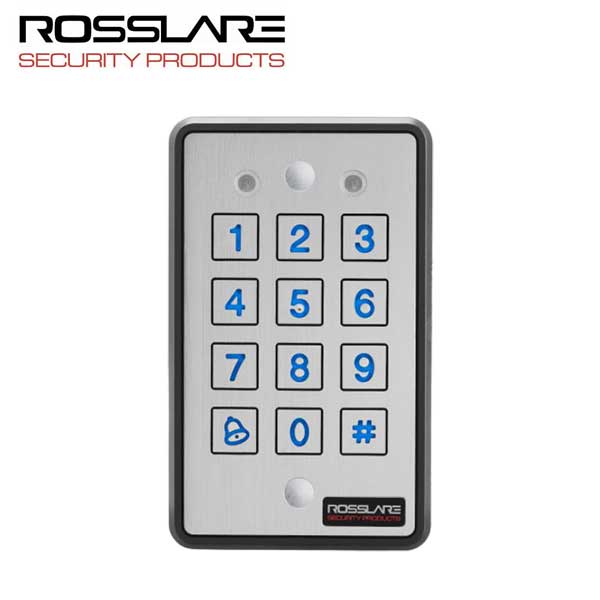

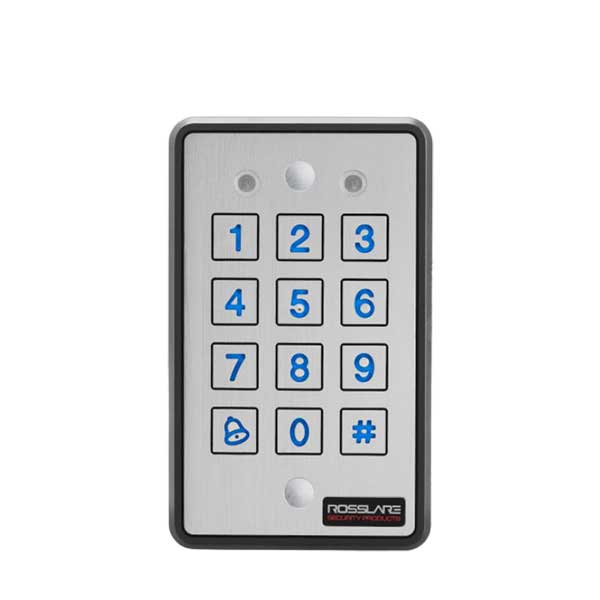

The AYC-T65N has a smooth metallic surface and high sensitive piezoelectric keys, now combined with illuminated digits and a proximity card reader makes this unit highly attractive for all-weather PIN & PROX access applications. Fully potted in a metal housing, the AYC-T65 offers an attractive yet durable solution for any need This unit can be operated as a keypad reader with any standard controller, and converts into a secure 500-user controller when connected to the PS-X25T intelligent power supply/relay unit.

Features:

  • Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, highly-visible unique illuminated piezoelectric keypad
  • Optical back tamper detection output
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User-friendly menu, based on LED and sounder indicators
  • Back and cover optical tamper detection and output.
  • Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays


View full details

Details

Specifications:

Operating Voltage Range:
 5–16 VDC
Input Current 92 mA @ 12 VDC,
Input Current Max 105 mA @ 16 VDC
Max Read Range 40 mm
Modulation: ASK at 125 kHz
Compatibility: All 26-Bit EM Cards
Tamper: Open collector, active low, 30 mA max sink current
Keypad: 3x4 blue illuminated keys for local programming and 4- to 8-digit PIN codes entry
Design: Epoxy-potted, fully-sealed in a rugged thin metal enclosure, highly strong construction and high sensitive piezoelectric keys. Suitable for extremely harsh environments.
LED Control:
 Dry Contact N.O.
Facility Code: Programmable
Read Card Format: Selectable Wiegand 26-Bit, Clock & Data
PIN Code Formats: 8 selectable formats, from 1- to 8-digit length PIN Codes
Controller Capacity: 500 users, single/dual PIN code each
User Levels: Normal, Secure and Master
Security Modes: Normal, Bypass and Secure
Rating: Meets IP68
Dimensions 121 x 70 x 8 mm (4.77 x 2.76 x 0.31 in.)
Manufacturer's Warranty: 5-Year Limited
