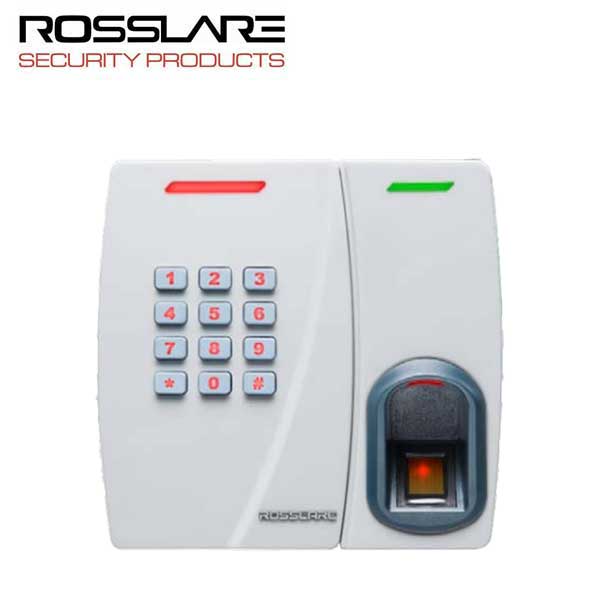

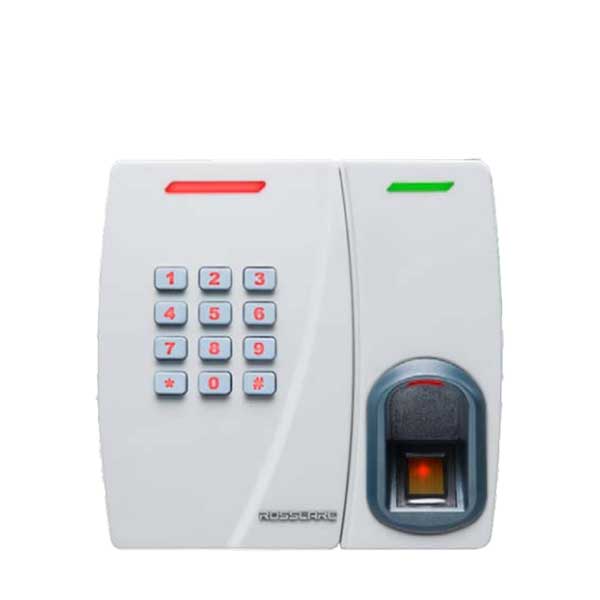

Rosslare - W6500 - Biometric PIN & Prox Reader/Controller - Convertible - Fingerprint Recognition - 500 Users - 10-16VDC
Rosslare - W6500 - Biometric PIN & Prox Reader/Controller - Convertible - Fingerprint Recognition - 500 Users - 10-16VDC
Rosslare - W6500 - Biometric PIN & Prox Reader/Controller - Convertible - Fingerprint Recognition - 500 Users - 10-16VDC
Rosslare - W6500 - Biometric PIN & Prox Reader/Controller - Convertible - Fingerprint Recognition - 500 Users - 10-16VDC
Rosslare - W6500 - Biometric PIN & Prox Reader/Controller - Convertible - Fingerprint Recognition - 500 Users - 10-16VDC

Rosslare - W6500 - Biometric PIN & Prox Reader/Controller - Convertible - Fingerprint Recognition - 500 Users - 10-16VDC

$651.47 $741.36
Availability: Available
Wishlist
  • Product SKU: ROS-AYC-W6500
  • NSID: 25294
  • ROS-AYC-W6500

    The AYC-W6500 is a dual-application and highly reliable biometric reader that also utilizes a fingerprint verification module. The sleek and compact design of Rosslare’s new convertible dual-application biometric reader/controller adds to its versatility and multi-faceted capabilities. When connected to a Rosslare intelligent Secure Power Supply, it converts into a 500-user fully featured secure access controller. Simple to install and use, the AYC-W6500 offers a modern design including a backlit keypad, convenient finger placement and small footprint

    Features:

    • Programmable PIN transmission modes including options for key stream, binary, and parity.
    • LED control input
    • Supports Wiegand 26-Bit, or Clock & Data transmission formats.
    • Programmable PIN code length
    •  Capacity of 500 users
    • Programmable Auxiliary input mode
    • Programmable PIN code length, from 4 to 8 digits
    • Programmable Lock Strike Release, Siren, and alarm delay timers
    • Two User Levels: Normal User, Secure User



    $651.47
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Operating Voltage Range
Reader mode: 10 to 16VDC from a standard controller
Controller: From power supply
Input Current Standby: 140 mA at 12 VDC, Max: 330 mA at 16 VDC
Tamper Optical back tamper sensor, O.C. active low, 32 mA max. sink
current
Sensor ESD Rating ±15KV (Fingerprint Sensor)
Operation Modes Normal: PIN or Proximity Card + Fingerprint Verification
Secure: PIN + Proximity Card + Fingerprint Verification
Fingerprint Verification Verification Time: Less than 1 second
Verification Method: 1:1
Read Range 75 mm (2.95 in.), ASK at 125 kHz
Keypad 3x4 Backlit keys for local programming, 4-8 digit PIN code
Reader Output Formats:
Wiegand 26-Bit, Clock & Data, RS-232 (Host Only)
Reader PIN Code Format 4 selectable transmission formats:
- Multiple keys, Wiegand 26 bits
- Single key, 6 bits, Rosslare format
- Single key, 6 and 8 bits Wiegand
Controller Capacity 500 Users. Dual template, PIN code and proximity card each
Manufacturer Warranty 2-Year Limited Warranty
Dimensions 144mm H x 104mm L x 34mm W (5.7 in. x 4.1 in. x 1.4 in.)



Downloads:

ROS-AYC-W6500

The AYC-W6500 is a dual-application and highly reliable biometric reader that also utilizes a fingerprint verification module. The sleek and compact design of Rosslare’s new convertible dual-application biometric reader/controller adds to its versatility and multi-faceted capabilities. When connected to a Rosslare intelligent Secure Power Supply, it converts into a 500-user fully featured secure access controller. Simple to install and use, the AYC-W6500 offers a modern design including a backlit keypad, convenient finger placement and small footprint

Features:

  • Programmable PIN transmission modes including options for key stream, binary, and parity.
  • LED control input
  • Supports Wiegand 26-Bit, or Clock & Data transmission formats.
  • Programmable PIN code length
  •  Capacity of 500 users
  • Programmable Auxiliary input mode
  • Programmable PIN code length, from 4 to 8 digits
  • Programmable Lock Strike Release, Siren, and alarm delay timers
  • Two User Levels: Normal User, Secure User


Specifications:

Operating Voltage Range
Reader mode: 10 to 16VDC from a standard controller
Controller: From power supply
Input Current Standby: 140 mA at 12 VDC, Max: 330 mA at 16 VDC
Tamper Optical back tamper sensor, O.C. active low, 32 mA max. sink
current
Sensor ESD Rating ±15KV (Fingerprint Sensor)
Operation Modes Normal: PIN or Proximity Card + Fingerprint Verification
Secure: PIN + Proximity Card + Fingerprint Verification
Fingerprint Verification Verification Time: Less than 1 second
Verification Method: 1:1
Read Range 75 mm (2.95 in.), ASK at 125 kHz
Keypad 3x4 Backlit keys for local programming, 4-8 digit PIN code
Reader Output Formats:
Wiegand 26-Bit, Clock & Data, RS-232 (Host Only)
Reader PIN Code Format 4 selectable transmission formats:
- Multiple keys, Wiegand 26 bits
- Single key, 6 bits, Rosslare format
- Single key, 6 and 8 bits Wiegand
Controller Capacity 500 Users. Dual template, PIN code and proximity card each
Manufacturer Warranty 2-Year Limited Warranty
Dimensions 144mm H x 104mm L x 34mm W (5.7 in. x 4.1 in. x 1.4 in.)
