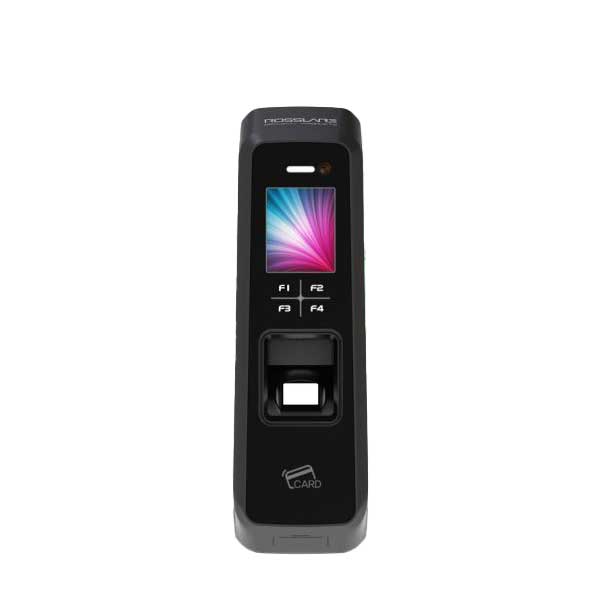

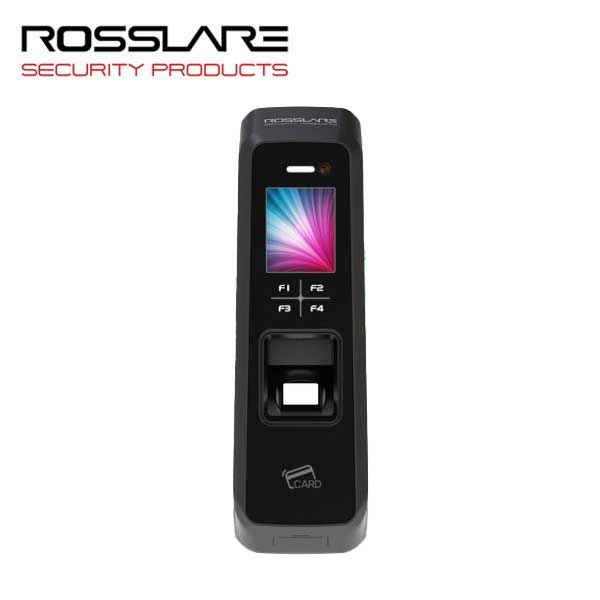

*Discontinued* Rosslare - B9250BT - Access Control Fingerprint & Card Reader - 10,000 users - Bluetooth - Camera & LCD - 13.56 MHz MIFARE - 12VDC - IP65
*Discontinued* Rosslare - B9250BT - Access Control Fingerprint & Card Reader - 10,000 users - Bluetooth - Camera & LCD - 13.56 MHz MIFARE - 12VDC - IP65
AY-B9250BT is a professional-grade fingerprint reader with a high-speed optical sensor with capacity of 20,000 templates featuring powerful algorithms with liveness check and encrypted data storage. The AY-B9250BT has a built-in 13.56 MHz MIFARE RFID card reader, and features an integrated Rosslare BLE-ID™ reader. It has RS-485, TCP/IP, and Wiegand 26- or 34-bit connectivity. The terminal can be set up easily using the AxTraxNG Client software. Alternatively, it is compatible with Rosslare’s standalone RosslareBio 9000 management software that is perfect for interfacing with existing third-party systems.
This reader comes with Bluetooth credentials, which allows users ease of access wherever applied. Click these links to download the app on either IOS or Android.
Features
- Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing.
- Capacity of 20,000 templates 1:N and support for 1:1 Matching, an encrypted memory, Built-in full color LCD, a camera for transaction capture, and 4 touch buttons
- High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
- Built-in TCP/IP, RS-485, and Wiegand 26 or 34-bit output connectivity
- Non-volatile event log of up to 100,000 entries
- IP65 rated for indoor and outdoor use
- Support for Rosslare BLE-IDTM smartphone credentials (Both iOS and Android)
- Built-in tamper and buzzer, output relay for controlling a local device
- Modern design that blends into almost any architectural challenge
Details
Specifications:
| Input Voltage: | Regulated DC12V~24V ± 5% Adaptor |
| Input Current: | DC12V Input : MAX 400mA |
| Technology: | Optical |
| Image Resolution: | 500 DPI |
| Scan Area: | 15 x 18 mm |
| Liveness Detection: | Yes – Detects and rejects fake fingerprints (silicon, rubber, paper, etc.) |
| Capacity: | 20,000 templates (up to 10,000 users) Time: 1:N < 1 sec (4,000 templates) |
| MIFARE Reader: |
Built-in RFID card reader for MIFARE (13.56 MHz) |
| Bluetooth Credentials: | Supports Bluetooth 4.0 Rosslare BLE-ID™ credential for iOS and Android |
| Bluetooth Admin: | Supports Bluetooth 4.0 BLE-Admin™ configuration apps for iOS and Android |
| Ingress Protection: | IP65 |
| LCD / Camera / Keys | Full color LCD 128 x 160 px, camera for 10,000 Image logs, and 4 touch keys |
| CPU/ | ATMEL 400 MHz |
| Memory: | 64MB DRAM, 256MB flash |
| Communication: | Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE) |
| LED-Indicator / Buzzer: | 2 x RGB LED and one internal buzzer for audible indication |
| Relay Output: | 1 x Form C Relay (N.O. / N.C.) rated 1A @ 30V for Lock Strike. |
| Inputs: | 4 x inputs ( 3 door monitor, 1 exit ) |
| Dimensions: | 58 x 191 x 62 mm |
| Interoperability: | ISO 19794-2, ANSI378, Template Support |
| Certifications: | CE, FCC |
