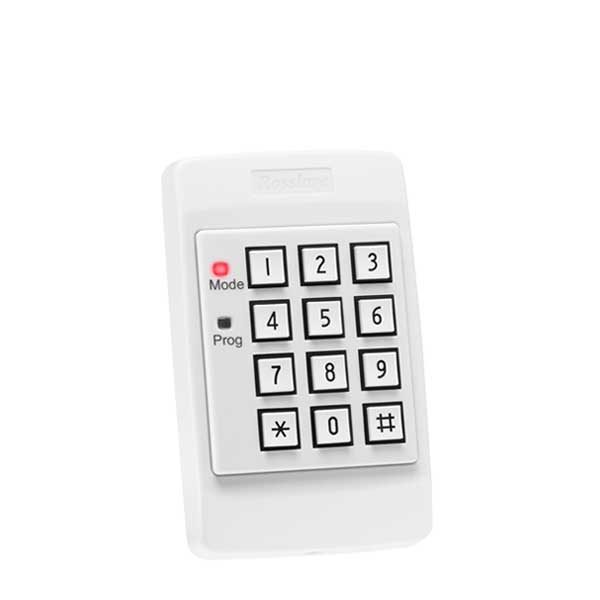

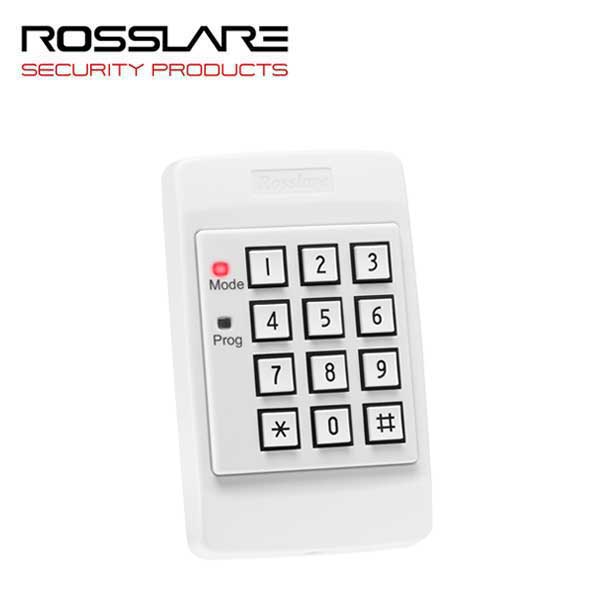

Rosslare - D19 - PIN & Proximity Card Reader - Indoor - 125kHz EM - 5-16VDC
- Product SKU: ROS-AY-D19
- NSID: 25295
-
ROS-AY-D19
Rosslare’s AY-D19 Indoor PIN + Proximity Reader is designed with a focus on high quality and reliability. The AY-D19 is packed with advanced features such as an ultra-bright led indicator, tamper detection feature, bell button, membrane keypad, and an internal buzzer. The AY-D19 supports multiple proximity card and keypad formats to provide a high level of compatibility and connectivity with host controllers.
Features:
- Wiegand 26-Bit, Clock & Data reader
- Reading distance: 80 mm (3.15 in.)
- Internal buzzer provides audible interface feedback
- Fits US Gang box
- 4-wire terminal-block connections
- Ultra bright LED indicator
- Indoor use
- Easy installation
Specifications:
| Operating Voltage Range: | 5–16 VDC, from a regulated power supply (power usually supplied from host controller) |
| Input Current: | Standby: 55 mA. Maximum: 100 mA |
| LED Control Input: | Dry Contact, N.O |
| Tamper Output: | Open collector, active low, maximum sink current is 32 mA |
| Read Range: | 80 mm (3.15 in.) |
| Modulation Options: | ASK at 125 KHz |
| Transmission Formats: | Wiegand 26-Bit: ASK at 125KHz, Clock & Data |
| Compatible Cards: | All 26-Bit EM cards |
| Transmission Formats: | Multiple |
| RFI Protection: | > 20 V/m up to 1000 MHz |
| Dimensions (L x W x D): | 4.80 x 2.95 x 0.94 in. |
| Product Warranty: | 2-year Limited Product Warranty |
