Rosslare

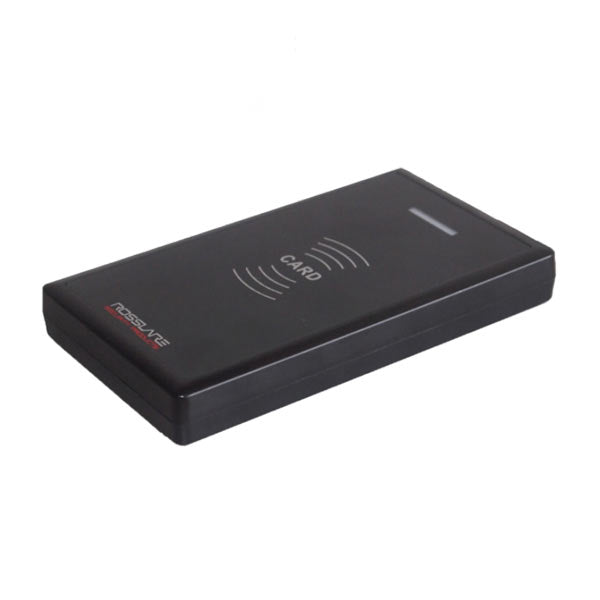

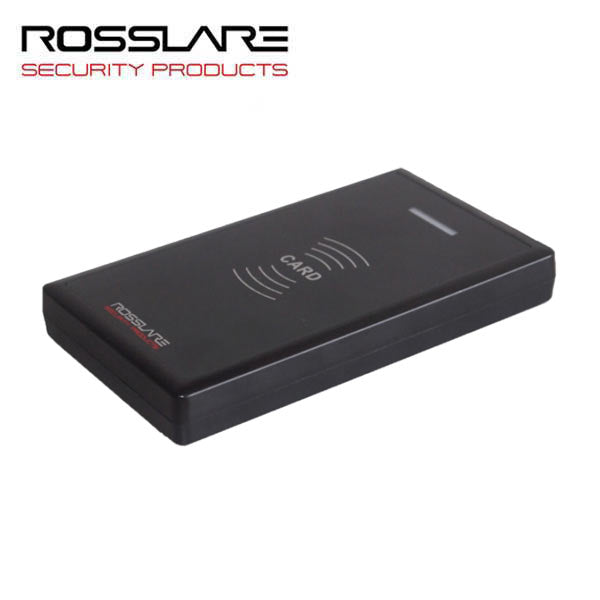

Rosslare - DR-12C - EM Card Desktop Reader - Compatible w/ AxTraxNG

Rosslare - DR-12C - EM Card Desktop Reader - Compatible w/ AxTraxNG

In stock
SKU ROS-DR-12C NSID 25337
$120.47$144.56On Sale You save $24.09 (17%)
Get it shipped Today! Order within:

Rosslare’s DR-12C is an advanced EM Card Desktop Reader. It reads the EM card identification number and transmits it to connected access control software, such as Rosslare’s AxTraxNG. It has a slim and attractive design and is built for convenience and portability. With its USB computer interface, it is quick and easy to install and runs without any additional power source. Designed to sit safely on any desktop, the DR-12C is sturdily built, with surface-gripping rubber feet.

Features

  • Compatible with Rosslare AxTraxNG management system
  • Supports USB 2.0 standard (compatible with USB 1.1), meets the EIA standard
  • Reads EM cards ID
  • Bi-colored LED for status notification
  • Surface-gripping rubber feet

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Operating Voltage 5 VDC (USB powered)
Operating Current
 Standby: 70 mA Maximum: 90 mA
Supported Transponders
 EM Cards
Read Range
 Up to 5 cm (2 in.)
Operation Frequency
 125 kHz
Output Format Wiegand 26-Bit
Operating Environment Indoor use
Operating Temperature Range 0°C to 63°C (32°F to 145°F)
Storage Temperature Range -20°C to 63°C (-4°F to 145°F)
Relative Humidity Range 0 to 95% (non-condensing)
Weight 130 g (4.6 oz)
Dimensions (L x W x H) 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
Warranty
 2-Year Limited Manufacture Warranty
