Rosslare - DR-U955BT - Multi-Format Desktop Reader - Compatible w/ AxTraxNG - Bluetooth
Rosslare - DR-U955BT - Multi-Format Desktop Reader - Compatible w/ AxTraxNG - Bluetooth
Rosslare - DR-U955BT - Multi-Format Desktop Reader - Compatible w/ AxTraxNG - Bluetooth
Rosslare - DR-U955BT - Multi-Format Desktop Reader - Compatible w/ AxTraxNG - Bluetooth
Rosslare - DR-U955BT - Multi-Format Desktop Reader - Compatible w/ AxTraxNG - Bluetooth

Rosslare - DR-U955BT - Multi-Format Desktop Reader - Compatible w/ AxTraxNG - Bluetooth

$259.68 $328.02
Availability: Available
Wishlist
  • Product SKU: ROS-DR-U955BT
  • NSID: 25341
  • ROS-DR-U955BT

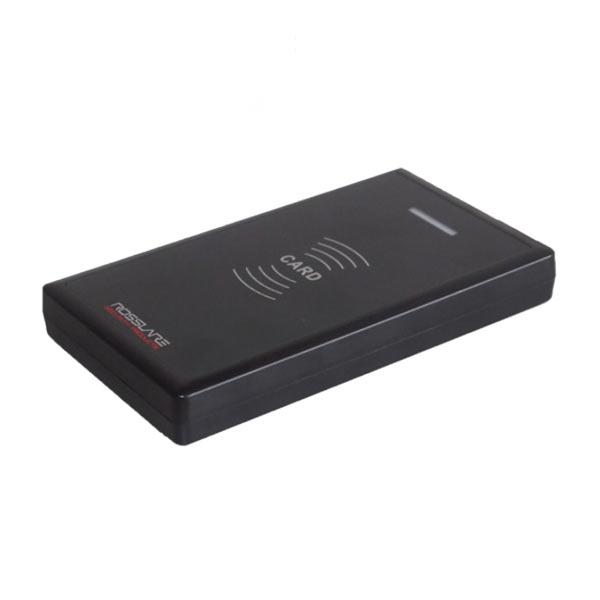

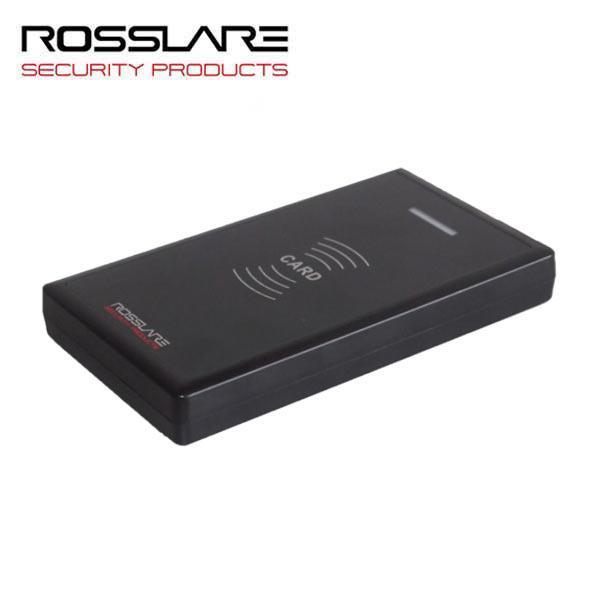

    Rosslare’s DR-U955BT is an advanced desktop reader for MIFARE Classic EV1, MIFARE DESFire EV1, UHF, and BLE. It reads the ID data of the credential and transmits the relevant ID data to any connected access control software, such as Rosslare’s AxTraxNG. It has a slim and attractive design and is built for convenience and portability. With its USB computer interface, it is quick and easy to install and runs without any additional power source.

    Using the BLE-Admin or My BLE-ID apps, the reader can function like other Rosslare BLE readers and can transmit the BLE ID to the reader. The Hardware Configuration Tool (HCT) can be used to configure the reader’s specifications, such as the Wiegand format used. The reader reads the CSN ID of each credential (MIFARE, UHF, BLE) and transmits it to the software with the bit length pre-configured by the user.

    Features

    • Compatible with Rosslare AxTraxNG management system
    • Enrolls 13.56 MHz smart card Unique ID (UID) and can read the UID of a range of credentials
    • Enrolls UHF-ID – Reads a wide range of passive transponders with ISO 18092 (NFCIP-1) and ISO/IEC 18000-6C credential support
    • Enrolls Bluetooth – Rosslare BLE-ID credential directly into AxTraxNG Server or directly into third-party software systems
    • Enables access control with multi-credential authentication factors
    • USB 2.0 compliant and USB powered
    • Mobile App


    $259.68
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

Operating Voltage 5 VDC (USB powered)
Operating Current
Standby: 250 mA Maximum: 300 mA
System Compatibility Compatible with a Rosslare's AxTraxNG, as well as many third-party access control software.
Supported Credentials

13.56 MHz (RFID) UID: MIFARE Ultralight / C (Android), MIFARE Classi (iOS), MIFARE Plus S / Plus (Android), MIFARE DESFire EV1 (iOS), ISO 14443A and 14443B, ISO 15693, HIDGlobal iClass, ISO 18092 (NFCIP-1), FeliCa (14443C Sony)
UHF CREDENTIALS: ISO-18000 (6C) (Windshield), Hard Tags, Vandal Evident
ROSSLARE BLE-ID: APP-A411, APP-B411, APP-A412, APP-A412

Read Range
UHF and MIFARE: Up to 5 cm (2 in.)
BLE: Up to 6 m (19.7 ft)
Operation Frequency
RFID: 13.56 MHz
DR-U955BT US: 902–928 MHz (America) RFID
DR-U955BT EU: 865–868 MHz (Europe) RFID
Bluetooth: 2.402-2.480 GHz
Output Format
Supports Wiegand 26-Bit to 64-Bit
Operating Environment Indoor use
Operating Temperature Range 0°C to 63°C (32°F to 145°F)
Storage Temperature Range -20°C to 63°C (-4°F to 145°F)
Relative Humidity Range 0 to 95% (non-condensing)
Weight 130 g (4.6 oz)
Dimensions (L x W x H) 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
Warranty
2-Year Limited Manufacture Warranty


Downloads

ROS-DR-U955BT

Rosslare’s DR-U955BT is an advanced desktop reader for MIFARE Classic EV1, MIFARE DESFire EV1, UHF, and BLE. It reads the ID data of the credential and transmits the relevant ID data to any connected access control software, such as Rosslare’s AxTraxNG. It has a slim and attractive design and is built for convenience and portability. With its USB computer interface, it is quick and easy to install and runs without any additional power source.

Using the BLE-Admin or My BLE-ID apps, the reader can function like other Rosslare BLE readers and can transmit the BLE ID to the reader. The Hardware Configuration Tool (HCT) can be used to configure the reader’s specifications, such as the Wiegand format used. The reader reads the CSN ID of each credential (MIFARE, UHF, BLE) and transmits it to the software with the bit length pre-configured by the user.

Features

  • Compatible with Rosslare AxTraxNG management system
  • Enrolls 13.56 MHz smart card Unique ID (UID) and can read the UID of a range of credentials
  • Enrolls UHF-ID – Reads a wide range of passive transponders with ISO 18092 (NFCIP-1) and ISO/IEC 18000-6C credential support
  • Enrolls Bluetooth – Rosslare BLE-ID credential directly into AxTraxNG Server or directly into third-party software systems
  • Enables access control with multi-credential authentication factors
  • USB 2.0 compliant and USB powered
  • Mobile App

Specifications

Operating Voltage 5 VDC (USB powered)
Operating Current
Standby: 250 mA Maximum: 300 mA
System Compatibility Compatible with a Rosslare's AxTraxNG, as well as many third-party access control software.
Supported Credentials

13.56 MHz (RFID) UID: MIFARE Ultralight / C (Android), MIFARE Classi (iOS), MIFARE Plus S / Plus (Android), MIFARE DESFire EV1 (iOS), ISO 14443A and 14443B, ISO 15693, HIDGlobal iClass, ISO 18092 (NFCIP-1), FeliCa (14443C Sony)
UHF CREDENTIALS: ISO-18000 (6C) (Windshield), Hard Tags, Vandal Evident
ROSSLARE BLE-ID: APP-A411, APP-B411, APP-A412, APP-A412

Read Range
UHF and MIFARE: Up to 5 cm (2 in.)
BLE: Up to 6 m (19.7 ft)
Operation Frequency
RFID: 13.56 MHz
DR-U955BT US: 902–928 MHz (America) RFID
DR-U955BT EU: 865–868 MHz (Europe) RFID
Bluetooth: 2.402-2.480 GHz
Output Format
Supports Wiegand 26-Bit to 64-Bit
Operating Environment Indoor use
Operating Temperature Range 0°C to 63°C (32°F to 145°F)
Storage Temperature Range -20°C to 63°C (-4°F to 145°F)
Relative Humidity Range 0 to 95% (non-condensing)
Weight 130 g (4.6 oz)
Dimensions (L x W x H) 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
Warranty
2-Year Limited Manufacture Warranty


Downloads
