Rosslare - EX01 - Push To Exit Surface Mount Push Button - Mechanical - N.O. Connection - 30 VDC
- Product SKU: ROS-EX-01
- NSID: 25342
-
ROS-EX-01

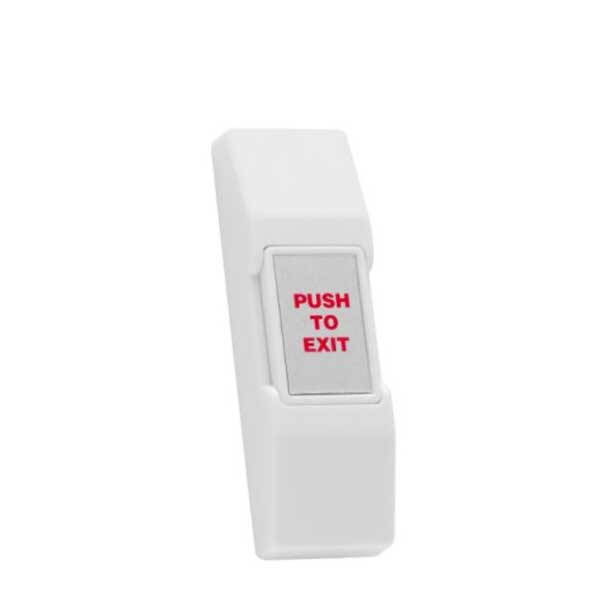

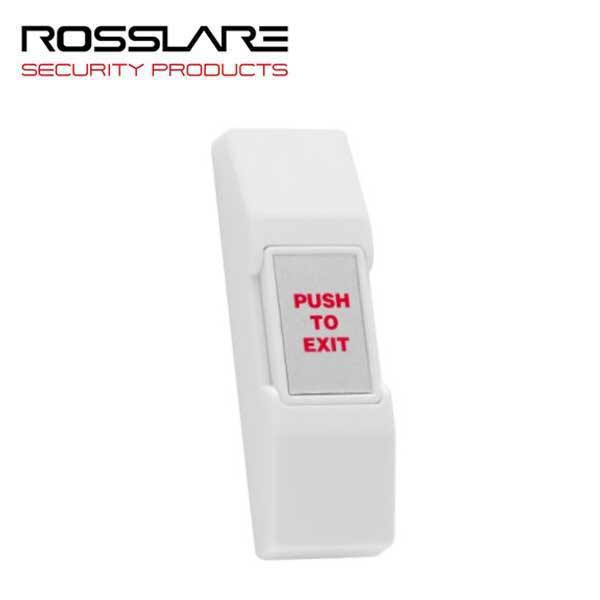

The Rosslare Security EX01 is a plastic push to exit button that connects to a controller's input, either NO or NC connection. Rosslare EX (REX) buttons are a powerful line of high-quality piezoelectric and infrared no-touch switches. Designed for industrial and this outdoor series combines superior build quality, no moving parts, a long life span, professional features and mounting flexibility – making it ideal for demanding applications, from heavy machinery and mechanical operation panels, to access control systems or direct door control.Features:
- Normal Open (N.O.) and Normal Close (N.C.) contact types
- Labels/graphics can be customized upon request
- Rugged and easy installation designs to fit various applications
- Normal Open (N.O.) and Normal Close (N.C.) contact types
Specifications:
| Type |
Mechanical |
| Switch Input | 30 VDC (typ.) |
| Switch Current | 3 A (typ.) |
| Contact | SPDT (N.O., N.C.) |
| Operating Voltage |
30 VDC |
| Application | Provides reliable and durable mechanical push buttons for access control systems, |
| Label | Push-To-Exit |
| Dimensions | 76.20 x 23.20 x 14.00 mm (3.0 x 0.9 x 0.7 in.) |
| Manufacturer's Warranty: | Limited Product Warranty |
Downloads:
ROS-EX-01
The Rosslare Security EX01 is a plastic push to exit button that connects to a controller's input, either NO or NC connection. Rosslare EX (REX) buttons are a powerful line of high-quality piezoelectric and infrared no-touch switches. Designed for industrial and this outdoor series combines superior build quality, no moving parts, a long life span, professional features and mounting flexibility – making it ideal for demanding applications, from heavy machinery and mechanical operation panels, to access control systems or direct door control.
Features:
- Normal Open (N.O.) and Normal Close (N.C.) contact types
- Labels/graphics can be customized upon request
- Rugged and easy installation designs to fit various applications
Specifications:
| Type |
Mechanical |
| Switch Input | 30 VDC (typ.) |
| Switch Current | 3 A (typ.) |
| Contact | SPDT (N.O., N.C.) |
| Operating Voltage |
30 VDC |
| Application | Provides reliable and durable mechanical push buttons for access control systems, |
| Label | Push-To-Exit |
| Dimensions | 76.20 x 23.20 x 14.00 mm (3.0 x 0.9 x 0.7 in.) |
| Manufacturer's Warranty: | Limited Product Warranty |
