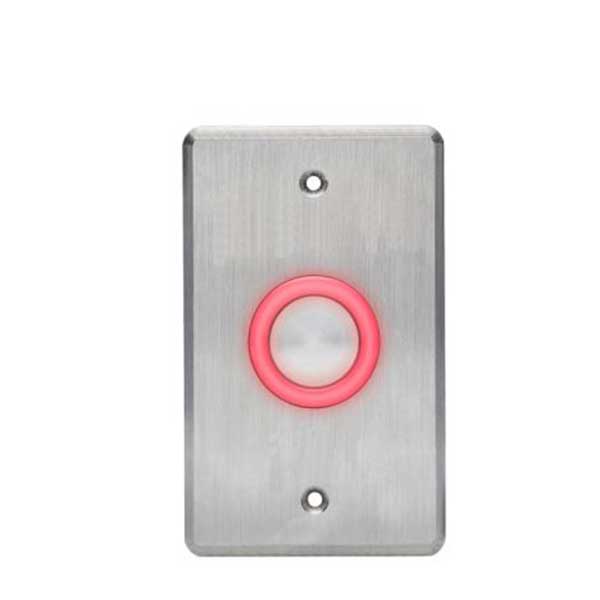

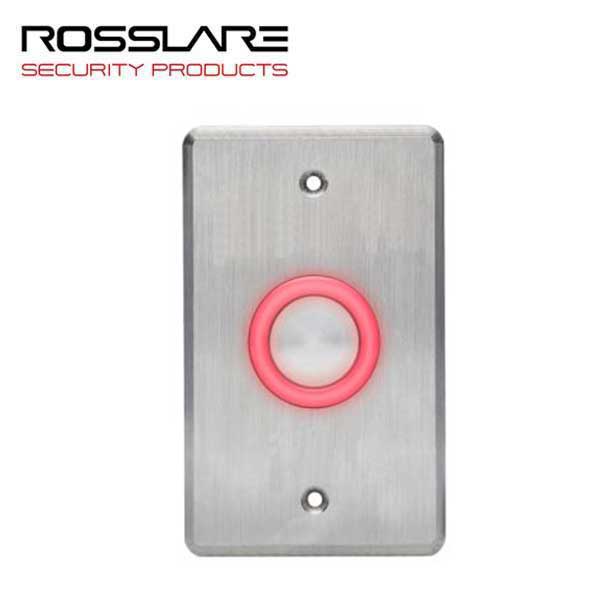

Rosslare - EX06OO - Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC
Rosslare - EX06OO -  Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC
Rosslare - EX06OO -  Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC
Rosslare - EX06OO -  Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC
Rosslare - EX06OO -  Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC

Rosslare - EX06OO - Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC

$66.65 $75.85
Availability: Available
Wishlist
  • Product SKU: ROS-EX-06OO
  • NSID: 25345
  • ROS-EX-06OO

    Rosslare's EX-06OO is a part of a powerful line of high quality piezoelectric
    switches. Designed in mind of industrial and high-risk environmental
    requirements, the EX-06OO will adapt well in mines, oil rigs & refineries, military
    installations and more. The switch can be used in many hi-demanding
    applications, from heavy machinery and mechanical operation panels, to access
    control systems or direct door control.


    The EX-06OO with no moving parts is extremely reliable, resilient and robust yet is
    encased in an elegant design within a modern case suitable for use by
    architects and designers.

    Features:

    • Solid state piezoelectric switch technology
    • N.O. and N.C. relay pulse simply by the touch of a finger
    • Output and Indication Toggle Option
    • Adjustable Output and LED Indication Time of 1 to 60 Seconds
    • Light Ring Status Indicator and Accidental Activation Hindrance
    • Jumper Selectable Illumination Status Red Green, or No Illumination



    $66.65
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs





Specifications:

Type
Piezo
Sensor / Switch Type
Analog (Toggle)
Operating Voltage
10-24 VDC
Led Type
Ring
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty



Downloads:

ROS-EX-06OO

Rosslare's EX-06OO is a part of a powerful line of high quality piezoelectric
switches. Designed in mind of industrial and high-risk environmental
requirements, the EX-06OO will adapt well in mines, oil rigs & refineries, military
installations and more. The switch can be used in many hi-demanding
applications, from heavy machinery and mechanical operation panels, to access
control systems or direct door control.


The EX-06OO with no moving parts is extremely reliable, resilient and robust yet is
encased in an elegant design within a modern case suitable for use by
architects and designers.

Features:

  • Solid state piezoelectric switch technology
  • N.O. and N.C. relay pulse simply by the touch of a finger
  • Output and Indication Toggle Option
  • Adjustable Output and LED Indication Time of 1 to 60 Seconds
  • Light Ring Status Indicator and Accidental Activation Hindrance
  • Jumper Selectable Illumination Status Red Green, or No Illumination






Specifications:

Type
Piezo
Sensor / Switch Type
Analog (Toggle)
Operating Voltage
10-24 VDC
Led Type
Ring
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty



Downloads:
