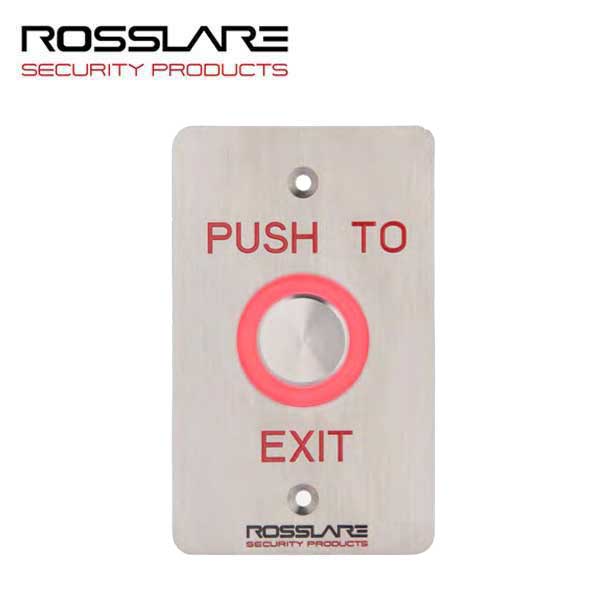

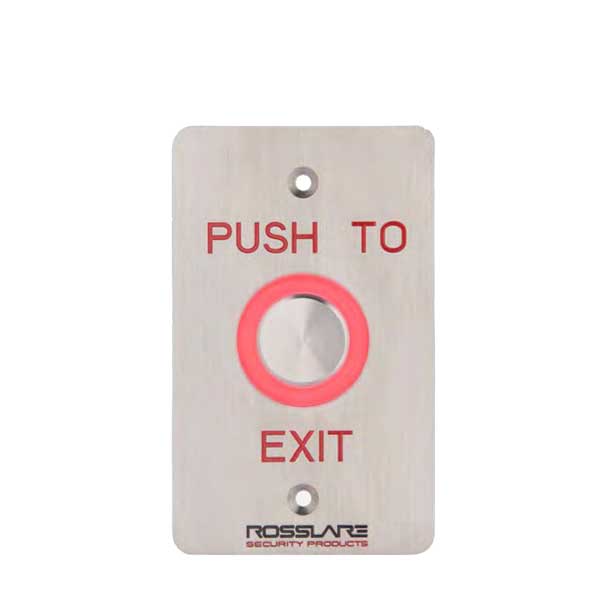

Rosslare - EX06EO - Request To Exit Button w/Toggle - Analog Piezo- 10-24 VDC
Rosslare - EX06EO -  Request To Exit Button w/Toggle - Analog Piezo- 10-24 VDC
Rosslare - EX06EO -  Request To Exit Button w/Toggle - Analog Piezo- 10-24 VDC
Rosslare - EX06EO -  Request To Exit Button w/Toggle - Analog Piezo- 10-24 VDC
Rosslare - EX06EO -  Request To Exit Button w/Toggle - Analog Piezo- 10-24 VDC

Rosslare - EX06EO - Request To Exit Button w/Toggle - Analog Piezo- 10-24 VDC

$66.65 $75.85
Availability: In Stock
Wishlist
  • Product SKU: ROS-EX-06EO
  • NSID: 25344
  • ROS-EX-06EO


    Rosslare’s EX-06 is a request to exit button. It is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated, anti-vandal, timed analog switch, designed for both indoor and outdoor use.

    The EX-06 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslares ISO 9001:2008 Certified Quality standards.

    Features:

    • Solid state piezoelectric switch technology
    • N.O. and N.C. relay pulse simply by the touch of a finger
    • Output and Indication Toggle Option
    • Adjustable Output and LED Indication Time of 1 to 60 Seconds
    • Light Ring Status Indicator and Accidental Activation Hindrance
    • Jumper Selectable Illumination Status Red Green, or No Illumination

    $66.65
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs





Specifications:

Type
Piezo
Sensor / Switch Type
Analog (Toggle)
Operating Voltage
10-24 VDC
Led Type
Ring
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty



Downloads:

ROS-EX-06EO


Rosslare’s EX-06 is a request to exit button. It is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated, anti-vandal, timed analog switch, designed for both indoor and outdoor use.

The EX-06 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslares ISO 9001:2008 Certified Quality standards.

Features:

  • Solid state piezoelectric switch technology
  • N.O. and N.C. relay pulse simply by the touch of a finger
  • Output and Indication Toggle Option
  • Adjustable Output and LED Indication Time of 1 to 60 Seconds
  • Light Ring Status Indicator and Accidental Activation Hindrance
  • Jumper Selectable Illumination Status Red Green, or No Illumination





Specifications:

Type
Piezo
Sensor / Switch Type
Analog (Toggle)
Operating Voltage
10-24 VDC
Led Type
Ring
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty
