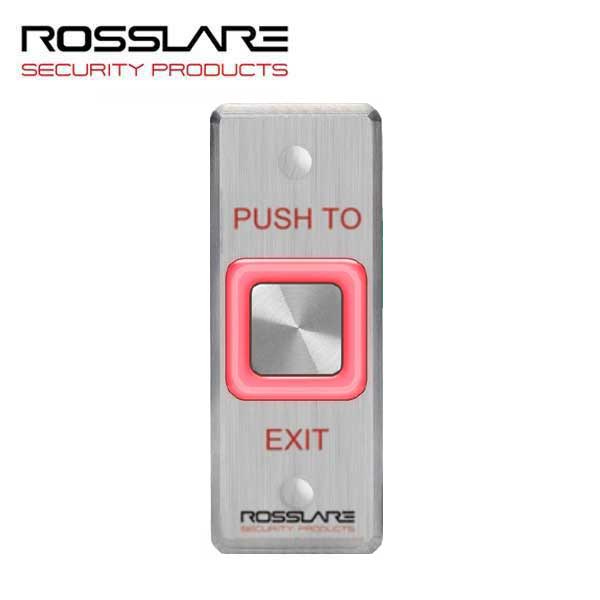

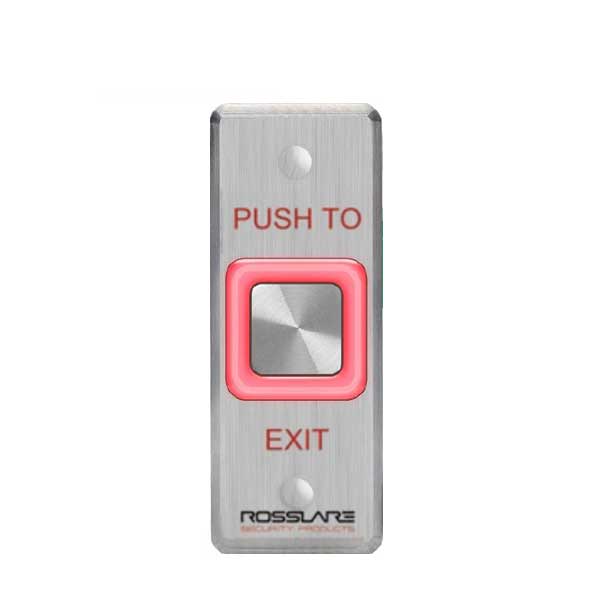

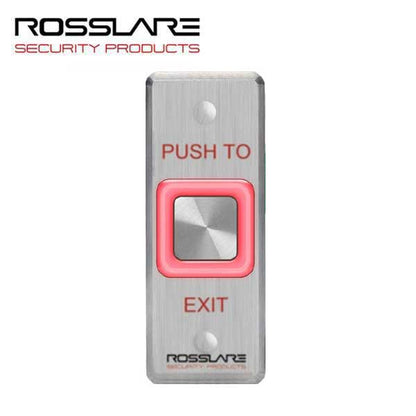

Rosslare - EX17EO - Request To Exit Button w/Toggle - Mullion Size - Digital Piezo- 12-24 VDC
Rosslare - EX17EO - Request To Exit Button w/Toggle - Mullion Size - Digital Piezo- 12-24 VDC
Rosslare - EX17EO - Request To Exit Button w/Toggle - Mullion Size - Digital Piezo- 12-24 VDC
Rosslare - EX17EO - Request To Exit Button w/Toggle - Mullion Size - Digital Piezo- 12-24 VDC
Rosslare - EX17EO - Request To Exit Button w/Toggle - Mullion Size - Digital Piezo- 12-24 VDC

Rosslare - EX17EO - Request To Exit Button w/Toggle - Mullion Size - Digital Piezo- 12-24 VDC

$69.83 $79.48
Availability: Available
Wishlist
  • Product SKU: ROS-EX-17EO
  • NSID: 25350
  • ROS-EX-17EO

    Rosslare's EX-17EO electronic switches enable the access control of a magnetic lock or electric lock strike. The EX-17EO are heavy duty, illuminated, vandal resistant, analog timed switches, designed for both indoor and outdoor use.

    Features:

    • Solid state piezoelectric switch technology
    • N.O. and N.C. relay pulse simply by the touch of a finger
    • Output and Indication Toggle Option
    • Adjustable Output and LED Indication Time of 1 to 60 Seconds
    • Light Ring Status Indicator and Accidental Activation Hindrance
    • Jumper Selectable Illumination Status Red Green, or No Illumination



    $69.83
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs





Specifications:

Type
Piezo
Sensor / Switch Type
Digital Toggle
Operating Voltage
12-24 VDC
Led Type
Square
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty



Downloads:

ROS-EX-17EO

Rosslare's EX-17EO electronic switches enable the access control of a magnetic lock or electric lock strike. The EX-17EO are heavy duty, illuminated, vandal resistant, analog timed switches, designed for both indoor and outdoor use.

Features:

  • Solid state piezoelectric switch technology
  • N.O. and N.C. relay pulse simply by the touch of a finger
  • Output and Indication Toggle Option
  • Adjustable Output and LED Indication Time of 1 to 60 Seconds
  • Light Ring Status Indicator and Accidental Activation Hindrance
  • Jumper Selectable Illumination Status Red Green, or No Illumination






Specifications:

Type
Piezo
Sensor / Switch Type
Digital Toggle
Operating Voltage
12-24 VDC
Led Type
Square
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty
