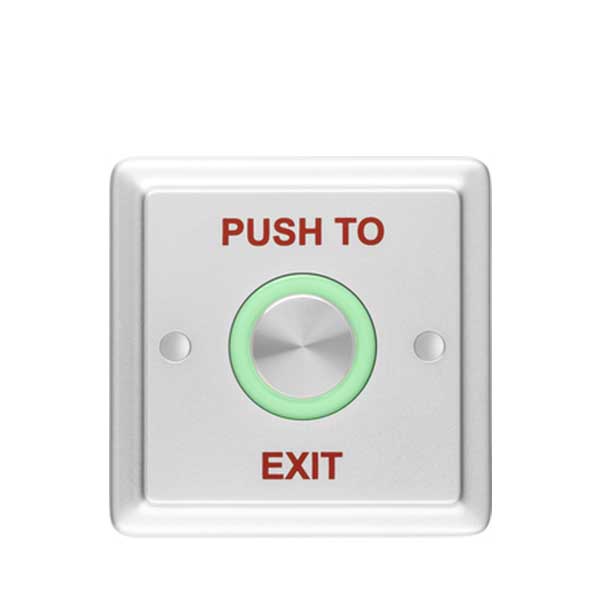

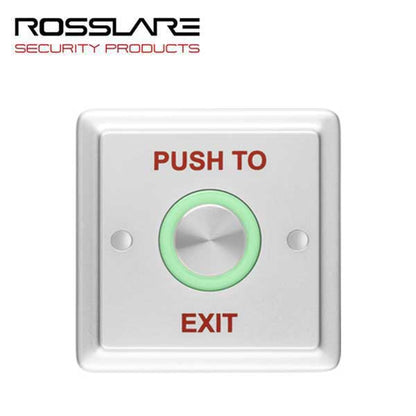

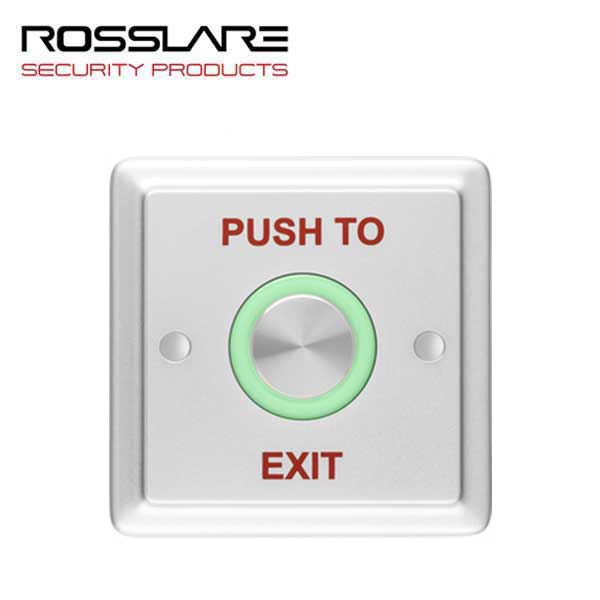

Rosslare - EXM04 - Sensitive Push To Exit Button - N.O. Piezo - 8-30 VDC
Rosslare - EXM04 - Sensitive Push To Exit Button - N.O. Piezo - 8-30 VDC
Rosslare - EXM04 - Sensitive Push To Exit Button - N.O. Piezo - 8-30 VDC
Rosslare - EXM04 - Sensitive Push To Exit Button - N.O. Piezo - 8-30 VDC
Rosslare - EXM04 - Sensitive Push To Exit Button - N.O. Piezo - 8-30 VDC

Rosslare - EXM04 - Sensitive Push To Exit Button - N.O. Piezo - 8-30 VDC

$27.46 $31.25
Availability: In Stock
Wishlist
  • Product SKU: ROS-EX-M04
  • NSID: 25354
  • ROS-EX-M04

    The EX-M04 is a sensitive piezoelectric button switch. The new access control switches are designed as flush mounting for US and UK electric boxes with piezoelectric technology. The switches have a red/green LED ring to display the switch status. The switches are designed as Request-to-Exit (REX) buttons for access control systems, direct activate electric strike, or magnet locks with up to 30 VDC and 1A.

    Features:

    • Solid state piezoelectric switch technology
    • N.O. and N.C. relay pulse simply by the touch of a finger
    • Output and Indication Toggle Option
    • Adjustable Output and LED Indication Time of 1 to 60 Seconds
    • Light Ring Status Indicator and Accidental Activation Hindrance
    • Jumper Selectable Illumination Status Red Green, or No Illumination


    $27.46
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Type
Piezo
Sensor / Switch Type
N.O.
Operating Voltage
8-30 VDC
Led Type
Ring
IP Rating IP65
Dimensions 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.)
Operating Temperature -10˚C to 50˚C (14˚F to 122˚F)
Storage Temperature -20˚C to 60˚C (-4˚F to 140˚F)
Manufacturer's Warranty: Limited Product Warranty



Downloads:

ROS-EX-M04

The EX-M04 is a sensitive piezoelectric button switch. The new access control switches are designed as flush mounting for US and UK electric boxes with piezoelectric technology. The switches have a red/green LED ring to display the switch status. The switches are designed as Request-to-Exit (REX) buttons for access control systems, direct activate electric strike, or magnet locks with up to 30 VDC and 1A.

Features:

  • Solid state piezoelectric switch technology
  • N.O. and N.C. relay pulse simply by the touch of a finger
  • Output and Indication Toggle Option
  • Adjustable Output and LED Indication Time of 1 to 60 Seconds
  • Light Ring Status Indicator and Accidental Activation Hindrance
  • Jumper Selectable Illumination Status Red Green, or No Illumination

Specifications:

Type
Piezo
Sensor / Switch Type
N.O.
Operating Voltage
8-30 VDC
Led Type
Ring
IP Rating IP65
Dimensions 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.)
Operating Temperature -10˚C to 50˚C (14˚F to 122˚F)
Storage Temperature -20˚C to 60˚C (-4˚F to 140˚F)
Manufacturer's Warranty: Limited Product Warranty



Downloads:
