*Discontinued* Rosslare - F44 - Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65
Out of Stock
SKU:
ROS-AC-F44
NSID:
25234
- $206.58
-
$247.90 - $206.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

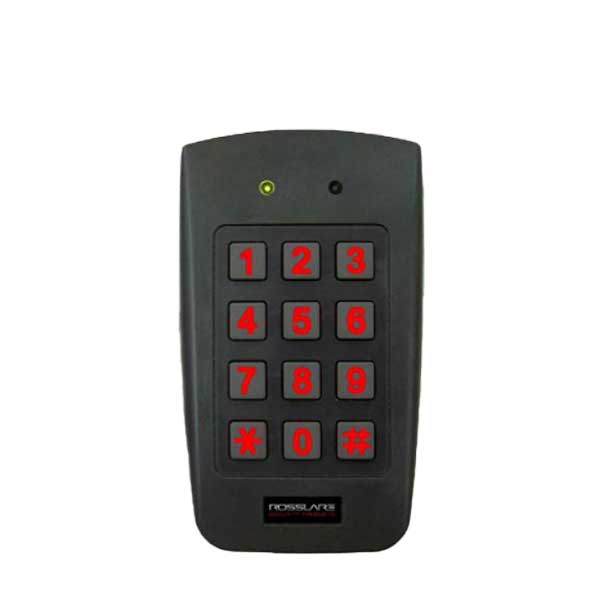

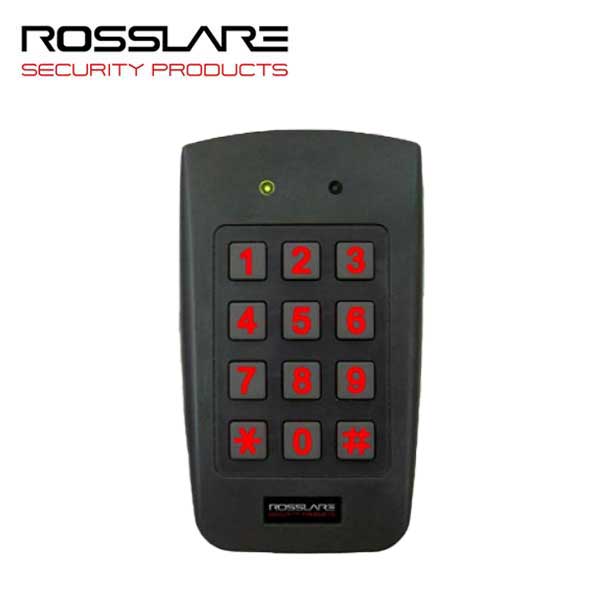

Rosslare’s newest standalone backlit PIN & PROXIMITY controller, the AC-F44, is a
cost effective solution for indoor and outdoor systems where pin and/or proximity
credentials are required. This durable model can be easily programmed with up to
500 users on a single door. The AC-F44 is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.
Features:
- Up to 500 users can be coded using Smart enroll and delete technology
- A mounting template and installation kit are provided
- Three user levels: Normal – Requires single PIN code or PROX
card. Secure – Requires both PIN and PROX card. Master User - Three access levels: Normal, Bypass, Secure
- Suitable for Gang Box installations
- Programmable PIN code length between 4 digits and 8 digits
- Powered either by transformer (AC) or regulated power supply (DC)
- $206.58
-
$247.90 - $206.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Operating Voltage Range: | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current: | Standby: 95 mA at 12 VDC Maximum: 160 mA at 12 VDC |
| Relay Outputs: | Lock Strike: 2 A Form C, N.O. and N.C. Auxiliary: 2 A Form C, N.O. and N.C. |
| Tamper: | Optical back tamper sensor |
| Inputs: | REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Capacity: | 500 users, dual code/card or code + card each |
| Keypad: | 3x4 keys for local programming and 4- to 8-digit PIN code entry |
| User levels: |
Normal, Secure, Master |
| Security Modes: | Normal, Bypass, Secure |
| Audio/Visual: | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design: | Epoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| RFI Protection: | > 10 V/m up to 1000 MHz |
| Dimensions: | 4.7 x 2.8 x 1.2 in. |
| Certifications: | IP65 Water Resistant |
| Manufacturer's Warranty: | 5-Year Limited Product Warranty |
