*Discontinued* Rosslare - GC50 - DigiTool Remote Communication Station - Serial Port & Modem

*Discontinued* Rosslare - GC50 - DigiTool Remote Communication Station - Serial Port & Modem

Discontinued
SKU ROS-GC-50
$6.25

ROS-GC-50

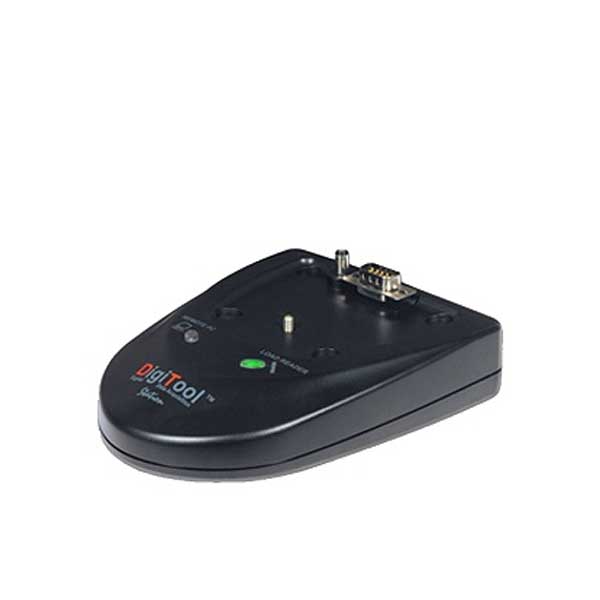

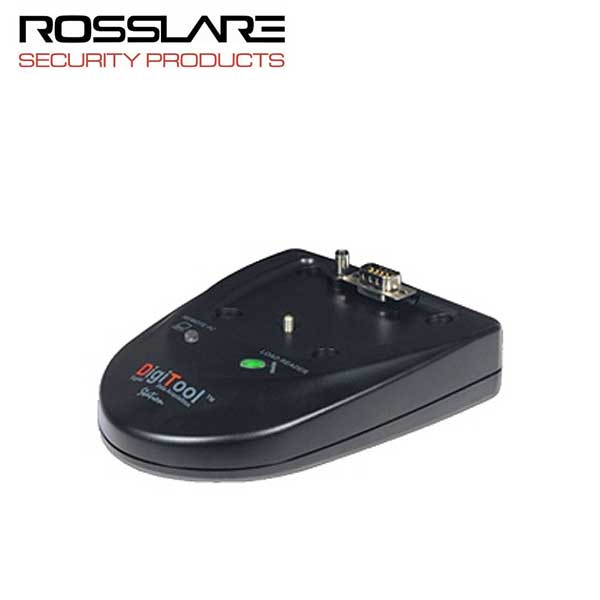

Rosslare’s DigiTool ® GC-50 remote station is designed with a focus on high quality and reliability as a top priority. A user-friendly hardware communication station that
allows you to upload, download, and transfer data that has been collected through the use of the GC02 Reader Base and the GC-01 Acquisition Reader. The GC-50 station can be installed remotely and allows you to transfer data to a local or remote PC via either the serial port or a built-in modem. PCbased DigiTool ® Call Center (DCC) Software (GS-02) then processes the data. This tool is simple to install and even simpler to use.
With just the touch of a button, you can easily manage your distributed DigiTool guard patrol monitoring system on a large geographic and data quantity scale.

Features:

  • Communications call-back feature (can be enabled or disabled)
  • Variety of call scheduling options
  • An internal buzzer for audio validation
  • RJ-11 phone in/out plugs
  • Internal real-time calendar/clock with battery backup that can maintain operation for 14 days if disconnected from the DC input
  • Two bi-colored LEDs for visual validation
  • User-friendly operation – as simple as pressing a button
  • Unique, compact design, allows for a minimum of cabling requirements, saving desk space


View full details

Details

Specifications:

Operating Voltage 9-12 VDC input, from an AC/DC transformer or a regulated DC power source
Input Current
 Standby: 30 mA
Max Input Current Maximum: 150 mA
Memory and clock backup battery
 3.6V DC rechargeable: NiMH button cell, 200 mAH
Memory Capacity 1 MB of internal memory; stores over 200,000 time-stamped
events
Physical Connections Telephone line Interface: RJ11 (telephone wall socket) to GC- 50 (LINE socket)
Telephone connection: DTMF telephone to GC-50 (PHONE socket) RS-232 Serial PC Connection: Male D-Type 9 pin (GC-50), FemalePC serial port
Data Transfer Rate 9600 Baud for all types of connection
Modes for Connection to Remote GC-50 Operator initiated dial-up, operator initiated call-back, scheduled automatic dial-up/upload
Operating Temperature
 -20°C to 60°C (-4°F to 140°F)
Operating Environment Indoor use
Construction Materials
 ABS plastic with nickel-plated contacts and water-resistant
grommets Water, dust, and dirt-resistant design
Dimensions 150 x 120 x 30 mm (5.90 x 4.72 x 1.18 in.)
Manufacture Warranty
 2-Year Limited Warranty


Downloads:
