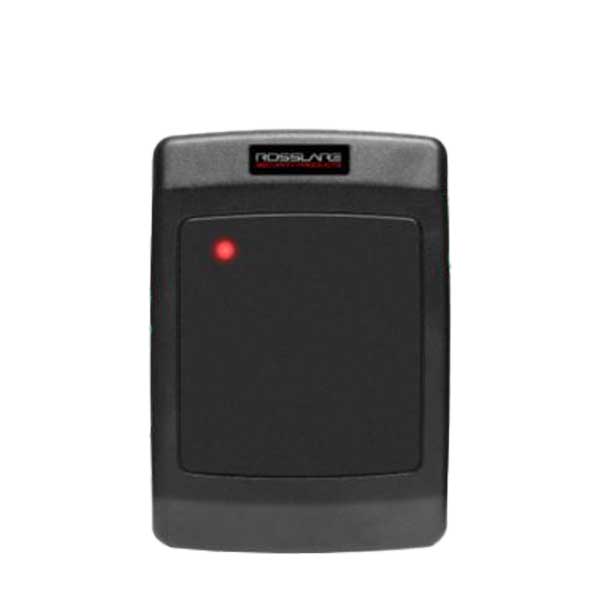

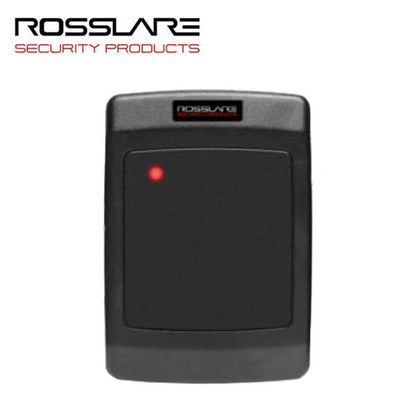

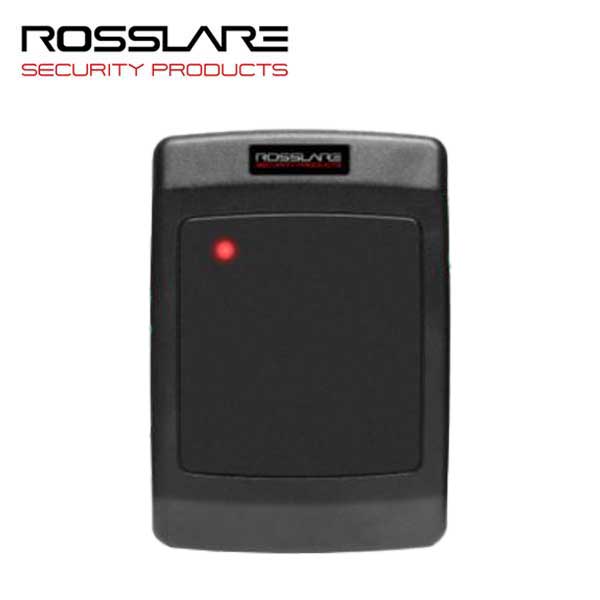

Rosslare - H12C - Outdoor Proximity Reader - 125 KHZ - RFID - 5–16 VDC - IP65

Rosslare's AY-H12C is a powerful RFID proximity card reader of EM 4102 125-kHz cards and tags. The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water resistant casing, the AY-H12C are equally suited for indoor and outdoor use. The AY-H12C series is compatible with a variety of Rosslare's controllers, as well as with many third-party access control systems.

Features

• Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
• Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
• Wide range operating voltage: 5 to 16 VDC
• 45 cm (18 in.) pigtail cable
• RF Modulation: ASK at 125 kHz
• Internal sounder with external control option
• Tri-color LED with external control inputs
• External reader hold control
• Optical wall tamper detection
• Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications
• Made of tough polycarbonate UV-resistant plastic
• Comes with mounting template for easier installation
