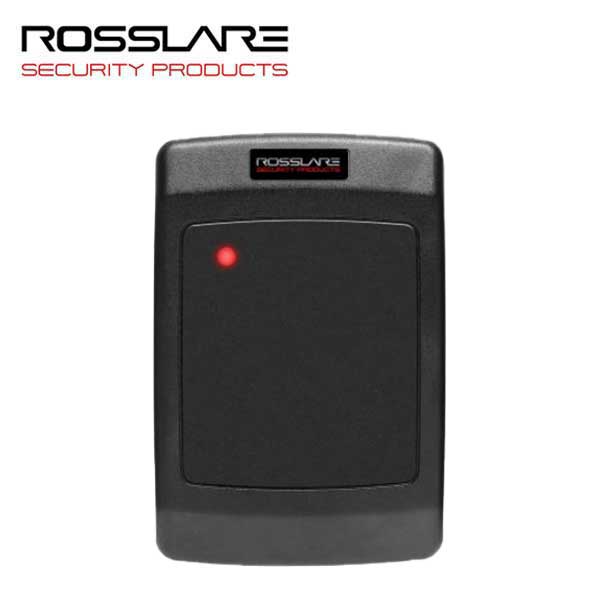

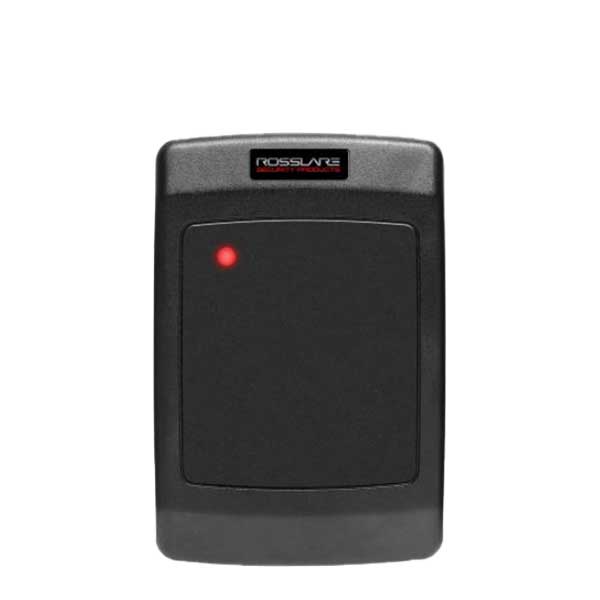

*Discontinued* Rosslare - H25B - Contactless Smart Card Reader - Outdoor - 13.56 MHz - MIFAIRE - 5-16 VDC - IP65

*Discontinued* Rosslare - H25B - Contactless Smart Card Reader - Outdoor - 13.56 MHz - MIFAIRE - 5-16 VDC - IP65

Discontinued
SKU ROS-AY-H25 NSID 25307
$92.02$110.42On Sale You save $18.40 (17%)

Rosslare's AY-H25B is a reliable reader capable of reading MIFARE Classic® EV1 smart card Contactless cards utilizing any standard access control system. With 7 selectable output formats, it is suited to most existing systems by reading only the required information from the card. The AY-H25B reader is fully potted, sealed, and made of rigid, UV resistant poly-carbonate housing, which make them highly suitable for outdoor use. This reader is a very simple, reliable, and cost-effective way to upgrade your system to the smart card standard. The AY-H25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems.

Features

  • Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol
  • Read range between of 6 to 7 cm (2.4 to 2.8 in.)
  • Programmable output formats including standard Wiegand 26-Bit
  • Selectable LED control and buzzer control functions
  • Made of tough Polycarbonate plastic for improved performance in all weather conditions
  • Optical back tamper detection
  • Internal buzzer
  • PC software and programming adapter (MD-08B) for easy configuration
  • Weather Resistant


View full details

Details

      Specifications:

      Operating Voltage Range: 5-16 VDC, from a regulated power supply
      Standby/Max Input Current: 35 mA / 55 mA
      Tamper Output: Open collector, active low, max. sink current 16 mA
      Inputs: Programmable LED and buzzer control inputs, N.O, Dry Contact
      Indicators: Tri-colored LED indicators
      Output Format: Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data
      Proximity Card Reader:

      MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal.
      Max. Read Range: 70 mm (2.8 in.)
      Design: Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments.
      Dimensions: 4.3 x 3.0 x 0.6 in.
      Product Warranty: 5-Year Limited Product Warranty
      Device Certifications: IP65
