Rosslare - H6255BT - CSN SMART - Smart Card Reader - Bluetooth - 13.56 MHz RFID - 8-16 VDC - IP65

Available to Order
NSID: 25309

Please Note: This product has a lead time

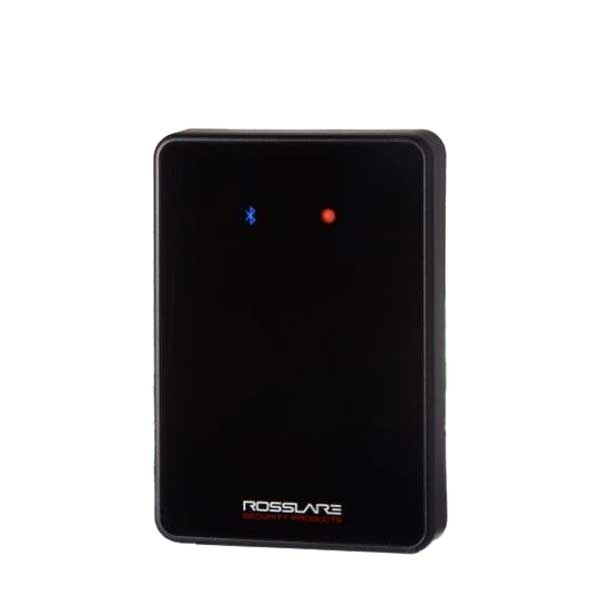

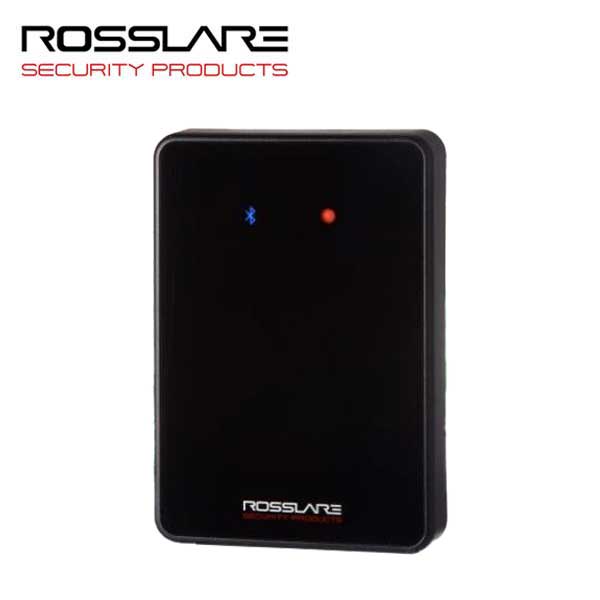

The innovative AY-H6255BT reader from Rosslare’s CSN SMART™ series features support for three types of credentials – Rosslare BLE-ID™, Rosslare NFC-ID™, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all-weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility. The AYC-H6255BT readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

This reader comes with Bluetooth credentials, which allows users ease of access wherever applied. Click these links to download the app on either IOS or Android.


  • NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation(HCE) mode
  • BLE-ID is supported with Rosslare BLE-ID credential apps for iOS and Android OS
  • Eight keypad transmission formats are available
  • Mounting options for US gang-box
  • Reads the CSN from multiple smart cards
  • Sleek and modern design, superior mechanics, 10-wire 5-m cable.
  • Addressable OSDP connectivity, up to 32 addresses using DIP switches
  • Compatible with CS-HCT Hardware Configuration Tool for Windows application
  • Two tri-colored LED indicators / 1 audible buzzer
  • Optical wall tamper detection
  • Blue backlit keypad with power saving options (On, Off, Dimming)
  • IP65 rated and made of tough polycarbonate UV-resistant plastic
  • Comes with mounting template and installation kit for easy installation

Call 1-800-878-6604 for Bulk / Dealer Pricing!


Operating Voltage Range: 8 to 16 VDC from a regulated power supply
Current at 12 VDC: Standby 110 mA, max: 185 mA
Read Range: Contactless 13.56 MHz and NFC – Up to 7 cm (2.75 in.)
Bluetooth BLE 4.1 Connection – Up to 12 m ( 39 ft) open air
Tamper Output: Open collector, active low, max. sink current 16 mA
Control Inputs: Dry Contact, N.O.
Reader Data Output Formats: CSN Wiegand 26-Bit and keypad with eight output formats and RS485 – OSDP
ISO14443A Smart Card:
- MIFARE® Ultralight® Nano / Ultralight EV1/ Ultralight C
- MIFARE Classic® / Classic EV1
- MIFARE Plus® S / SE / X / EV1
- NFC N–TAG / Card Emulation
ISO14443B Smart Card: China National ID
ISO15693 Smart Card: HID® iClass®, PicoPass™, iCode, LEGIC
ISO18092 Smart Card: SONY® FeliCa® (Hong Kong
Dimensions: 4.4 x 3.0 x 0.7 in.
Product Warranty: 5-Year Limited Product Warranty
Device Certifications: IP65
