*Discontinued* Rosslare - H6280B - Open to Secure Multi-Format Reader w/ Pigtail - MIFARE DESFire - 13.56 MHz RFID - 6-16 VDC - IP65

*Discontinued* Rosslare - H6280B - Open to Secure Multi-Format Reader w/ Pigtail - MIFARE DESFire - 13.56 MHz RFID - 6-16 VDC - IP65

Discontinued
SKU ROS-AY-H6280B-P00 NSID 25312
$201.88$242.26On Sale You save $40.38 (17%)

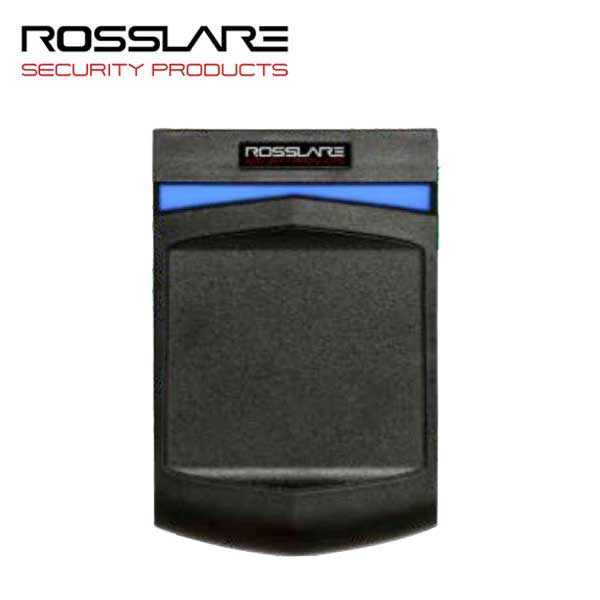

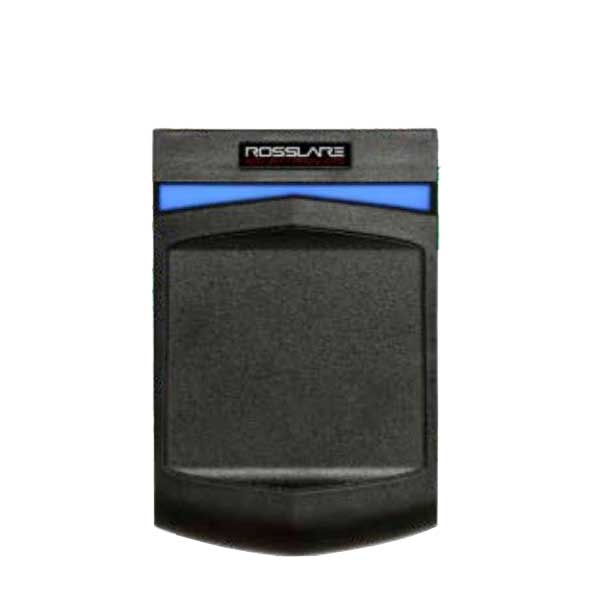

Rosslare’s Open to Secure™ (O2S®) reader is a highly flexible smart card reader that redefine ease of use and high security in the world of RFID access control solutions. The readers support reading from and writing to the secure memory of the world’s most accepted RFID technologies – MIFARE® DESFire® and MIFARE Classic® EV1. With MIFARE credentials, you have access to the highest levels of cryptographic security with support for 128-bit AES encrypted communications between reader and credential. With O2S preprogrammed readers and credentials, you can have the highest level of secure access control solutions right out of the box. The AY-H6280 readers are compatible with Rosslare's controllers and many other third-party Wiegand controllers. Included with 18" (46-cm) Pigtail.

Features

  • Contactless smart card reader (13.56 MHz)
  • Meets ISO14443 Type A Standard
  • AES 128-Bit encryption during transmission (MIFARE DESFire EV1)
  • Reads O2S ID data from O2S credentials
  • Reads CSN of non-O2S credentials
  • Output formats:
  • Wiegand (per format on O2S credential)
  • OSDP via RS-485 (selected models)
  • RGB multi-color light indicator
  • Blue backlit tact switch keypad
  • Fully-potted construction for indoor and outdoor use
  • Optical back tamper sensor
  • Two LED control inputs
  • Buzzer control input
  • Pigtail connectivity

View full details

Details

Specifications:

Operating Voltage Range: 6 to 16 VDC
Standby Input Current at 12V: 85 mA
Maximum Input Current at 12V: 110 mA

Read Range:

 MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.)
MIFARE DESFire EV1: 25 mm (1 in.)
LED Control: Two Inputs: Green LED CTL and RED LED CTL – TTL
Auxiliary Input: Buzzer CTL or Hold CTL – TTL
Auxiliary Output:
 Tamper Output (OC, active low, max. sink current 30 mA)
Supported Data Formats: Proximity: Wiegand (per format on O2S credential)
OSDP via RS458 (selected models)
Maximum Cable Distance to Controller: Wiegand: 150 m (500 ft) with 18-AWG cable
OSDP (RS-485): 1200 m (4,000 ft) with 2x2 18-AWG twisted shielded cable
Compatible Cards: MIFARE DESFire EV1 (2K, 4K, 8K) and MIFARE EV1 Classic (1K, 4K)
Dimensions of Pigtail: 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 0.9 in.)
Product Warranty: 5-Year Limited Product Warranty
Device Certifications: IP65
