Rosslare - H6355 - CSN SELECT - Convertible Smart Card Reader - 13.56 MHz RFID - 8-16 VDC - IP65
Rosslare - H6355 - CSN SELECT - Convertible Smart Card Reader - 13.56 MHz RFID - 8-16 VDC - IP65
Rosslare - H6355 - CSN SELECT - Convertible Smart Card Reader - 13.56 MHz RFID - 8-16 VDC - IP65
Rosslare - H6355 - CSN SELECT - Convertible Smart Card Reader - 13.56 MHz RFID - 8-16 VDC - IP65
Rosslare - H6355 - CSN SELECT - Convertible Smart Card Reader - 13.56 MHz RFID - 8-16 VDC - IP65

Rosslare - H6355 - CSN SELECT - Convertible Smart Card Reader - 13.56 MHz RFID - 8-16 VDC - IP65

$116.10 $125.52
Available: In Stock
Wishlist
  • Product SKU: ROS-AY-H6355
  • ROS-AY-H6355

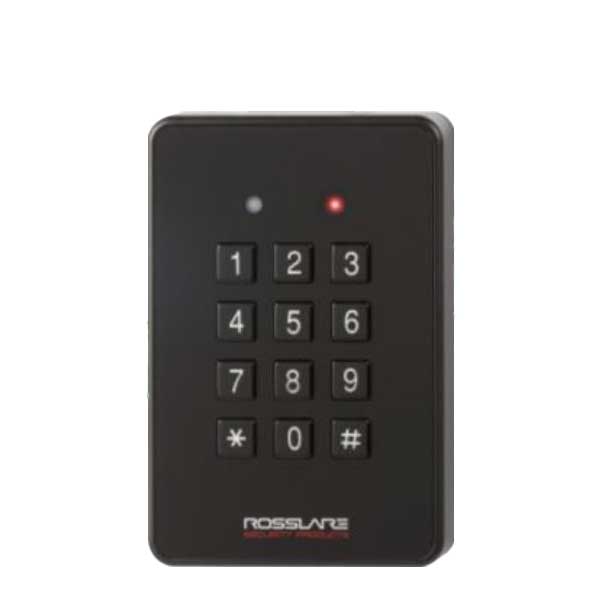

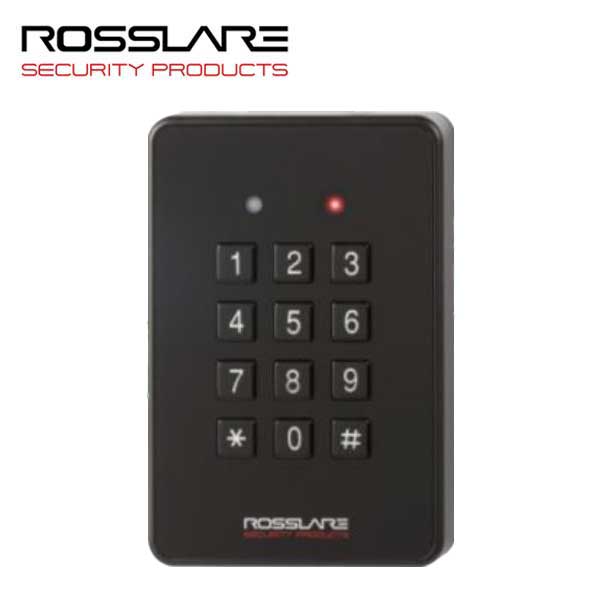

    The CSN SELECT™ AYC-H6355 is a multi-credential technology contactless smart card (13.56 MHz) reader with backlit keypad for use in access control system solutions and includes Rosslare’s convertible technology. They support access by an NFC compatible Android smartphone app*. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors. The AYC-H6355 readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

    *Click link to download the Android App for Host Card Emulation (HCE).

    Features

    • Selectable Wiegand output formats
    • Eight keypad transmission formats are available and can be locally selected via keypad programming
    • Mounting options include US gangbox
    • NFC Android Smartphone is supported with the Android App for Host Card Emulation (HCE)
    • Sleek and modern design
    • Addressable OSDP connectivity, up to 32 addresses using DIP switches
    • Two tri-colored LED operation
    • Optical wall tamper detection
    • Blue backlit keypad with power saving options (On, Off, Dimming)
    • IP65 rated and made of tough polycarbonate UV-resistant plastic
    • Comes with mounting template and installation kit for easy installation



    $116.10

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

    Specifications:

    Operating Voltage Range: 8 to 16 VDC from a regulated power supply
    Current at 12 VDC: Standby 120 mA, Maximum 160 mA
    Read Range:  9 cm (3.5 in.)

    Tamper Output:

    Open collector, active low, max. sink current 16 mA
    Control Inputs: Dry Contact, N.O.
    Keypad: 3x4 matrix backlit keypad (used also for local programming)
    Auxiliary Output:
    Tamper Output (OC, active low, max. sink current 30 mA)
    Reader Data Output Formats: CSN Wiegand 26-Bit and keypad with eight common output formats RS485 – OSDP
    Dimensions: 110.7 × 75 × 18.2 mm (4.4 x 3 x 0.7 in.)
    ISO14443A Smart Card: MIFARE® Ultralight® Nano/Ultralight EV1/ Ultralight C
    MIFARE Classic®/ Classic EV1
    MIFARE Plus® S / SE / X / EV1
    MIFARE DESFire® EV1 / EV2
    NFC N–TAG / Card Emulation
    ISO14443B Smart Card: China National ID
    ISO15693 Smart Card: HID® iClass®, PicoPass, iCode, LEGIC
    ISO18092 Smart Card: SONY® FeliCa® (Hong Kong Octopus)
    Product Warranty: 5-Year Limited Product Warranty
    Device Certifications: IP65



    Downloads:

      ROS-AY-H6355

      The CSN SELECT™ AYC-H6355 is a multi-credential technology contactless smart card (13.56 MHz) reader with backlit keypad for use in access control system solutions and includes Rosslare’s convertible technology. They support access by an NFC compatible Android smartphone app*. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors. The AYC-H6355 readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

      *Click link to download the Android App for Host Card Emulation (HCE).

      Features

      • Selectable Wiegand output formats
      • Eight keypad transmission formats are available and can be locally selected via keypad programming
      • Mounting options include US gangbox
      • NFC Android Smartphone is supported with the Android App for Host Card Emulation (HCE)
      • Sleek and modern design
      • Addressable OSDP connectivity, up to 32 addresses using DIP switches
      • Two tri-colored LED operation
      • Optical wall tamper detection
      • Blue backlit keypad with power saving options (On, Off, Dimming)
      • IP65 rated and made of tough polycarbonate UV-resistant plastic
      • Comes with mounting template and installation kit for easy installation


        Specifications:

        Operating Voltage Range: 8 to 16 VDC from a regulated power supply
        Current at 12 VDC: Standby 120 mA, Maximum 160 mA
        Read Range:  9 cm (3.5 in.)

        Tamper Output:

        Open collector, active low, max. sink current 16 mA
        Control Inputs: Dry Contact, N.O.
        Keypad: 3x4 matrix backlit keypad (used also for local programming)
        Auxiliary Output:
        Tamper Output (OC, active low, max. sink current 30 mA)
        Reader Data Output Formats: CSN Wiegand 26-Bit and keypad with eight common output formats RS485 – OSDP
        Dimensions: 110.7 × 75 × 18.2 mm (4.4 x 3 x 0.7 in.)
        ISO14443A Smart Card: MIFARE® Ultralight® Nano/Ultralight EV1/ Ultralight C
        MIFARE Classic®/ Classic EV1
        MIFARE Plus® S / SE / X / EV1
        MIFARE DESFire® EV1 / EV2
        NFC N–TAG / Card Emulation
        ISO14443B Smart Card: China National ID
        ISO15693 Smart Card: HID® iClass®, PicoPass, iCode, LEGIC
        ISO18092 Smart Card: SONY® FeliCa® (Hong Kong Octopus)
        Product Warranty: 5-Year Limited Product Warranty
        Device Certifications: IP65
