Rosslare - L6255 - CSN SELECT - Smart Card Reader - 13.56 MHz - Multi RFID Standards - 8-16 VDC - IP65
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $64.17
-
$64.54 - $64.17
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

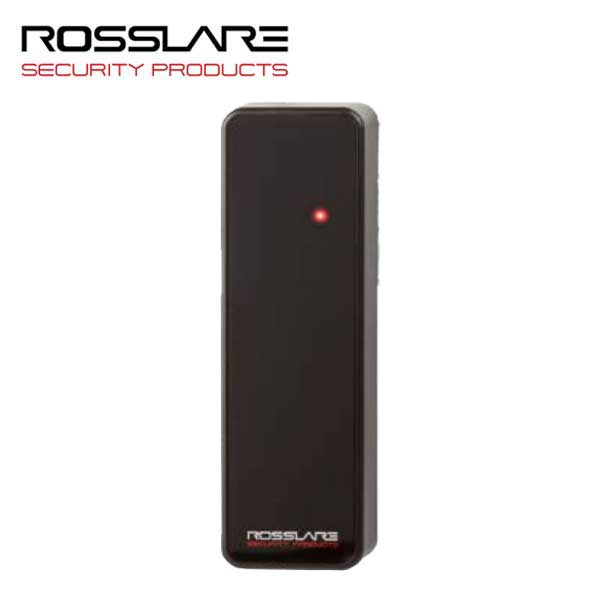

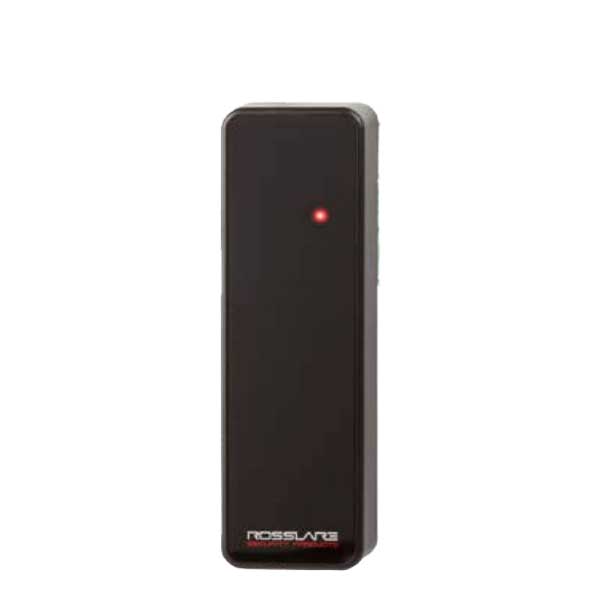

The CSN SELECT™ AY-L6255 is a multi-credential technology contactless smart card (13.56 MHz) reader that support access by an NFC compatible Android smartphone app for use in access control system solutions. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors. The AY-L6255 readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.
Features
- Sleek and modern design.
- Addressable OSDP connectivity up to 32 addresses
using DIP switches - Tri-colored LED operation
- Optical wall tamper detection
- IP65 rated and made of tough polycarbonate UV resistant plastic
- Comes with mounting template and installation kit for easy installation
- Selectable Wiegand output formats: CSN Wiegand 26-Bit/RS-485 – OSDP
Specifications:
| Operating Voltage Range: | 8 ~ 16 VDC, from a regulated power supply |
| Standby Current @12V: | 55 mA |
| Maximum Current @12V: | 80 mA |
| Read Range: | 2.9 in. |
| Tamper Output: | Open collector, active low, max. sink current 16 mA |
| Control Input: | Dry Contact, N.O |
| Reader Data Output Formats: | CSN Wiegand 26-Bit RS-485 – OSDP |
| ISO14443A Smart Card: |
- MIFARE® Ultralight® Nano / Ultralight EV1/ Ultralight C - MIFARE Classic® / Classic EV1 - MIFARE Plus® S / SE / X / EV1 - MIFARE DESFire® EV1 / EV2 - NFC N–TAG / Card Emulation |
| ISO14443B Smart Card: | China National ID |
| ISO15693 Smart Card: | HID® iClass®, PicoPass™, iCode, LEGIC |
| ISO18092 Smart Card: | SONY® FeliCa® (Hong Kong Octopus) |
| Dimensions: | 5.7 x 1.7 x 0.9 in. |
| Product Warranty: | 5-Year Limited Product Warranty |
| Device Certifications: | IP65 |
Downloads:
