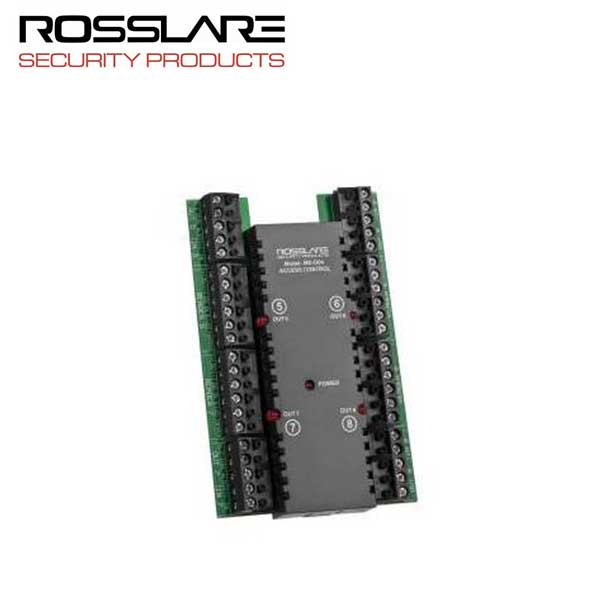

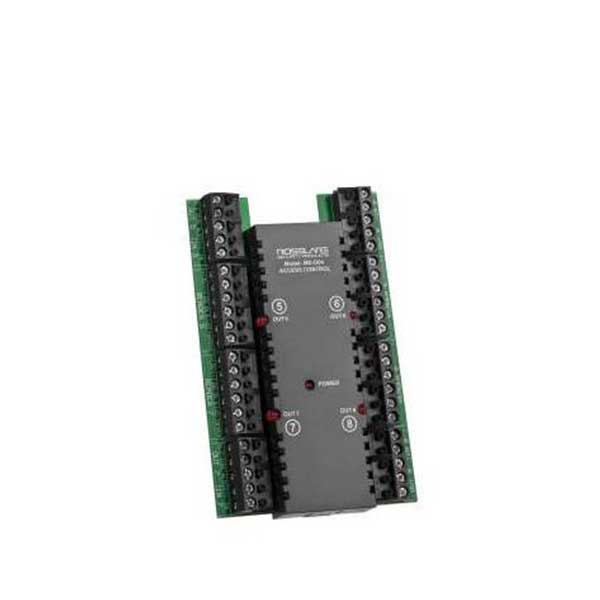

Rosslare - MDD04 - Four Reader Expansion Board - AC425
In Stock
SKU:
ROS-MD-D04
NSID:
25391
- $306.37
-
$367.64 - $306.37
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The ROS-MD-D04 is the third part of a highly advanced line of expansion modules. This unit works seamlessly with Rosslares state-of-the-art AC-425 networked access controller. Ideal for residential and commercial applications, the MD-D04 expansion board packs features such as advanced communication with the controller. The MD-D04 expansion increases flexibility to the access control system by adding four readers, four doors, four relay outputs and four supervised inputs to the controller.
Features:
- Additional four proximity readers or keypads
- Four relay outputs and four supervised inputs to the access control panel
- Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
- LED status feedback for 12V power and relay activation
- Cost effective and modular installation
- Compatible with Rosslare’s AC-425 networked controller
- Input and Output configurability using Rosslare’s AxTraxNG software
- Backed by Rosslare’s international guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations
| Input Voltage | 12 V DC from host controller |
| Input Current | Standby: 30mA Maximum: 135mA |
| Number of Reader Ports | 4 |
| Number of Inputs | 4 |
| Output Relays | 4 x 5A with N.O., N.C. and COM contacts Form-C Relays |
| Inputs Voltage | 5V DC maximum voltage |
| Reader Output Voltage | 12V DC |
| Max. Reader Current | 300 mA |
| LED Control Output | Open collector, active low |
| Tamper Output | 5V DC maximum voltage, optical anti-tamper sensor |
| Dimensions | 4.52 x 2.98 x 1.28 inch (115 x 75.9 x 32.5 mm) |
| Manufacture Warranty | 2-Year Limited Warranty |
