Rosslare

Rosslare - ME1515 - Enclosure For AC825IP Installation

Rosslare - ME1515 - Enclosure For AC825IP Installation

Available to order
SKU ROS-ME-1515 NSID 25397
$245.36$294.43On Sale You save $49.07 (17%)
Please Note: This product has a lead time

ROS-ME-1515

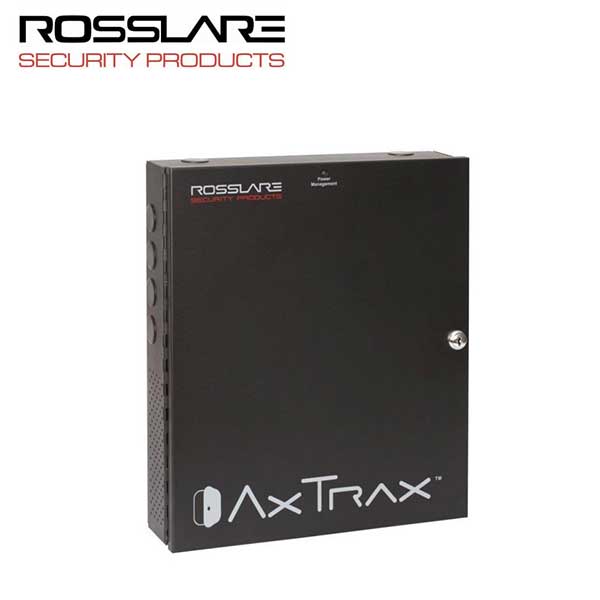

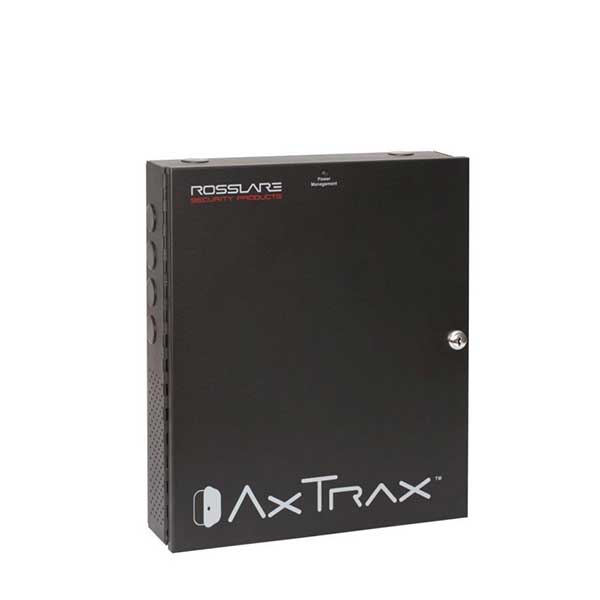

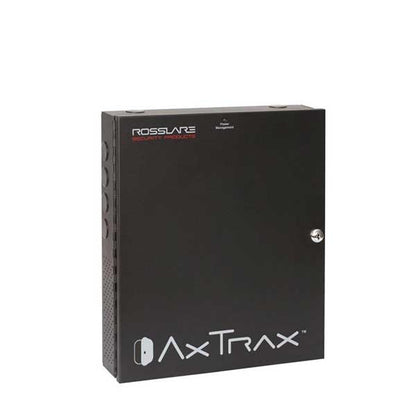

The is a power management enclosure in an innovative lockable metal cabinet designed for maximum ease of use, installation, and maintenance. The ME-1515 features a split managed power supply and UPS circuit that is designed to fit and power Rosslare's AC-8215IP series of access control panels.


  • Global input voltage – 100 to 240 VAC, 1.6 A, 50/60Hz auto select.
  • Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
  • Built-in power event generation to let the control panels receive power supply and UPS events.
  • Built-in Rosslare LightBar™ for lighting the way during maintenance and installation.
  • Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
  • Silk screen of all the connections on inside of door. Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
  • Supplied with removable terminal blocks and special key for ease of installation



Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Dimensions
 (H x W x D) 346 x 404 x 101 mm (13.6 x 15.9 x 4.0 in.)
Type Enclosure
Switch Mode PS Input Voltage 100 ~ 240 VAC, 50 ~ 60 Hz from main power
Maximum input current: 1.6 A
Switch Mode PS Output Voltage 15 VDC, 4 A (60 W) to the PM-10 power management board
Power Output from PM-10 Isolated PTC fused output, providing 13.8 VDC, 2 A
Battery Charger Output 13.8 VDC, 300 mA for 12 VDC, 7 Ah lead acid battery
Built-In Speaker (Audio Indication) 0.5 W, 8Ω
LED Indicators 2 LED for Power Outputs 1 and 2
Green LED shows power status visible when case is closed
Operating Temperature Range -5°C to 40°C (23°F to 104°F)
Lock Type Mini-cylinder lock with 2 keys
Application
 Secure Power Management Enclosure
Compatible AC-825IP board or two R/S/D/P-805 expansions
Dimensions 404 × 346 × 101 mm (15.9 x 13.6 x 4.0 in.)
