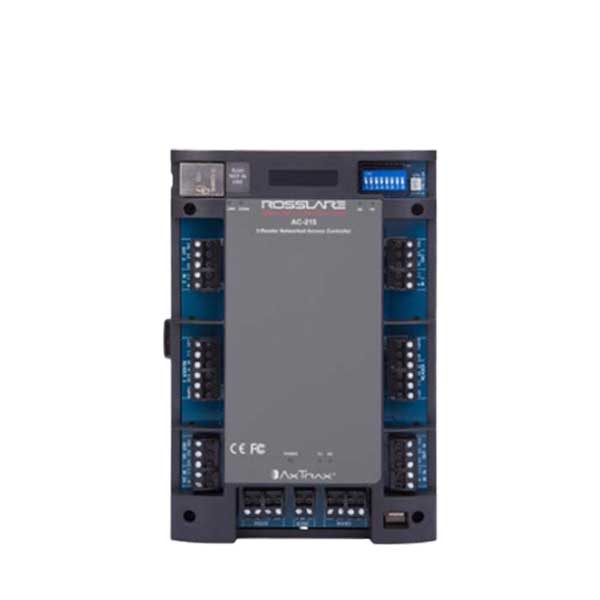

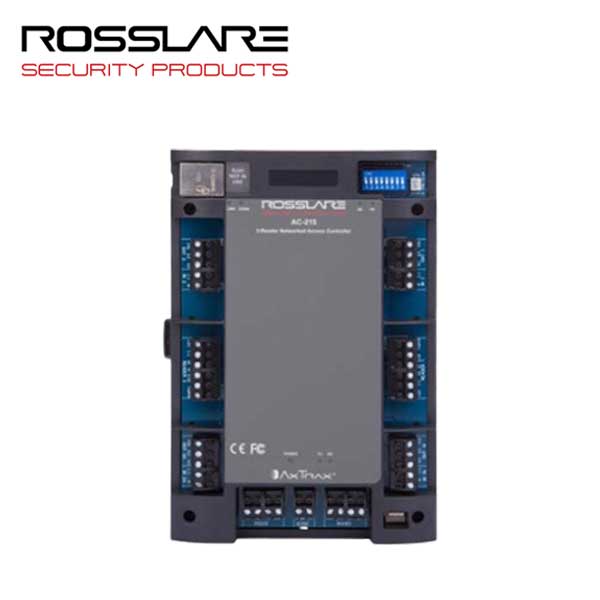

Rosslare - AC215IP - Scalable Networked Access Control Panel - DIN Housing - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC215IP - Scalable Networked Access Control Panel - DIN Housing - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC215IP - Scalable Networked Access Control Panel - DIN Housing - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC215IP - Scalable Networked Access Control Panel - DIN Housing - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC215IP - Scalable Networked Access Control Panel - DIN Housing - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Rosslare - AC215IP - Scalable Networked Access Control Panel - DIN Housing - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

$329.31 $374.00
Availability: Available
Wishlist
  • Product SKU: ROS-AC-215IP-DIN-PCBA
  • NSID: 25216
  • ROS-AC-215IP-DIN-PCBA

    Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

    Features:

    • DIN Housing for DIN Rail Mounting
    • Networked up to 1023 Panels
    • Networked up to 4092 Doors
    • Supports up to 30,000 users in off-line mode, unlimited server based capacity
    • 20,000 event history entries per computer
    • Multi-user authentication for high-level security
    • Supports a wide range of Wiegand and PIN formats



    $329.31
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Type: Network Control Panel / DIN Housing
Readers: 2 reader ports (6-wire)
Communication: Wiegand, or Clock & Data
Output voltage to reader: 12 VDC (battery only:
8.8-11.8 VDC)
Max. current to reader: 245 mA
LED control output and Tamper Input
Inputs: 4 supervised, hi-impedance, inputs
Max. voltage: 5 VDC
Outputs: 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC
Interface: TCP / IP
TCP / IP: On-board RJ-45 connector
Selectable Communication Speed: 9600, 19200, 57600, 115200 bps
Serial Ports: 10/100 Ethernet Port
Max Readers:  2
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Unauthorized & Access Groups: 30,000 Unauthorized Users
Event Log: 20,000 Events
Operating Voltage:  12 VDC, 1.5 A from a regulated power supply
Max input Current:  Standby: 120 mA. Maximum: 370 mA
Housing: Protective Cover & DIN Rail / Wall Mount
Dimensions:
7.6 x 5.4 x 1.5 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited



Downloads:

ROS-AC-215IP-DIN-PCBA

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

Features:

  • DIN Housing for DIN Rail Mounting
  • Networked up to 1023 Panels
  • Networked up to 4092 Doors
  • Supports up to 30,000 users in off-line mode, unlimited server based capacity
  • 20,000 event history entries per computer
  • Multi-user authentication for high-level security
  • Supports a wide range of Wiegand and PIN formats


Specifications:

Type: Network Control Panel / DIN Housing
Readers: 2 reader ports (6-wire)
Communication: Wiegand, or Clock & Data
Output voltage to reader: 12 VDC (battery only:
8.8-11.8 VDC)
Max. current to reader: 245 mA
LED control output and Tamper Input
Inputs: 4 supervised, hi-impedance, inputs
Max. voltage: 5 VDC
Outputs: 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC
Interface: TCP / IP
TCP / IP: On-board RJ-45 connector
Selectable Communication Speed: 9600, 19200, 57600, 115200 bps
Serial Ports: 10/100 Ethernet Port
Max Readers:  2
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Unauthorized & Access Groups: 30,000 Unauthorized Users
Event Log: 20,000 Events
Operating Voltage:  12 VDC, 1.5 A from a regulated power supply
Max input Current:  Standby: 120 mA. Maximum: 370 mA
Housing: Protective Cover & DIN Rail / Wall Mount
Dimensions:
7.6 x 5.4 x 1.5 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited
