*Discontinued* Rosslare - PC-14 - Modular board for AC215 - 12 VDC

*Discontinued* Rosslare - PC-14 - Modular board for AC215 - 12 VDC

Discontinued
SKU ROS-PC-14
$25.20

ROS-PC-14

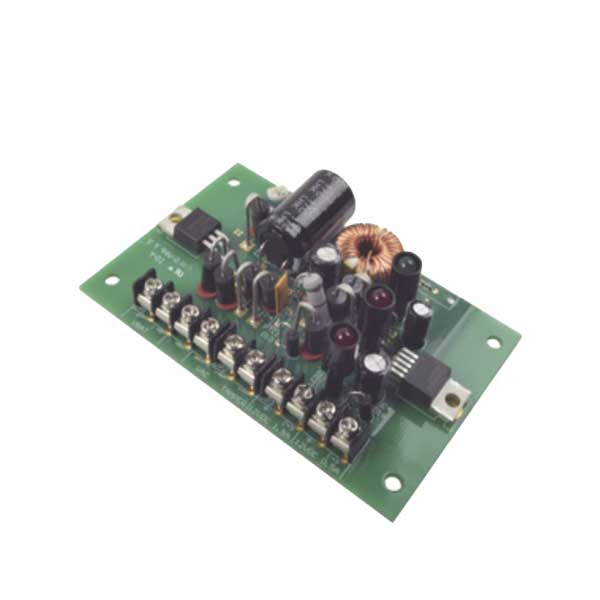

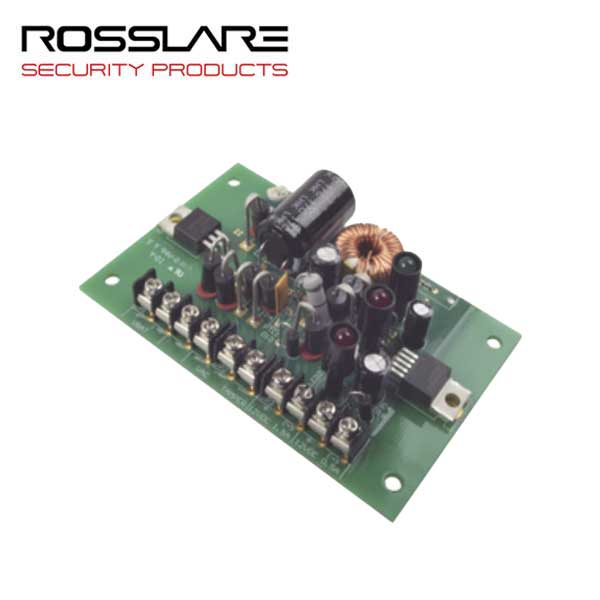

PCB power supply module for AC215. This acts as a back up battery in case main power supply fails.  A 12 V, 7 AH battery provides 3 hours of backup operation.

More Information Below


View full details

Details

    Specifications:

    Input Voltage: 16 VAC, 2.42 A

    Backup Battery
    Charger Output:

    		 12 VDC lead acid battery up to 7 Ah
    To Relay Outputs – Output
    Voltage 1:    		 12 VDC,0.5 A
    To Access Control Panel – Output
    Voltage 2:    		 12 VDC, 1.5 A
    Tamper Output: Indicates faulty power
    Power In (AC) – Green LED1: Main power
    Power Out (DC) – Red LED2: Low voltage
    Low Battery – Red LED3:

    Backup battery low voltage
