*Discontinued* Rosslare - Q41HB - Backlit PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP54
Out of Stock
SKU:
ROS-AC-Q41HB
NSID:
25238
- $221.79
-
- $221.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

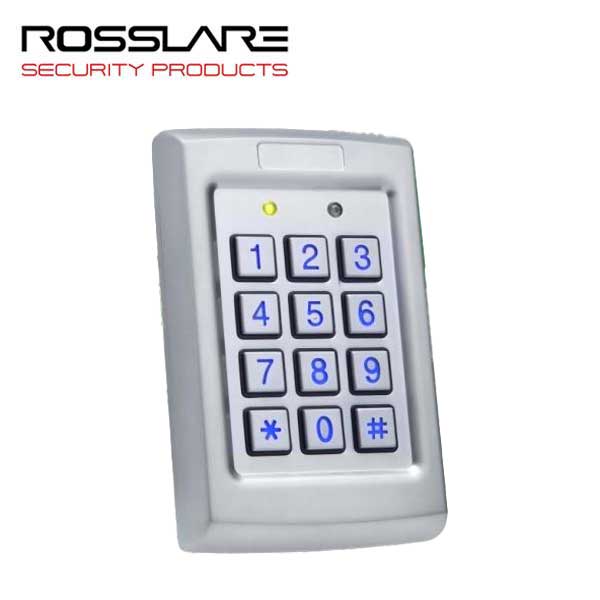

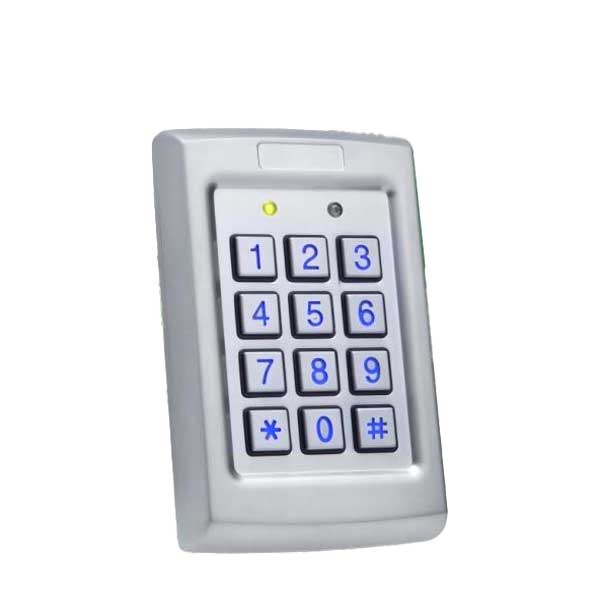

This advanced anti-vandal 500-user standalone controller features shiny blue
illuminated metal keys for PIN code user credentials. AC-Q41HB has a rugged
metal body ideal for installation in high traffic environments. This model
comes with removable terminal blocks, allowing quick installation, and utilizes
advanced programming options. The AC-Q41HB is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX06/16/07/17 Push to Exit buttons.
Features
- 500 PIN users
- Smooth attractive design, with anti-vandal body
- Highly-visible blue backlit keypad
- 3 operational security levels can be selected with special PIN codes
- Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
- 2 tri-colored LEDs and integral sounder for programming and operational indications
- Removable terminal blocks for unit wiring
- $221.79
-
- $221.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Operating Voltage Range: | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current: | (Heater Off) Standby: 70 mA, Maximum: 130 mA, at 12 VDC (Heater On) Standby: 550 mA, Maximum: 610 mA, at 12 VDC |
| Relay Outputs: | Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C |
| Tamper: | Optical back tamper sensor, O.C. active low 32 mA max sink current |
| Inputs: | REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Capacity: | 500 users, single / dual code each |
| Keypad: | 3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry |
| User levels: |
Normal, Secure, Master |
| Security Modes: | Normal, Bypass, Secure |
| Audio/Visual: | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design: | Rugged metal enclosure, highly strong construction, metallic keys. Suitable for extremely harsh environments |
| RFI Protection: | > 10 V/m up to 1000 MHz |
| Dimensions: | 4.72 x 3 x 1.06 in. |
| Certifications: | IP54 Water Resistant |
| Manufacturer's Warranty: | 2-Year Limited Product Warranty |
Downloads:
Spec Sheet
Installation Guide
