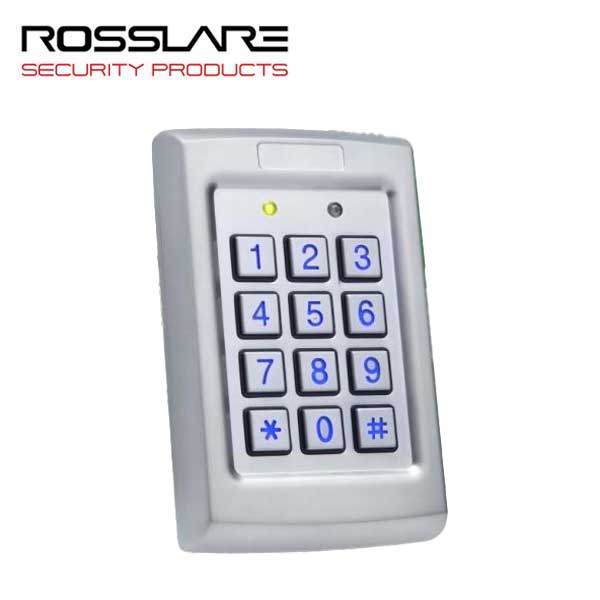

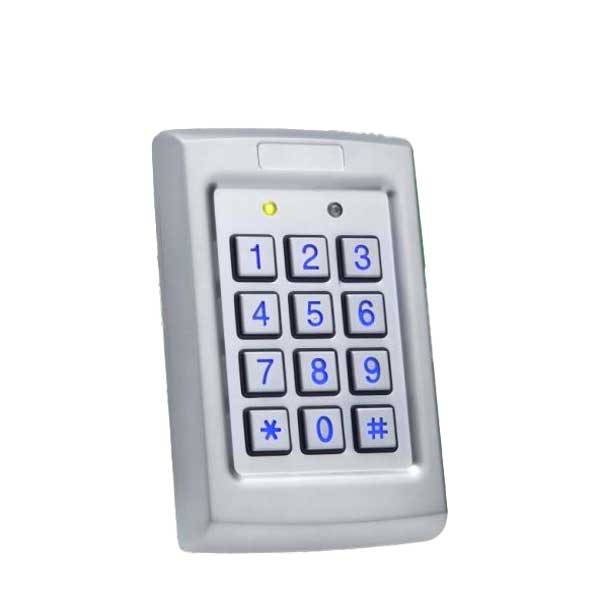

*Discontinued* Rosslare - Q41SB - Slim Backlit PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP65
Out of Stock
SKU:
ROS-AC-Q41SB
NSID:
25239
- $221.79
-
$266.15 - $221.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This advanced 500 user anti-vandal standalone controller features shiny blue
illuminated metal keys for pin code user credentials. AC-Q41SB has a slim metal
construction. This model is epoxy filled, designed to withstand the rigors of the
outdoor environment, and has advanced programming options. The AC-Q41SB is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX06/16/07/17 Push to Exit buttons.
Features
- 500 users can have PIN user credentials for granting access
- Smooth attractive design, with anti-vandal construction
- Highly-visible blue backlit keypad
- 3 operational Security Levels can be selected with special PIN codes
- Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts
- 2 tri-colored LEDs and integral sounder for programming and operation
- Wide range of low voltage AC/DC power input
- $221.79
-
$266.15 - $221.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Operating Voltage Range: | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current: | (Heater Off) Standby: 70 mA, Maximum: 130 mA, at 12 VDC (Heater On) Standby: 550 mA, Maximum: 610 mA, at 12 VDC |
| Relay Outputs: | Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C |
| Tamper: | Optical back tamper sensor, O.C. active low 32 mA max sink current |
| Inputs: | REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Capacity: | 500 users, single / dual code each |
| Keypad: | 3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry |
| User levels: |
Normal, Secure, Master |
| Security Modes: | Normal, Bypass, Secure |
| Audio/Visual: | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design: | Epoxy potted, fully sealed in a rugged metal enclosure, highly strong construction, blue backlit metallic keys. Suitable for extremely harsh environments |
| Dimensions: | 4.72 x 3 x 0.85 in |
| Certifications: | IP65 Water Resistant |
| Manufacturer's Warranty: | 5-Year Limited Product Warranty |
