Rosslare

Rosslare - Q42HB - Backlit PIN & PROX Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP54

Rosslare - Q42HB - Backlit PIN & PROX Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP54

Available to order
SKU ROS-AC-Q42HB NSID 25240
$306.81$368.17On Sale You save $61.36 (17%)
Please Note: This product has a lead time

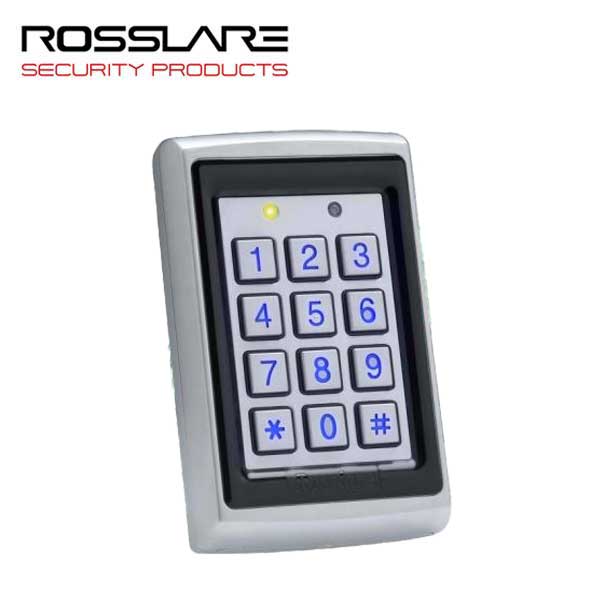

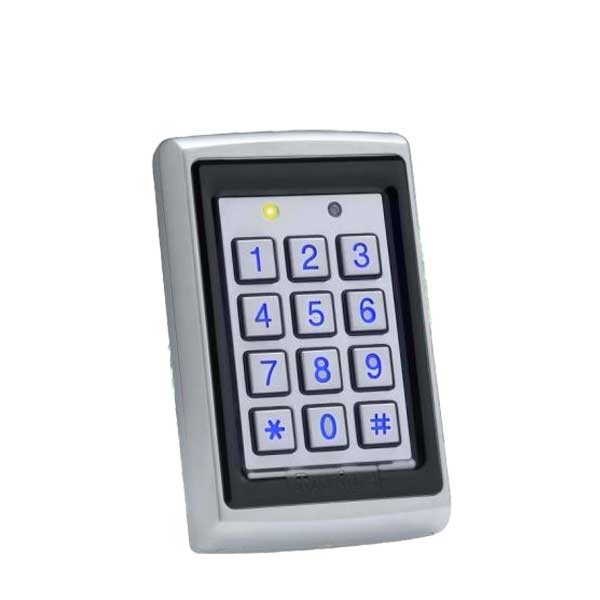

This advanced anti-vandal, 500-user standalone controller features shiny blue illuminated metal keys for PIN code and a built-in proximity reader for RFID user credentials. AC-Q42HB has a rugged metal construction ideal for high traffic environments. This model comes with removable terminal blocks, for quick installation, and has advanced programming options. The AC-Q42HB is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.

Features

  • Built-in 125 kHz RFID card reader
  • 500 users can have PIN and / or RFID user credentials for granting access
  • Highly-visible blue backlit keypad
  • Smooth attractive design, with anti-vandal construction
  • 3 operational Security Levels can be selected with special PIN codes
  • Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong
  • attempts
  • 2 tri-colored LEDs and integral sounder for programming and operation
  • Removable terminal blocks are used for connecting the wires to the unit

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

      Specifications:

      Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
      16 to 24 VAC, from a transformer
      Input Current: (Heater Off) Standby: 85 mA, Maximum: 145 mA, at 12 VDC
      (Heater On) Standby: 565 mA, Maximum: 625 mA, at 12 VDC
      Relay Outputs: Lock Strike: 2A, N.O. and N.C.
      Auxiliary: 2A, N.O. and N.C
      Tamper: Optical back tamper sensor, O.C. active low 32 mA max sink
      current
      Inputs: REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
      Proximity Card Reader Maximum read range: 65 mm (2.5 in.)
      Modulation: ASK at 125 kHz
      Compatible cards: All 26-Bit EM Cards
      Capacity: 500 users, single / dual code each
      Keypad:

      3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry
      User levels:
      		 Normal, Secure, Master
      Security Modes: Normal, Bypass, Secure
      Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
      Two tri-color LED indicators, built-in sounder
      Design: Rugged metal enclosure, highly strong construction, blue backlit metallic keys. Suitable for extremely harsh environments.
      RFI Protection > 10 V/m up to 1000 MHz
      Dimensions: 4.72 x 3 x 1.06 in.
      Certifications: IP54 Water Resistant
      Manufacturer's Warranty: 2-Year Limited Product Warranty

      Downloads:


      Spec Sheet
      Installation Guide
