Rosslare - Q44 - Piezo PIN & Prox Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP65
Rosslare - Q44 - Piezo PIN & Prox Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65
Rosslare - Q44 - Piezo PIN & Prox Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65
Rosslare - Q44 - Piezo PIN & Prox Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65
Rosslare - Q44 - Piezo PIN & Prox Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65

Rosslare - Q44 - Piezo PIN & Prox Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP65

$202.49 $203.64
Availability: Available
Wishlist
  • Product SKU: ROS-AC-Q44
  • NSID: 25242
  • ROS-AC-Q44

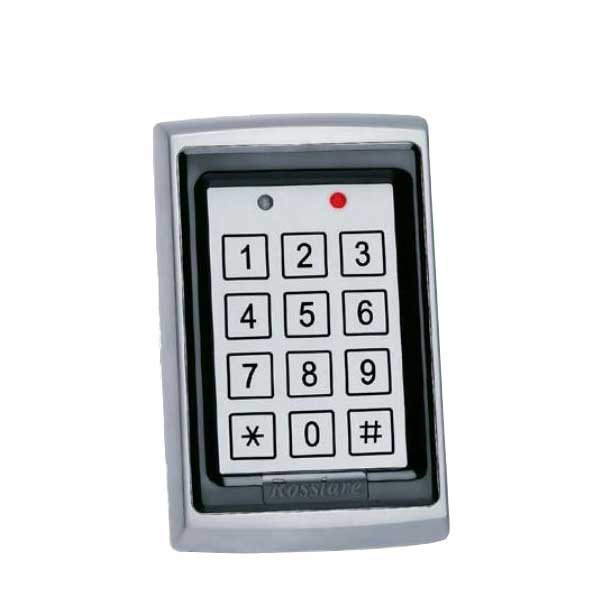

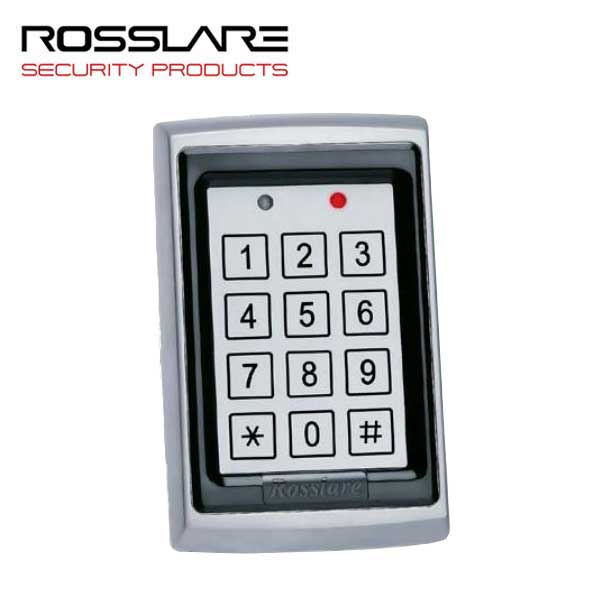

    This advanced anti-vandal, 500 user standalone controller features a unique combination of a highly robust metallic unit with a built-in proximity reader for PIN and RFID user credentials. AC-Q44 has a slim and rugged metal construction with no moving parts, ideal for high traffic and extremely harsh environments. This fully sealed model is epoxy filled, has advanced programming options and flexible operation modes. A variety of Rosslare's proximity cards and tags is available for use with this unit. The AC-Q44 compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.

    Features

    • Built-in 125 kHz RFID card reader
    • 500 users can have PIN and / or RFID user credentials for granting access
    • Highly-sensitive Piezo metal keys
    • Smooth attractive design, with anti-vandal construction
    • 3 operational Security Levels can be selected with special PIN codes
    • Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
    • 2 tri-colored LEDs and integral sounder for programming and operation
    • Wide range of low voltage AC/DC power input


    $202.49
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

          Specifications:

          Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
          16 to 24 VAC, from a transformer
          Input Current: Standby: 65 mA, at 12 VDC
          Maximum: 125 mA, at 12 VDC
          Relay Outputs: Lock Strike: 2A, N.O. and N.C.
          Auxiliary: 2A, N.O. and N.C
          Tamper: Optical back tamper sensor, O.C. active low 32mA max sink
          current
          Inputs: REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
          Proximity Card Reader Maximum read range: 65 mm (2.5 in.)
          Modulation: ASK at 125 kHz
          Compatible cards: All 26-Bit EM Cards
          Capacity: 500 users, single / dual code each
          Keypad:

          3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry

          User levels:
          Normal, Secure, Master
          Security Modes: Normal, Bypass, Secure
          Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
          Two tri-color LED indicators, built-in sounder
          Design: Epoxy potted, fully sealed in a rugged metal slim enclosure, super strong construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments
          RFI Protection > 10 V/m up to 1000 MHz
          Dimensions: 4.72 x 3 x 0.85 in.
          Certifications: IP65 Water Resistant
          Manufacturer's Warranty: 5-Year Limited Product Warranty

          Downloads:


          ROS-AC-Q44

          This advanced anti-vandal, 500 user standalone controller features a unique combination of a highly robust metallic unit with a built-in proximity reader for PIN and RFID user credentials. AC-Q44 has a slim and rugged metal construction with no moving parts, ideal for high traffic and extremely harsh environments. This fully sealed model is epoxy filled, has advanced programming options and flexible operation modes. A variety of Rosslare's proximity cards and tags is available for use with this unit. The AC-Q44 compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.

          Features

          • Built-in 125 kHz RFID card reader
          • 500 users can have PIN and / or RFID user credentials for granting access
          • Highly-sensitive Piezo metal keys
          • Smooth attractive design, with anti-vandal construction
          • 3 operational Security Levels can be selected with special PIN codes
          • Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
          • 2 tri-colored LEDs and integral sounder for programming and operation
          • Wide range of low voltage AC/DC power input

                  Specifications:

                  Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
                  16 to 24 VAC, from a transformer
                  Input Current: Standby: 65 mA, at 12 VDC
                  Maximum: 125 mA, at 12 VDC
                  Relay Outputs: Lock Strike: 2A, N.O. and N.C.
                  Auxiliary: 2A, N.O. and N.C
                  Tamper: Optical back tamper sensor, O.C. active low 32mA max sink
                  current
                  Inputs: REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
                  Proximity Card Reader Maximum read range: 65 mm (2.5 in.)
                  Modulation: ASK at 125 kHz
                  Compatible cards: All 26-Bit EM Cards
                  Capacity: 500 users, single / dual code each
                  Keypad:

                  3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry

                  User levels:
                  Normal, Secure, Master
                  Security Modes: Normal, Bypass, Secure
                  Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
                  Two tri-color LED indicators, built-in sounder
                  Design: Epoxy potted, fully sealed in a rugged metal slim enclosure, super strong construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments
                  RFI Protection > 10 V/m up to 1000 MHz
                  Dimensions: 4.72 x 3 x 0.85 in.
                  Certifications: IP65 Water Resistant
                  Manufacturer's Warranty: 5-Year Limited Product Warranty

                  Downloads:
