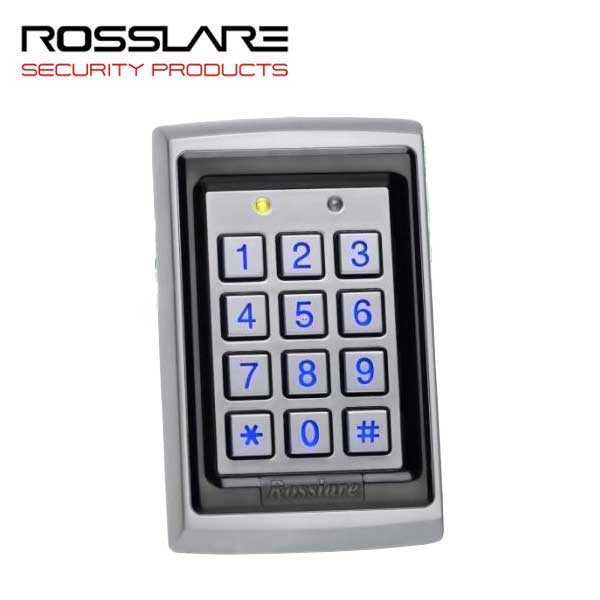

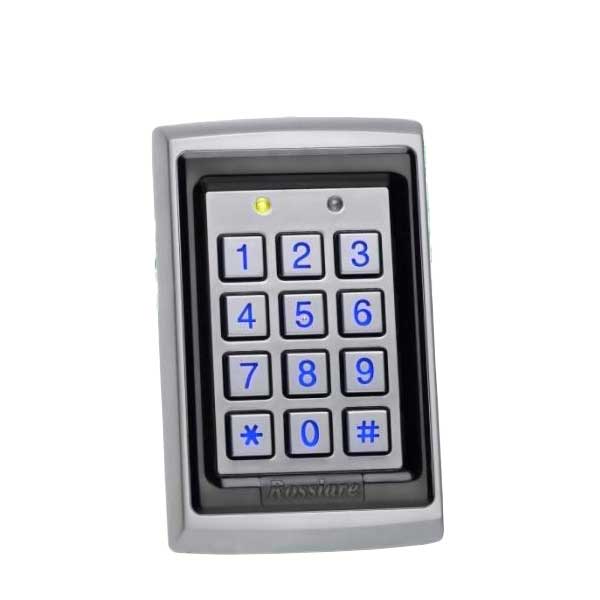

*Discontinued* Rosslare - Q6350 - Anti-Vandal Sector Reader - MIFAIRE Classic® EV1 - 13.56 MHz - 5-16 VDC - IP65
- $174.96
-
$209.95 - $174.96
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ROS-AY-Q6350
The Sector Reader is a fully-featured smartcard contactless reader, ideal for highly secured facilities as well as other locations that wish to utilize smartcard based applications such as electronic wallets combined with access control or intrusion, Time & Attendance applications, and more. The AY-Q6350 introduce a patented, industry first – 13.56 MHz technology encased in a metal body, thus combining smartcard technology with an anti-vandal metal shield, suitable for outdoor use in all weather conditions. The Read-Sector Readers are compatible with Rosslare’s CP-R25 USB Desktop card programmer and its associated AS-B01 Card Programming Software. The readers are compatible with a variety of Rosslare's controllers as well as with many third party systems.
Features
- Advanced, secure, multi-application functionality for intelligent installations
- Configurable multi-output format, supports Wiegand 26-Bit format and many others
- Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
- Multiple keypad transmission formats
- Compatible with CP-R25 USB Desktop Card Programmer
- PC software for Master and User Card configuration (AS-B01)
- High strength design, epoxy potted, fully sealed within an all-metallic housing
- Reads MIFARE Classic EV1 ISO14443 Type A, Standard cards
- Dedicated LED and buzzer control inputs
- Optical tamper sensor for case and wall tamper detection
- Fully compatible with MIFARE Classic® EV1 1K and 4K
- Reads card’s serial number with MIFARE Classic EV1 Ultralight and MIFARE® DESFire®
- Suitable for outdoor use and weather-resistant
- $174.96
-
$209.95 - $174.96
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Operating Voltage Range: | 5–16 VDC |
| Standby Input Current: | 160 mA |
| Maximum Input Current : | 240 mA |
| Tamper Output: | Open collector, active low, max. sink current 30 mA |
| Inputs: | Programmable LED control / buzzer control Input, N.O, Dry Contact |
| Indicators: | Tri-Colored LED indicator |
| Output Formats: |
Wiegand 26-Bit, Clock & Data, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit |
| Built-In Proximity Reader: |
Operating Frequency: 13.56 MHz MIFARE Classic EV1 Compatible ISO-14443A-3 |
| Max. Proximity Read Range: | 1.8 in. |
| Dimensions: | 4.9 x 3.3 x 1.2 in. |
| Product Warranty: | 2-Year Limited Product Warranty |
| Device Certifications: | IP65 |
