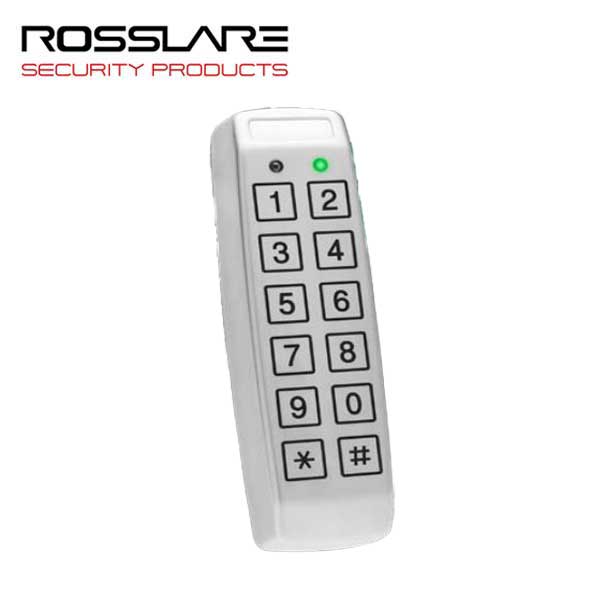

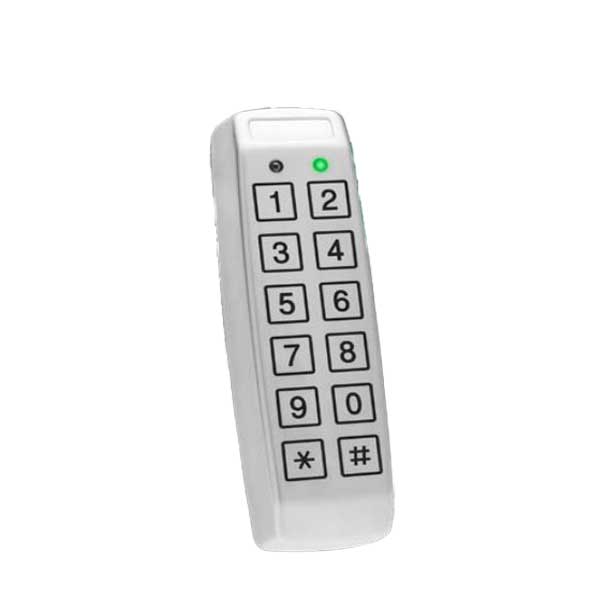

Rosslare - S43 - Mullion Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP65
Rosslare - S43 - Mullion Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65
Rosslare - S43 - Mullion Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65
Rosslare - S43 - Mullion Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65
Rosslare - S43 - Mullion Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC -  IP65

Rosslare - S43 - Mullion Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP65

$162.98 $163.91
Availability: Available
Wishlist
  • Product SKU: ROS-AC-S43
  • NSID: 25243
  • ROS-AC-S43

    This advanced anti-vandal, 500-user standalone controller is an exceptionally robust metallic unit with a highly sensitive piezoelectric keypad, suitable for PIN codes access requirements. This mullion model, with its rugged metal body and no moving parts, is ideal for high traffic and extremely harsh environments. The model is fully-sealed, epoxy-filled, and has advanced programming options, as well as flexible operation modes. The BL-D40 alarm, chime and doorbell enunciator/strobe unit as well as the Push-to-Exit buttons can be interfaced with the unit.

    Features

    • 500 PIN users
    • Smooth attractive design, with anti-vandal casing
    • Highly-sensitive piezoelectric metal keys
    • 3 operational security levels can be selected with special PIN codes
    • Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts
    • 2 tri-colored LEDs and integral sounder for programming and operation
    • Wide range of low voltage AC/DC power input


    $162.98
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

            Specifications:

            Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
            16 to 24 VAC, from a transformer
            Input Current: Standby: 35 mA, at 12 VDC
            Maximum: 90 mA, at 12 VDC
            Relay Outputs: Lock Strike: 3 A, N.O. and N.C.
            Auxiliary: 3 A, N.O. and N.C.
            Tamper: Optical back tamper sensor
            Inputs: REX: N.O. Dry Contact
            Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes
            Capacity: 500 users, single / dual code each
            Keypad:

            2x6 keys for local programming and 4- to 8-digit PIN codes entry

            User levels:
            Normal, Secure, Master
            Security Modes: Normal, Bypass, Secure
            Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
            Two tri-color LED indicators, built-in sounder
            Design: Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys. Extremely suitable for extreme harsh environments.
            RFI Protection > 20 V/m up to 1000 MHz
            Dimensions: 5.91 x 1.65 x 1.06 in.
            Certifications: IP65 Water Resistant
            Manufacturer's Warranty: 5-Year Limited Product Warranty

            Downloads:


            ROS-AC-S43

            This advanced anti-vandal, 500-user standalone controller is an exceptionally robust metallic unit with a highly sensitive piezoelectric keypad, suitable for PIN codes access requirements. This mullion model, with its rugged metal body and no moving parts, is ideal for high traffic and extremely harsh environments. The model is fully-sealed, epoxy-filled, and has advanced programming options, as well as flexible operation modes. The BL-D40 alarm, chime and doorbell enunciator/strobe unit as well as the Push-to-Exit buttons can be interfaced with the unit.

            Features

            • 500 PIN users
            • Smooth attractive design, with anti-vandal casing
            • Highly-sensitive piezoelectric metal keys
            • 3 operational security levels can be selected with special PIN codes
            • Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts
            • 2 tri-colored LEDs and integral sounder for programming and operation
            • Wide range of low voltage AC/DC power input

                      Specifications:

                      Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
                      16 to 24 VAC, from a transformer
                      Input Current: Standby: 35 mA, at 12 VDC
                      Maximum: 90 mA, at 12 VDC
                      Relay Outputs: Lock Strike: 3 A, N.O. and N.C.
                      Auxiliary: 3 A, N.O. and N.C.
                      Tamper: Optical back tamper sensor
                      Inputs: REX: N.O. Dry Contact
                      Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes
                      Capacity: 500 users, single / dual code each
                      Keypad:

                      2x6 keys for local programming and 4- to 8-digit PIN codes entry

                      User levels:
                      Normal, Secure, Master
                      Security Modes: Normal, Bypass, Secure
                      Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
                      Two tri-color LED indicators, built-in sounder
                      Design: Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys. Extremely suitable for extreme harsh environments.
                      RFI Protection > 20 V/m up to 1000 MHz
                      Dimensions: 5.91 x 1.65 x 1.06 in.
                      Certifications: IP65 Water Resistant
                      Manufacturer's Warranty: 5-Year Limited Product Warranty

                      Downloads:
