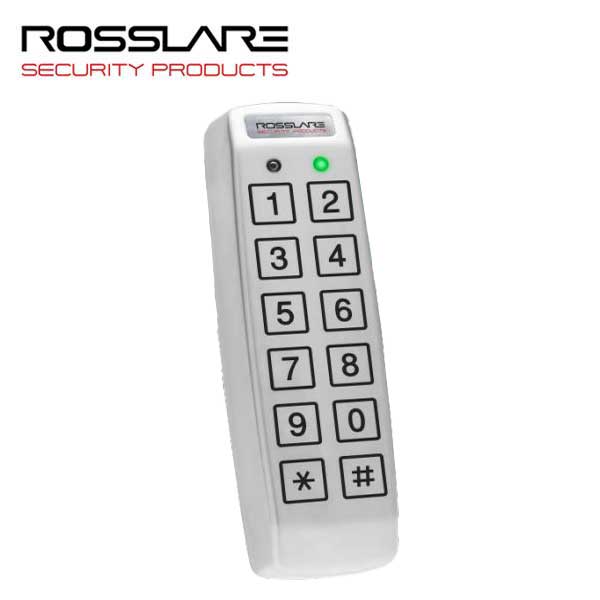

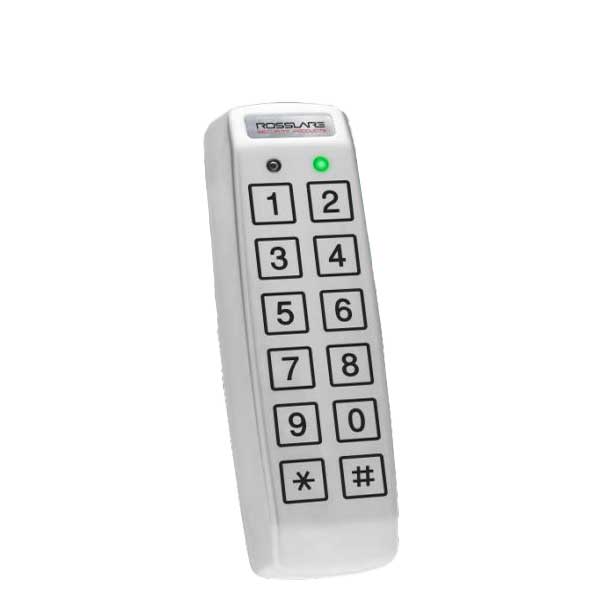

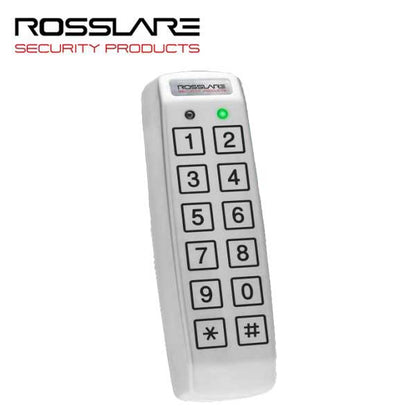

Rosslare - S55 - Piezoelectric PIN Reader - Anti-Vandal - 5-16 VDC - IP65
- Product SKU: ROS-AY-S55
- NSID: 25330
-
ROS-AY-S55
The AY-S55 has a mullion style rugged metal construction with piezoelectric keys, ideal for high traffic and harsh environments where PIN code credentials are needed. This model is epoxy-filled, designed to withstand extremely harsh outdoor environment, and has advanced programming options. This elegant yet robust model can easily interface with Rosslare’s or most third-party controllers. The AY-S55 is compatible with a variety of Rosslare's access controllers, as well as with many third party access control systems.
Features
- Supports 4-digit to 8-digit PIN credentials
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large metallic piezoelectric keypad with highly sensitive keys
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu system based on keypad, LED and sounder indicators
- Back optical tamper detection output
- Door bell feature ('*' key), when operated with Rosslare controllers
- 8 Selectable PIN transmission modes
- LED control
- Programmable Facility code
- Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
Specifications:
| Operating Voltage Range: | 5–16 VDC, from a regulated power supply |
| Standby Input Current: | 30 mA |
| Maximum Input Current: | 120 mA |
| LED Control Input: | Dry Contact, N.O. |
| Tamper Output: | Open collector, active low, max. sink current 32 mA |
| Keypad: | 2x6 Keys for PIN codes entry and local programming Doorbell key ('*') function (with Rosslare controllers only |
| Facility Code: |
Programmable |
| PIN Code Formats: | 8 selectable formats, from single-digit to 8-digit PIN codes, including: - Wiegand 6-Bit and 8-Bit, nibble and parity bit options, optional Rosslare format - 1–5 keys, fixed 4 keys and 6 keys BCD with Facility code, Wiegand 26-Bit - 2x6 matrix single key - 1 to 8 keys BCD, Clock & Data |
| Audio/Visual: | Two tri-color LED indicators, Built-in sounder |
| Design: | Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys, no moving parts. Highly suitable for extremely harsh environments. |
| RFI Protection: | > 10 V/m up to 1000 MHz |
| Device Certifications: |
IP65 |
| Dimensions: | 5.9 x 1.7 x 1.1 in. |
| Product Warranty: | 5-Year Limited Product Warranty |
